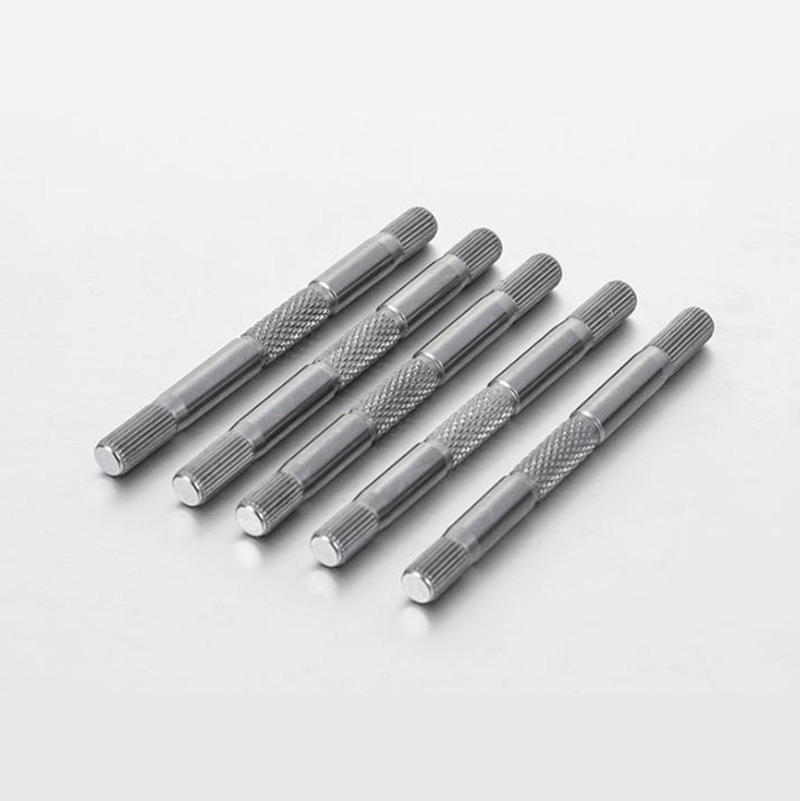

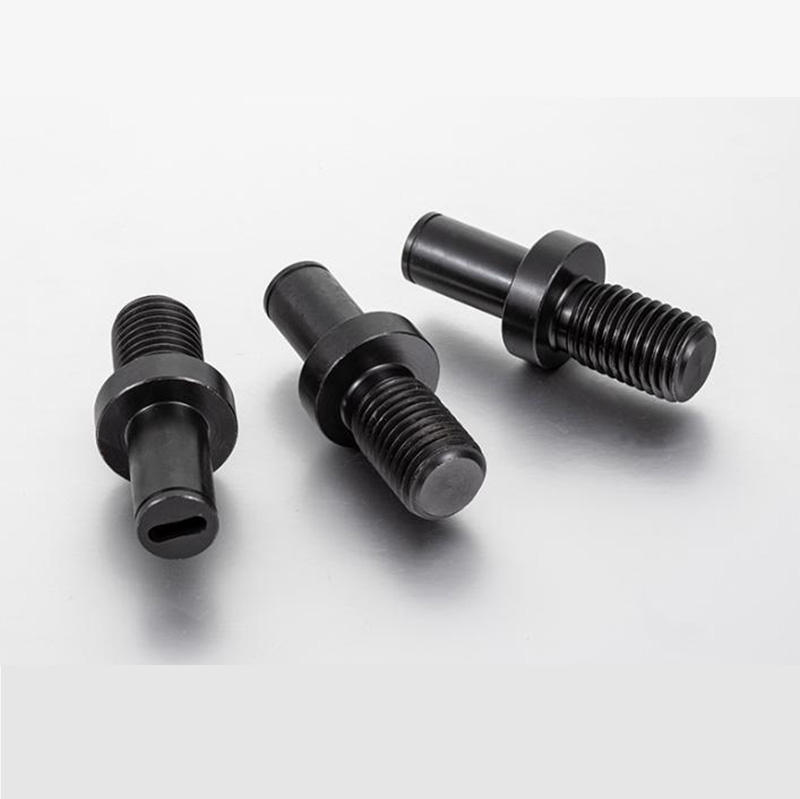

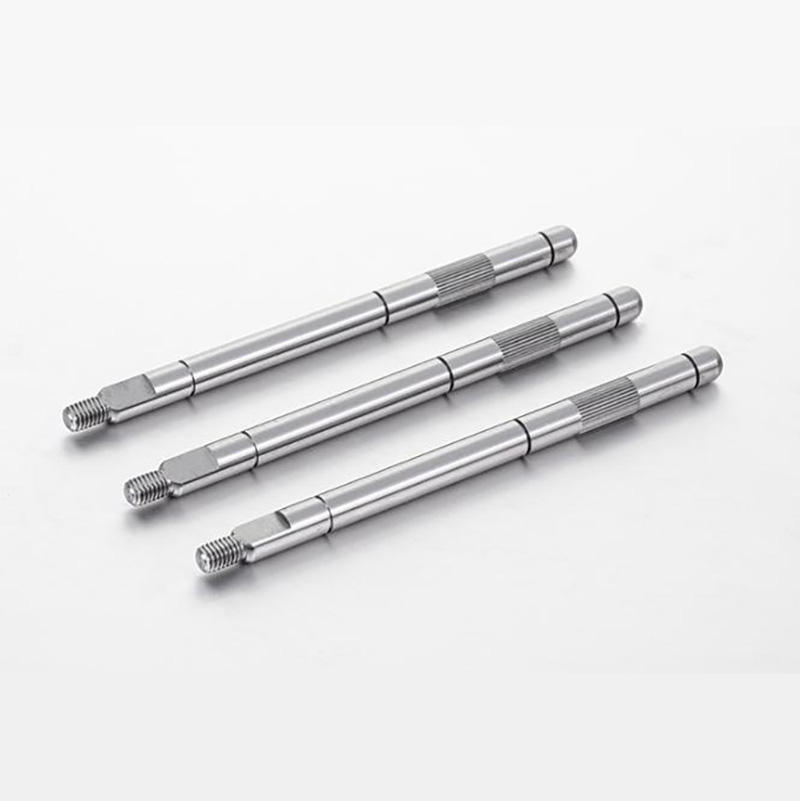

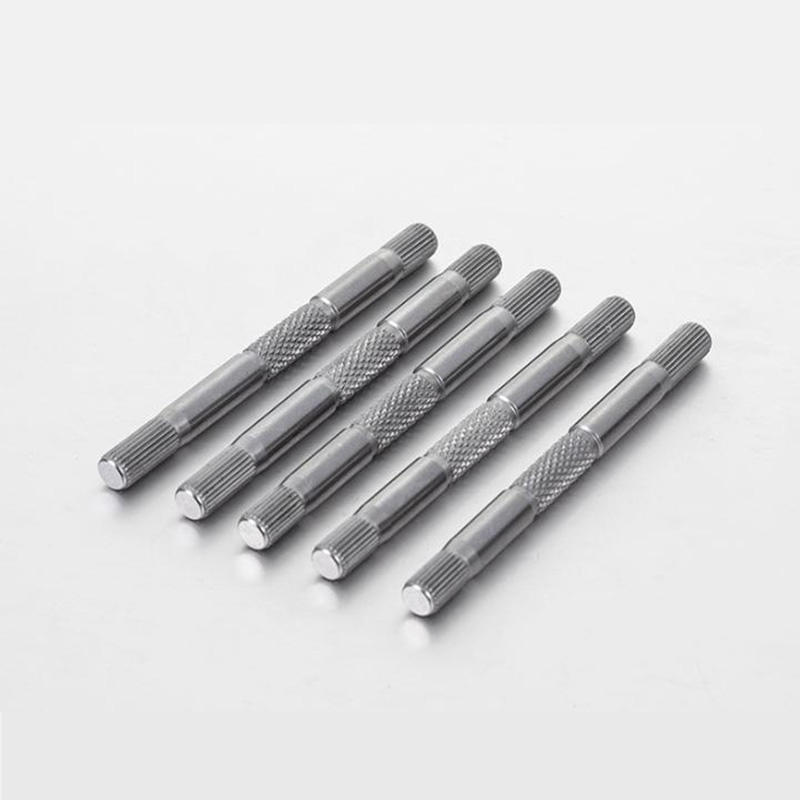

Agricultural Machinery Parts Shaft for Tractor Parts and Agricultural Machine Max.1000mm Diameter 1.2mm~100mm

NumberItemSpecification1MaterialCarbon steel, stainless steel, steel:45#, 20#,40Cr, 3Cr13, 4Cr13, 9Cr18, 302, 303, 304, 316, GCr15 etc. or as per customer'srequirement.2Diameter1.2mm~100mm, tolerance:0.002mm3LengthMax.1000mm4Roundness0.0005mm5 Run out0.005mm6RoughnessRa0.04,Ry0.47HardnessHRC +/-......

Send Inquiry

Product Description

Number	Item	Specification
1	Material	Carbon steel, stainless steel, steel:45#, 20#,40Cr, 3Cr13, 4Cr13, 9Cr18, 302, 303, 304, 316, GCr15 etc. or as per customer's requirement.
2	Diameter	1.2mm~100mm, tolerance:0.002mm
3	Length	Max.1000mm
4	Roundness	0.0005mm
5	Run out	0.005mm
6	Roughness	Ra0.04,Ry0.4
7	Hardness	HRC +/-2
8	Heat treatment	Point hardening(high frequency), quench hardening, carburizing
9	Surface treatment	Zinc plating, phosphating, nigrescence, chrome plating, nitriding, nickel plating, passivating etc.
10	OEM service	Providing us the drawing with detail information.
11	Package	PE bags or blister box inside and outer standard carton, plywood case. According to customer's requirements.

Advantages of Agricultural Machinery Driveshafts

Efficient power transmission: Driveshafts are able to efficiently transmit mechanical power (torque and speed) from one point to another. This ensures that the energy generated by the tractor engine or power take-off (PTO) is effectively utilized by the working parts of the agricultural machinery, minimizing energy losses. Durable and strong: Agricultural machinery driveshafts are typically made of high-strength and often heat-treated alloy steels. They are carefully designed to withstand continuous heavy loads, sudden shock loads (such as hitting rocks during tillage), vibrations, and abrasive environments (dust, dirt, moisture). This rugged construction ensures a long service life and reliable operation of the driveshaft in harsh field environments. Variety of designs and functions: Driveshafts come in many forms (solid, hollow, splined, stepped, telescopic) and are often integrated with other components such as universal joints, gears, and bearings. This versatility allows them to be designed for specific functions, such as adjusting for angular misalignment, changing length, or driving multiple components. Precision and stability: Well-designed shafts, especially those with splined connections, ensure precise alignment and minimal backlash in the drivetrain. This helps improve smoothness of operation, reduce noise, and extend the life of connected components such as gears and bearings. Critical to machine function: Without shafts, most mechanical farm implements simply would not work. They are the vital conduit for transmitting motion and power to tools such as blades, augers, fans, and baling mechanisms. Load-carrying capacity: In addition to transmitting power, many shafts, such as half shafts, are designed to withstand large static and dynamic loads, supporting the weight of the machinery and any carrying or pulling implements.

Applications of drive shafts in agricultural machinery 1. Power take-off (PTO) and drivetrain Connecting tractor and implement: This is the most common application. The PTO drive shaft (commonly called a cardan shaft or universal joint shaft) connects the tractor's PTO stub shaft to the implement's input shaft, allowing power to be transmitted even if the tractor and implement are at different angles or distances. These drive shafts often have splines and telescoping sections to allow for axial movement and angular misalignment. Internal implement drive: Inside the implement, auxiliary shafts distribute power from the main input shaft to the various working parts. 2. Drivetrain and Axle Shafts Tractors: Axle shafts: are critical in transmitting engine power to the wheels, enabling the tractor to move and provide traction. They also bear the weight of the tractor and all of its attached implements, which is particularly important on uneven terrain. Driveshaft: An internal shaft within a tractor's gearbox that transfers power between gears to achieve different speed and torque ratios. Self-propelled harvesters (e.g., combines, forage harvesters): Drive shafts within the machine transfer engine power to the wheels to drive the propeller, and to the harvesting and processing mechanisms. 3. Implement working mechanisms Rotary tillers/rototillers: The drive shaft drives the rotating teeth, which break up and aerate the soil. Mowers (rotary mowers, flail mowers): vertical or horizontal shafts drive cutting blades or flails. Hay balers: shafts drive the pick-up mechanism, compression plunger, and knotting/winding system. Combine harvesters: shafts are integral to driving the cutter blades, feeder box, threshing drum/rotor, cleaning fan, and various augers and conveyors. Grain augers and conveyors: shafts drive augers or conveyor belts for conveying grain. Fertilizer spreaders: shafts drive rotating disks or agitators for even fertilizer application. Feed mixers: shafts drive mixing augers or paddles for mixing feed ingredients. Diggers: vertical shafts drive digging augers. 4. Steering system Steering shaft: In tractors and other agricultural vehicles, the steering shaft connects the steering wheel to the steering gearbox or linkage, allowing directional control. The steering shaft often contains a universal joint to accommodate different angles.

Production Flow Chart

Click here for more details!

Please click on the photos below to visit their websites.

Hangzhou EVER POWER Co., Ltd. was established in 2006. With forward-looking decisions, technological roots, and specialized manufacturing, the company has developed rapidly and become a professional and reliable agricultural machinery shaft manufacturer, specializing in the production of various types of precision shafts, hardware, die-castings, and high-end non-standard pneumatic components.

Manufacture Machine

Test Equipment

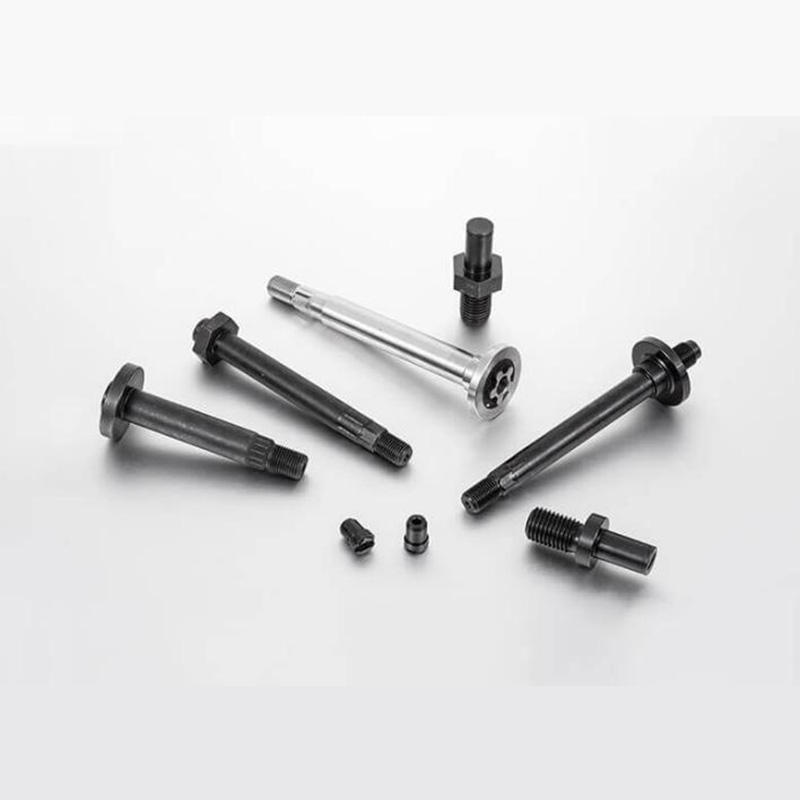

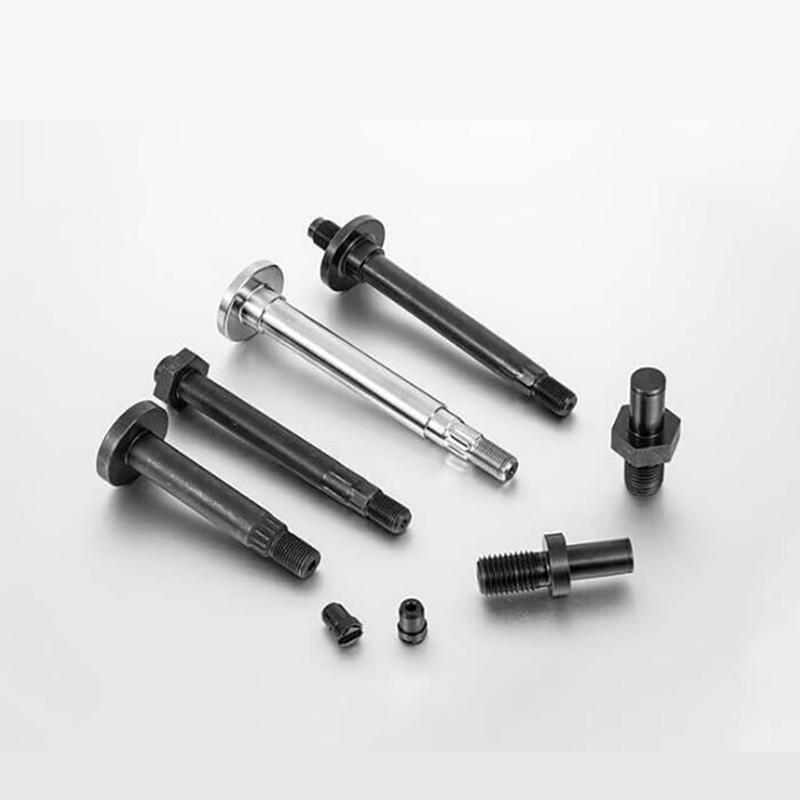

Products display

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
