Agricultural Lawn Mower Gearbox EP-RC51

Characteristic The gearbox of a mower driven by a hydraulic motor is a new type of gearbox independently developed by the ever-power machinery factory according to the requirements of customers. This mower is suitable for various hydraulic motors. The input end face and input shaft can select the co......

Send Inquiry

Product Description

Characteristic

ITEM	EP-rc51
Ratio	1:1.47/1:1.93
Teeth	22/15 29/15
Module	5.08 /4.0
Power(HP)	30
Rated Input	540rpm
Input/Output Description	Spline /Taper spline
Weight(N.W)	29KG

Equipping your rotary cutter with a quality gearbox ensures smooth operation and improved performance. Our mission is to provide you with the durable transmissions you need to optimize your working time! Each gearbox is equipped with high-speed ball bearing units, as well as heat-treated gears and shafts to ensure long service life. Our gearboxes are sized to industry standards. All our gearboxes are shipped dry and require lubricating oils that meet the manufacturer's standards. Additionally, each gearbox includes a turret mounting nut.

The gearbox of a mower driven by a hydraulic motor is a new type of gearbox independently developed by the ever-power machinery factory according to the requirements of customers. This mower is suitable for various hydraulic motors. The input end face and input shaft can select the corresponding hydraulic motor according to the customization of customers. The shape of the input surface is diamond four threaded hole connection, double threaded hole connection, square four threaded hole connection,rectangular spline, involute spline, single key, and so on.

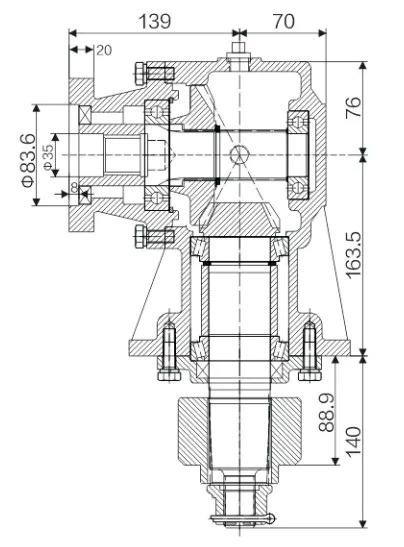

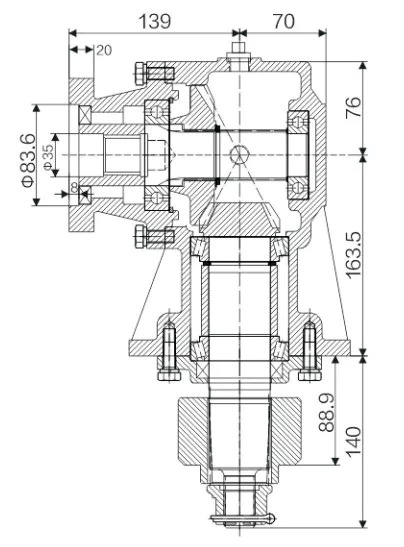

The gearbox is connected to the body of the mower with diameters of 133 mm, 17 mm, and 171.2 mm
The gearbox and the cutter holder of the mower are connected by the number of teeth of the conical involute spline, and the diameter pitch is 5 / 10 and 4 / 8 according to the user's requirements.

Agricultural Gearbox Production Workshop
1. CNC Workshop: a series of high precision CNC, including Japanese Okuma CNC and other vertical and horizontal CNC.
2. Gear Hobbing Workshop: High-Speed 5-axis linkage digital-controlling gear hobbing machines, and the precision reaches GB grade 6.
3.Gear Teeth Inserting Workshop:KS5150,YKS5132,YKS5120A,YSL5120
4. Gear Teeth shaving cutters grinding machine: Italian S400 GS gear teeth shaving cutters grinding machine

We are a gearbox manufacturer specializing in gearboxes for agricultural machinery
Our aim is to provide tailor-made solutions for the market and customers, whether it is a single product or a complete set of equipment.
Markets, applications, and customers are different, but Hongye has a unique philosophy to guide the latter to success.
For any questions or feedback from customers, we will respond patiently and meticulously in a timely manner.
We will promptly reply to any inquiries from customers with the most professional and reasonable price.
For any new product of customers, we will communicate with customers professionally, listen to their opinions, and provide useful suggestions for developing the best products. For any order from customers, we will complete it with the fastest speed and the best quality.
We take the time to address each issue, no matter how mundane it may seem to you. We will always serve you. You will find that we speak your language and understand your technical issues. That's why we have been able to successfully work with clients from nearly 30 countries over the years.
The company takes quality as its life, and has established the strategic goal of "high standards, high precision, and zero
defects". Based on the work style of "integrity and pragmatism, perseverance, teamwork, and achievement of excellence", we sincerely invite prospective customers from all over the world to visit and create a better future. future.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
