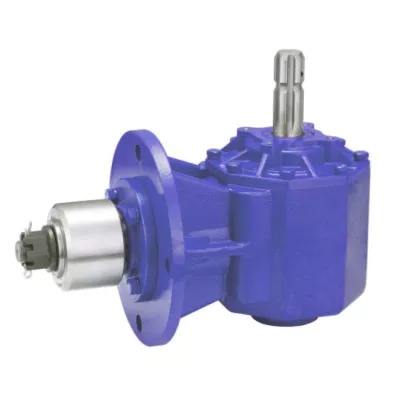

Agricultural Lawn Mower Gearbox EP-LF211

Characteristic The gearbox is used for lawn mower transmission, our normal standard from 30 HP-90 HP, we accept custom-made. We are professionals in the agricultural gearbox field with more than 15 years of experience.This series gearbox is self-developed. With its characteristics of high universali......

Send Inquiry

Product Description

Characteristic

The gearbox is used for lawn mower transmission, our normal standard from 30 HP-90 HP, we accept custom-made. We are professionals in the agricultural gearbox field with more than 15 years of experience.
This series gearbox is self-developed. With its characteristics of high universality, simple structure, good performance, etc, it is widely used in garden machines and other agricultural machines.

The agricultural gearbox is the main mechanical component of the kinematic chain of agricultural machines. It is normally driven by the tractor power take-off via the PTO shaft and the gearbox drives. The operating torque can also be transmitted to the gearbox by hydraulic motors or belt pulleys, in addition to chain gears.
Agricultural gearboxes always have one input shaft and at least one output shaft. If these shafts are positioned at 90° to each other, the gearbox is an ORTHOGONAL ANGLE gearbox or more commonly called a right-angle gearbox.
Tractors are used in agriculture to mechanize a large variety of tasks by delivering a high tractive effort at slow speeds. The slow operation speeds are essential for the driver since they provide better control of the performed tasks. Nowadays all types of tractors’ transmissions (manual, synchro-shift, hydrostatic drive, and glide shift) focus on the best performance and easy operation. Although every transmission has a different mechanism, they all employ transmission shafts to pass on the engine torque to the differential.

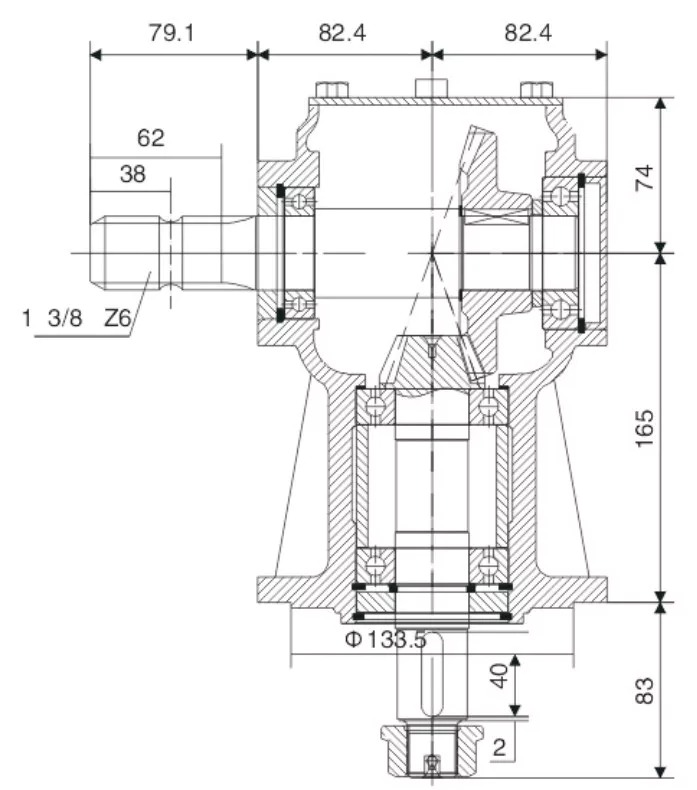

ITEM	EP-LF211
Ratio	1:2.83
Teeth	34/12
Module	3.36
Power(HP)	20
Rated Input	540rpm
Input/Output Description	1-3/8 Z6 Optic axis
Weight(N.W)	14.5KG

* All gearboxes are supplied without oil.
* First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
* Contact us for power at a different RPM.

Application of Lawn Mower Gearbox

Usage Scenario of Lawn Mower Gearbox

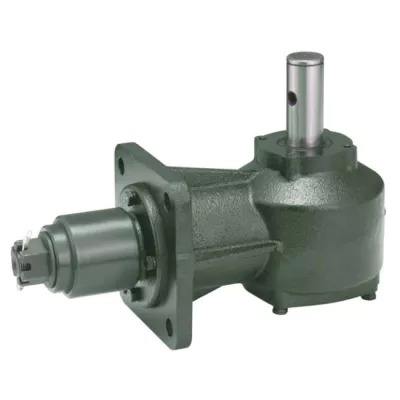

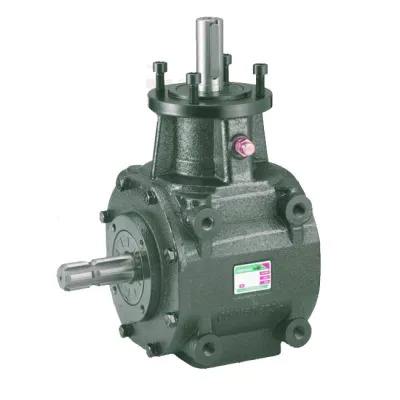

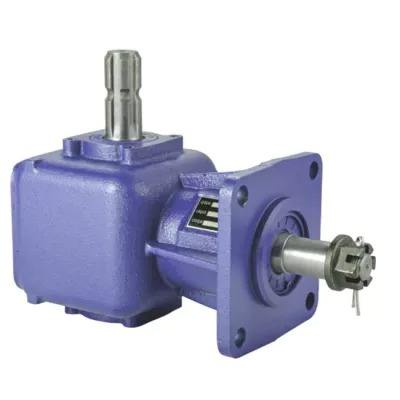

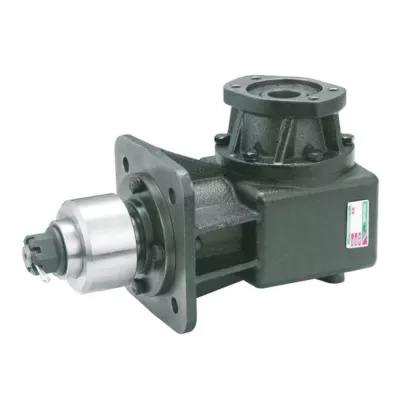

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop
1. CNC Workshop: a series of high precision CNC, including Japanese Okuma CNC and other vertical and horizontal CNC.
2. Gear Hobbing Workshop: High-Speed 5-axis linkage digital-controlling gear hobbing machines, and the precision reaches GB grade 6.
3.Gear Teeth Inserting Workshop:KS5150,YKS5132,YKS5120A,YSL5120
4. Gear Teeth shaving cutters grinding machine: Italian S400 GS gear teeth shaving cutters grinding machine

We are a gearbox manufacturer specializing in gearboxes for agricultural machinery
Our aim is to provide tailor-made solutions for the market and customers, whether it is a single product or a complete set of equipment.
Markets, applications, and customers are different, but Hongye has a unique philosophy to guide the latter to success.
For any questions or feedback from customers, we will respond patiently and meticulously in a timely manner.
We will promptly reply to any inquiries from customers with the most professional and reasonable price.
For any new product of customers, we will communicate with customers professionally, listen to their opinions, and provide useful suggestions for developing the best products. For any order from customers, we will complete it with the fastest speed and the best quality.
We take the time to address each issue, no matter how mundane it may seem to you. We will always serve you. You will find that we speak your language and understand your technical issues. That's why we have been able to successfully work with clients from nearly 30 countries over the years.
The company takes quality as its life, and has established the strategic goal of "high standards, high precision, and zero
defects". Based on the work style of "integrity and pragmatism, perseverance, teamwork, and achievement of excellence", we sincerely invite prospective customers from all over the world to visit and create a better future. future.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
