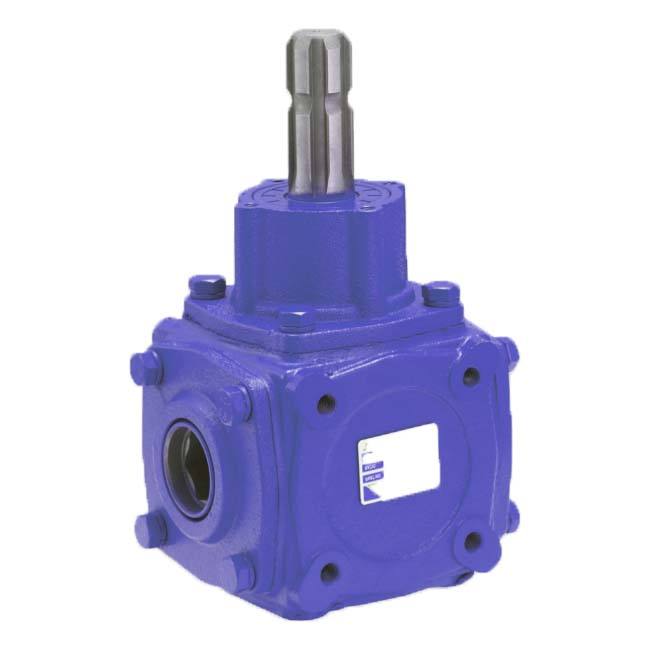

Agricultural Lawn Mower Gearbox EP-LF205

Characteristic New lawnmower Gearbox, LF-205. The gearbox ratio is 1:1.92. The input shaft is 1-3/8″ 6 spline. The 12 spline output shaft has tapered splines, bushing must be ordered separately (12 spline bushing A-U920580500). The mounting pattern is 171.5 mm. The gearbox is rated at 30 hp at 540 r......

Send Inquiry

Product Description

Characteristic

New lawnmower Gearbox, LF-205. The gearbox ratio is 1:1.92. The input shaft is 1-3/8″ 6 spline. The 12 spline output shaft has tapered splines, bushing must be ordered separately (12 spline bushing A-U920580500). The mounting pattern is 171.5 mm. The gearbox is rated at 30 hp at 540 rpm and has a CCW (Counterclockwise) rotation. Fits Comer Rotary Cutters.The output shaft has tapered splines, bushing must be ordered separately. (12 spline bushing: U0135700000). The mounting pattern is 171.5mm.

ITEM	EP-LF205
Ratio	1:1.93/1:1.46
Teeth	23/12 22/15
Module	5.0 / 5.0
Power(HP)	30
Rated Input	540rpm
Input/Output Description	1-3/8 Z6 Optic Axis Taper Spline
Weight(N.W)	19KG

In today's world, every farmer or rancher needs the right tools to do their work. Most importantly, they need a toolkit containing high-quality parts and specially manufactured durable ranching tools. At rancher supply, we provide a range of farm equipment and components that daily farmers can complete various jobs, projects, and tasks on the ranch. We are pleased to show you our new gearbox, which is provided by the rancher supply department and is the home of ranch tools and agricultural equipment. 40 horsepower, different. Our powerful new gearbox is the perfect shear bolt substitute for Borg Warner, Auburn, Omni, and Patico light rotary cutting machines. The transmission is designed for you with a load of up to 40hp and can provide you with flexible,efficient, and accurate cutting every time. The gearbox has a multi-functional 1:1.47 acceleration gear ratio. You can use the gearbox on rotating tools with a diameter of more than 5 feet and maintain the same accuracy level every time you cut! This special gearbox has a blade bracket mounting nut and a solid cotter pin, which can fix the blade in the appropriate position. It is durable and durable. Each cutting can bring you a greater harvest. In addition, you will also find that high-speed ball bearing units, gears, and shafts are subjected to high-temperature treatment to ensure the service life of replacement products for up to several years. When you need to replace an old or damaged rotary cutter gearbox, the rancher supply 40hp shear bolt gearbox should be your first choice. Think about it. Why build a new system when you can simply replace the gearbox at an affordable price without leaving you behind? Don't forget that this product includes 5 replacement safety bolts, which brings great value to your purchase. This replacement gearbox is compatible with a variety of rotary cutting machines.

Fits the following makes and models
Comer FINISHING MOWER: LF-205-J
Cross References:
Replaces: COMER
U9.135.808.10, U9.205.808.00 , U913580810 , 9.135.029.00 , 913502900

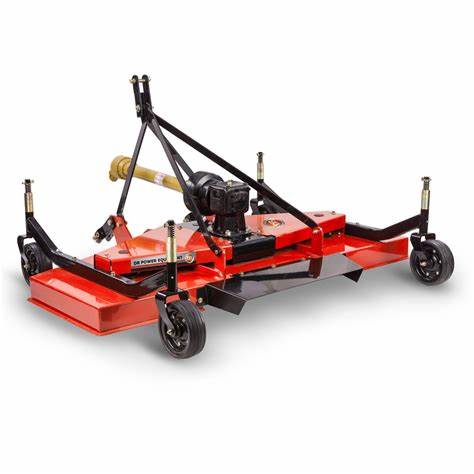

Usage Scenario of Lawn Mower Gearbox

We Also Supply PTO Shafts

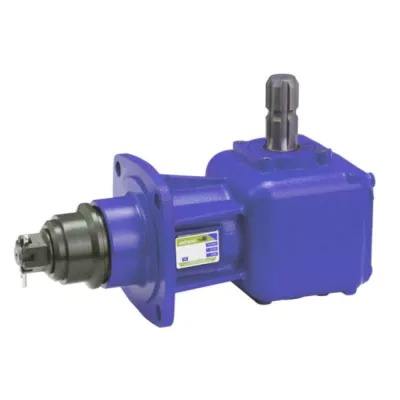

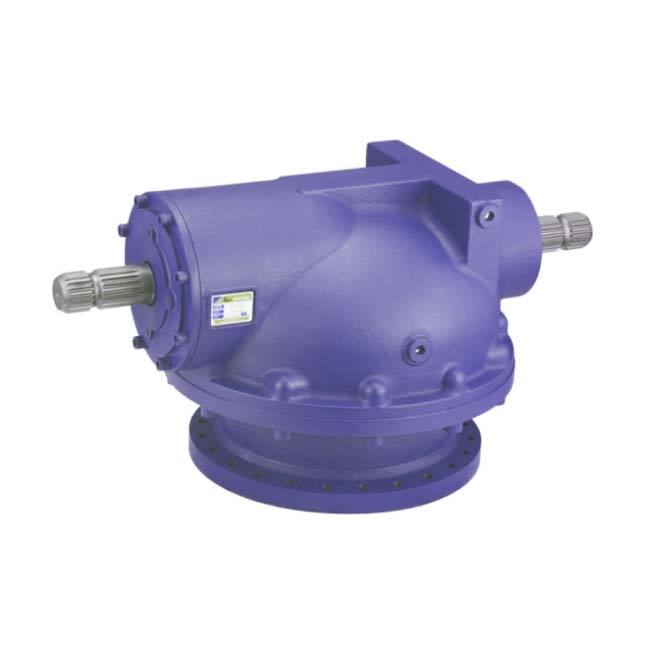

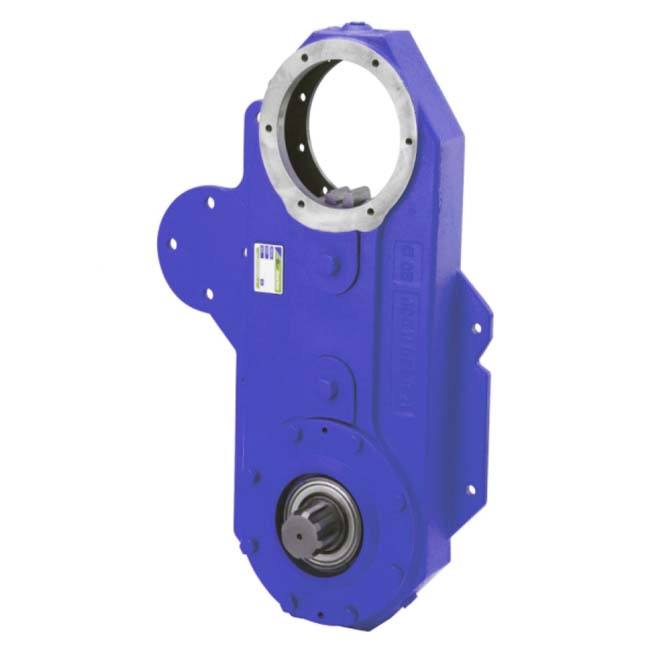

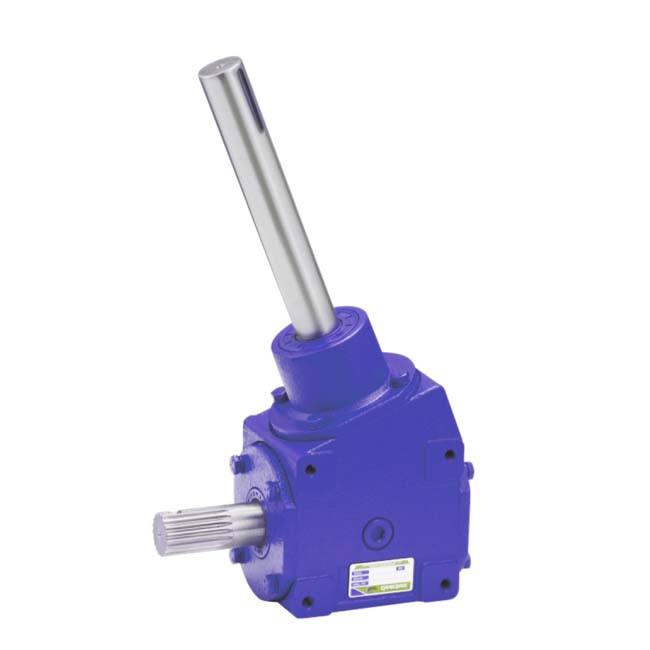

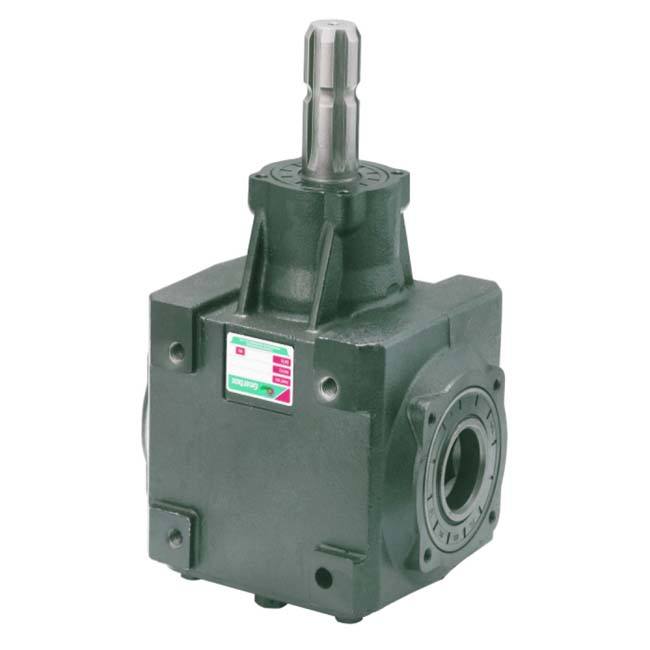

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop
1. CNC Workshop: a series of high precision CNC, including Japanese Okuma CNC and other vertical and horizontal CNC.
2. Gear Hobbing Workshop: High-Speed 5-axis linkage digital-controlling gear hobbing machines, and the precision reaches GB grade 6.
3.Gear Teeth Inserting Workshop:KS5150,YKS5132,YKS5120A,YSL5120
4. Gear Teeth shaving cutters grinding machine: Italian S400 GS gear teeth shaving cutters grinding machine

We are a gearbox manufacturer specializing in gearboxes for agricultural machinery
Our aim is to provide tailor-made solutions for the market and customers, whether it is a single product or a complete set of equipment.
Markets, applications, and customers are different, but Hongye has a unique philosophy to guide the latter to success.
For any questions or feedback from customers, we will respond patiently and meticulously in a timely manner.
We will promptly reply to any inquiries from customers with the most professional and reasonable price.
For any new product of customers, we will communicate with customers professionally, listen to their opinions, and provide useful suggestions for developing the best products. For any order from customers, we will complete it with the fastest speed and the best quality.
We take the time to address each issue, no matter how mundane it may seem to you. We will always serve you. You will find that we speak your language and understand your technical issues. That's why we have been able to successfully work with clients from nearly 30 countries over the years.
The company takes quality as its life, and has established the strategic goal of "high standards, high precision, and zero
defects". Based on the work style of "integrity and pragmatism, perseverance, teamwork, and achievement of excellence", we sincerely invite prospective customers from all over the world to visit and create a better future. future.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
