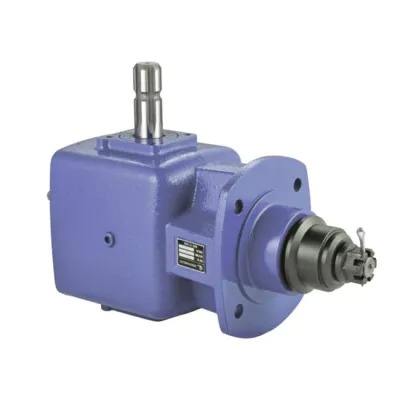

Agricultural Lawn Mower Gearbox EP-55

Characteristic 1. Large output torque2. Safe, reliable, economical, and durable3. Stable transmission, quiet operation4. High carrying ability5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy t......

Send Inquiry

Product Description

Characteristic

1. Large output torque
2. Safe, reliable, economical, and durable
3. Stable transmission, quiet operation
4. High carrying ability
5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type
6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.
7. Form of installation: The position to be installed is not limited.
8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.
9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.
10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.
11. Our gearbox has reached the advanced international level and can replace the same kind of products imported.
* Durable Protection: Fits most light-duty rotary cutters that require shear pin protection, and includes 5 replacement shear bolts to add to your rotary kit.
* Fits Models: RD5, RD6, RZ160, RZ60 – Gearbox Assembly P/N 00786192. Razorback Series BH4, BH5, BH6, BH4-2, BH5-2, BH6-2. BMB 1080, BMB 10300, Hardee C1378, Mohawk 14-500, Rhino 0711050100, Rhino 71105, Omni 250123, Omni 250001, SE Big Ox 1970,Sidewinder 26272, and Others
* Industry-standard 1-3/8" smooth diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.57" diameter 12 tapered spline output shaft allow fitment to most light, standard, and medium-duty rotary cutters.
* 1:1.47 Ratio for use on 5' and larger diameter rotary cutters
* Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. Four-bolt mounting matches industry standards. Each gearbox includes a blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.

ITEM	EP-55
Ratio	1:1.6
Teeth	15/24
Module	6.0
Power(HP)	50
Rated Input	540rpm
Input/Output Description	1-3/8 Z6 Cone base adequilate spline shaft
Weight(N.W)	28.7KG

Material	HT250 for housing
		20CrMnTi for gear shaft
		Aluminum for plate

Ever-power lawn mower gearbox is used for lawn mower transmission, our normal standard from 30HP-90HP, we accept custom-made.We are professionals in the agricultural gearbox field with more than 20 years of experience. We can offer you not only gearboxes but also designing solutions.

We Also Supply PTO Shafts
If you also need the PTO axis, click here:https://hzpt.com/agricultural-pto-shaft/

Customized Service of Agricultural Gearbox
Our Gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request

Usage Scenario of Lawn Mower Gearbox

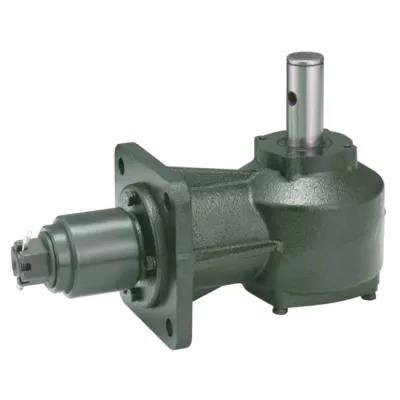

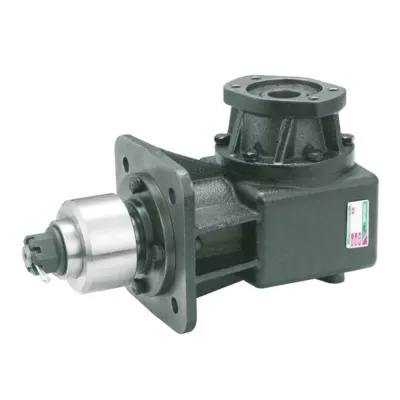

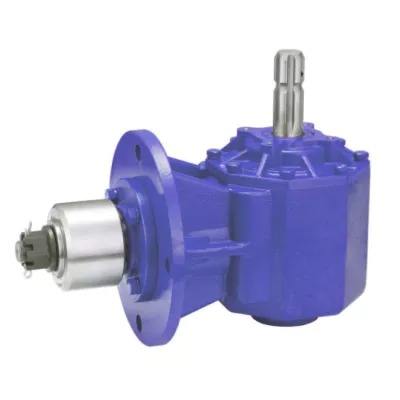

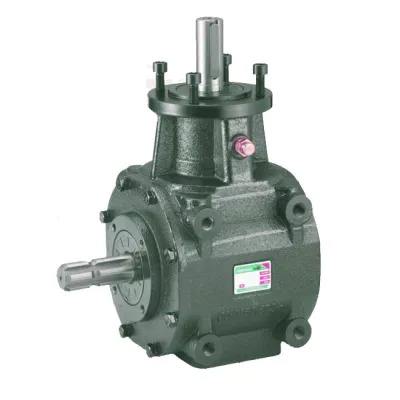

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop
1. CNC Workshop: a series of high precision CNC, including Japanese Okuma CNC and other vertical and horizontal CNC.
2. Gear Hobbing Workshop: High-Speed 5-axis linkage digital-controlling gear hobbing machines, and the precision reaches GB grade 6.
3.Gear Teeth Inserting Workshop:KS5150,YKS5132,YKS5120A,YSL5120
4. Gear Teeth shaving cutters grinding machine: Italian S400 GS gear teeth shaving cutters grinding machine

We are a gearbox manufacturer specializing in gearboxes for agricultural machinery
Our aim is to provide tailor-made solutions for the market and customers, whether it is a single product or a complete set of equipment.
Markets, applications, and customers are different, but Hongye has a unique philosophy to guide the latter to success.
For any questions or feedback from customers, we will respond patiently and meticulously in a timely manner.
We will promptly reply to any inquiries from customers with the most professional and reasonable price.
For any new product of customers, we will communicate with customers professionally, listen to their opinions, and provide useful suggestions for developing the best products. For any order from customers, we will complete it with the fastest speed and the best quality.
We take the time to address each issue, no matter how mundane it may seem to you. We will always serve you. You will find that we speak your language and understand your technical issues. That's why we have been able to successfully work with clients from nearly 30 countries over the years.
The company takes quality as its life, and has established the strategic goal of "high standards, high precision, and zero
defects". Based on the work style of "integrity and pragmatism, perseverance, teamwork, and achievement of excellence", we sincerely invite prospective customers from all over the world to visit and create a better future. future.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
