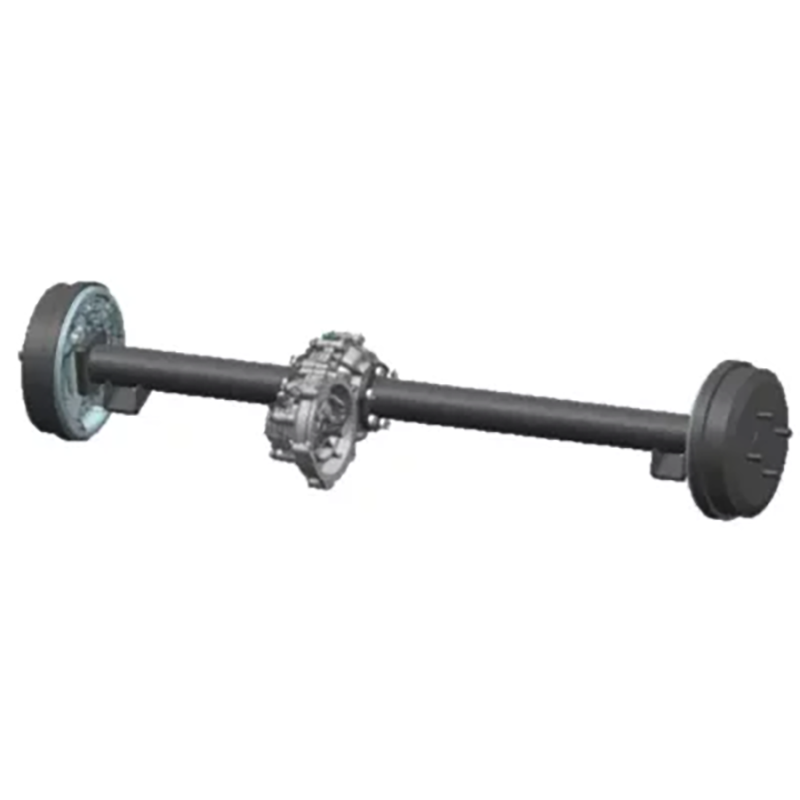

38.5kg EB02 Tricycle Rear Differential Axle Assembly for 3.5KW Electric Tricycle
Product FeaturesEB02 Rear Axle Assembly is currently used for the rear axle of 3.5KW electric tricyclesProduct PerformanceMax Input TorqueT max22N.mMax Input Rotation Raten max4500r/minCentre.to-centre SpacingA136mmGear RatioU10.088Application of rear axle assemblyWe can provide various modification......
EB02 Rear Axle Assembly is currently used for the rear axle of 3.5KW electric tricycles
Product Performance
Max Input Torque
T max
22N.m
Max Input Rotation Rate
n max
4500r/min
Centre.to-centre Spacing
A
136mm
Gear Ratio
U
10.088
Application of rear axle assembly
We can provide various modification solutions and have our own axle chassis modification factory. If you need to replace the original rear axle of the car, modify self-made dining cars, tricycles, four-wheeled vehicles, go-karts, forklifts, flatbed trucks, rail cars, trailers, and construction site material trucks, accessories can be provided
Input & Output Spline Parameters
Tooth system
Input internal spline
Output end internal spline
modulus
m
1
1
number of teeth
z
18
25
Pressure angle
a
20°
45°
the modification coefficient
x
0.8
0.1
Over Dimension & Weight
Weight(kg)
38.5
Length
1302
AxleTrack
352
Height
251
For more details, please click here to contact us!
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
