XK5025B/XK5030B Vertical Metal Working Cnc Knee-Type Milling Machine with Box Guideway

XK5025B/XK5030B Vertical metal working Cnc Knee-Type Milling MachineThe XK5025B/XK5030B CNC equipment is a three-axis machine tool controlled by a CNC system, and the spindle maintains high stiffness through gear transmission. This machine tool is equipped with face milling cutters, cylindrical mill......

Send Inquiry

Product Description

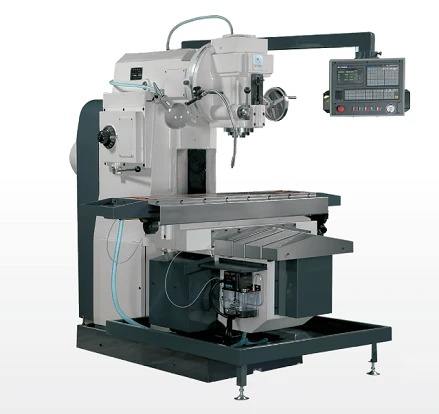

XK5025B/XK5030B Vertical metal working Cnc Knee-Type Milling Machine

The XK5025B/XK5030B CNC equipment is a three-axis machine tool controlled by a CNC system, and the spindle maintains high stiffness through gear transmission. This machine tool is equipped with face milling cutters, cylindrical milling cutters, side milling cutters, bevel milling cutters, and forming milling cutters, suitable for processing flat milling cutters, bevel milling cutters, slot milling cutters, and gear milling cutters on various workpieces. An operator can operate three machines simultaneously. Optional accessories such as turntable and indexing head are suitable for various processing. It is an ideal machine tool for processing technology, maintenance, instrumentation, and molds.

Item	Unit	XK6132	XK5025B	XK5030B	XK5328B
Worktable size	mm	320×1320	250×1100	300×1100	280×1270
T slot (N×W×D)	mm	3×18×80	3×14×63	3×14×63	3×16×63
Max. load bearing of worktable	kg	500	280	280	250
Travel of worktable (X/Y/Z)	mm	700/300/280	500/260/90	580/260/90	720/360/110
Spindle hole taper	mm	7:24 No.50	7:24 No.40	7:24 No.40	R8
Arbor diameter	mm	Φ22 Φ27 Φ32	/	/	/
Max. spindle quill travel	mm	\	90	90	100
Distance from spindle end to worktable surface	mm	110 ~ 390(spindle center)	70 ~ 430	70 ~ 430	40 ~ 480
Distance from vertical guideway to spindle center	mm	/	290	290	130 ~ 630
Distance from vertical guideway to worktalbe center	mm	285 ~ 585	160 ~ 420	160 ~ 420	220 ~ 580
Distance from spindle center to arm	mm	155	/	/	/
Spindle speed steps	strps	18	inverter	inverter	16
Spindle speed range	r/min	30 ~ 1500	200 ~ 2500	200 ~ 2500	80 ~ 5440
Main motor power	kw	7.5	4	4	2.2
Main motor rotating speed	r/min	960	5000	5000	1720
Feed speed range: Longitudinal X/Y/Z	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 1000
	mm/min	5 ~ 2000	5 ~ 2000	5 ~ 2000	5 ~ 1000
	mm/min	5 ~ 1000	5 ~ 800	5 ~ 800	5 ~ 400
Rapid feed speed range:Longitudinal X	mm/min	4000/3000/2000	3000/3000/1500	3000/3000/1500	3000/3000/1500
Positioning accuracy	mm/min	0.025/300	0.025/300	0.025/300	0.025/300
Re-positioning accuracy	mm	0.015	0.015	0.015	0.015
Machine dimension	mm	2245×1780×1920	1500×1470×1800	1500×1470×1800	1610×1600×2200
Machine weight	kg	3100	1800	1800	1500

The XK5030B Vertical Knee-Type Metal Cutting Machine offers several advantages and finds application in various industries. Here are some key advantages and applications of the XK5030B: 1. Versatility: The XK5030B is a versatile machine capable of performing a wide range of metal cutting operations. It can handle tasks such as milling, drilling, tapping, and boring, making it suitable for diverse machining applications. 2. Precision Machining: The machine is designed to deliver precise machining results. It offers accurate positioning and excellent repeatability, ensuring high-quality finished products. This makes it ideal for industries that require tight tolerances and precision machining, such as aerospace, automotive, and tooling manufacturing. 3. Compact Size: The XK5030B has a compact footprint, making it suitable for workshops and production facilities with limited space. Despite its small size, it retains the capabilities of a knee-type milling machine, offering efficiency and convenience. 4. Easy Operation: The machine is user-friendly and easy to operate. It features intuitive controls and a user-friendly interface, allowing operators to quickly set up and operate the machine with minimal training. This makes it suitable for both experienced machinists and beginners. 5. Cost-Effective Solution: The XK5030B offers a cost-effective solution for metal cutting applications. Its competitive pricing, combined with its versatility and precision, makes it an attractive choice for small to medium-sized businesses looking for reliable machining capabilities without breaking the budget. 6. General Metal Cutting Applications: The XK5030B is suitable for a wide range of metal cutting applications. It can be used for machining various workpieces, including flat surfaces, slots, and holes in materials like steel, aluminum, and other metals. It finds applications in industries such as general machinery manufacturing, automotive, and fabrication shops. In summary, the XK5030B Vertical Knee-Type Metal Cutting Machine excels in its versatility, precision, compact size, ease of operation, cost-effectiveness, and is commonly employed in industries requiring general metal cutting operations.

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

Optional accessories at extra cost(For conventional machines)

System and tool magazine

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
