WT-SL255 Metal Cnc Machining Center Price Industrial 5 Axis Cnc Machining Center Priceaccessories

Cradle type and extended type The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanismProduct ModelWT-SL255Servo motor (optional)β12i HF-154;β22i HF-204Panel SizeΦ255mmReduction Ratio1:120 ;1:180Disk ApertureΦ110mmMaximum Rotation Speed Of Worktable ......

Send Inquiry

Product Description

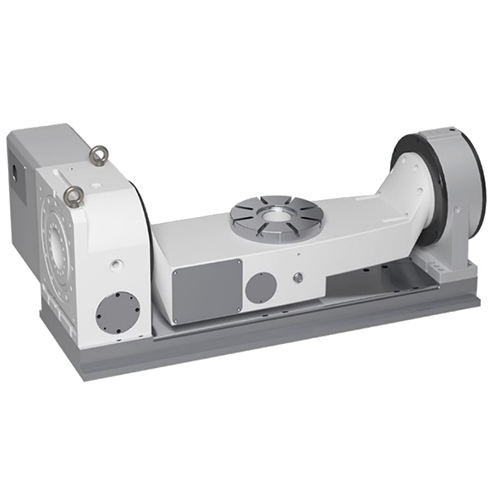

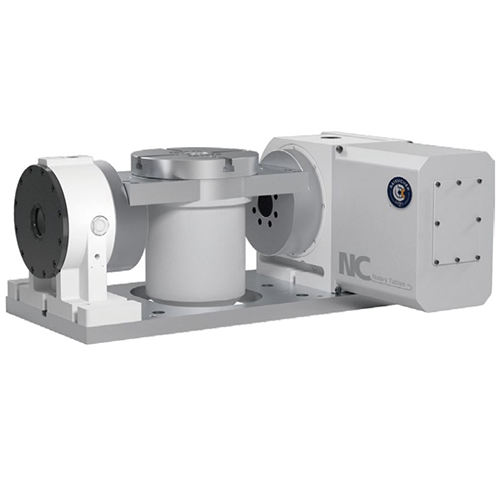

Cradle type and extended type

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism

Product Model	WT-SL255	Servo motor (optional)	β12i HF-154;β22i HF-204

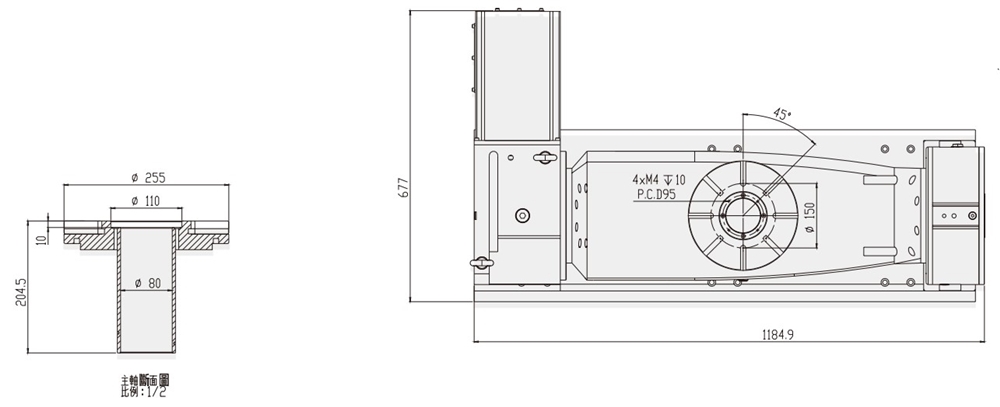

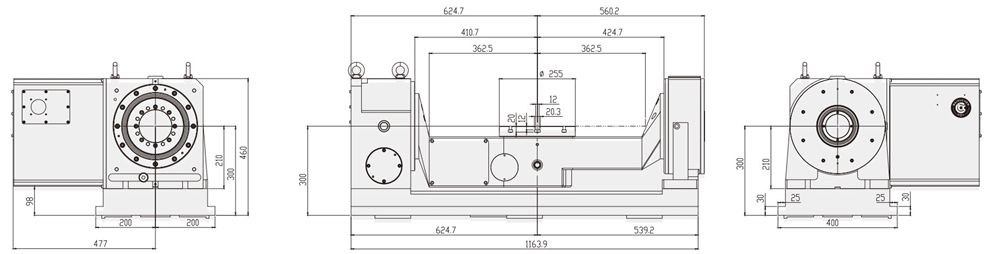

Panel Size	Φ255mm	Reduction Ratio	1:120 ;1:180
Disk Aperture	Φ110mm	Maximum Rotation Speed Of Worktable	25r.p.m ; 16.6r.p.m
Center Trough Hole	Φ80mm	Minimum Setting Angle	0.001°deg
Disk Height	300mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	18H7mm	Locking Method	35Kg/cm²; 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 31Kg/m
Net Weight (about)	600Kg	Allowable Cutting Force	80Kg.m ; 80Kg.m
Horizontal placement	150KG	Placement	100KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
