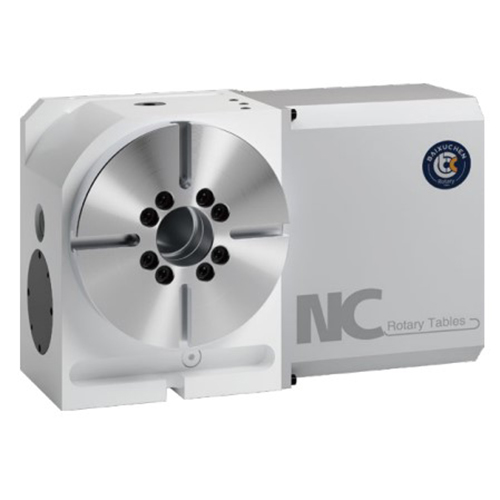

WT-210 Numerical Control Machine Cnc Machining Center Accessories

Large aperture design High segmentation accuracy high rigidity and high performanceHigh efficiency and strong braking structure systemProduct ModelWT-210Segmentation accuracy20 ″Disk DiameterΦ210mmRepeat positioning4 ″Center DiameterΦ55H7mmLocking Mode45kg.mSpindle HoleΦ50mmServo Motorβ8is;HF-104Cen......
Send Inquiry
Product Description
WT-210 Numerical Control Machine Cnc Machining Center Accessories
Large aperture design High segmentation accuracy high rigidity and high performance
High efficiency and strong braking structure system
Product Model
WT-210
Segmentation accuracy
20 ″
Disk Diameter
Φ210mm
Repeat positioning
4 ″
Center Diameter
Φ55H7mm
Locking Mode
45kg.m
Spindle Hole
Φ50mm
Servo Motor
β8is;HF-104
Center Height
160mm
Speed Reduction Ratio
1:72
T-Slot Width
12H7mm
Maximun Speed
55.5r.p.m
Positioning Button
18H7mm
Allowable Work Inertia
8.3kg.cm.sec2
Min lncrement
0.001°
Allowable Cutting Torque
18Kg.m
Weight(Without Motor)
70Kg
Vertical
80KG
Horizontal
160KG
Tailstock applied
160KG
WT-210 Numerical Control Machine Cnc Machining Center Accessories
WT-210 Numerical Control Machine Cnc Machining Center Accessories
WT-210 Numerical Control Machine Cnc Machining Center Accessories
WT-210 Numerical Control Machine Cnc Machining Center Accessories
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
WT-210 Numerical Control Machine Cnc Machining Center Accessories
