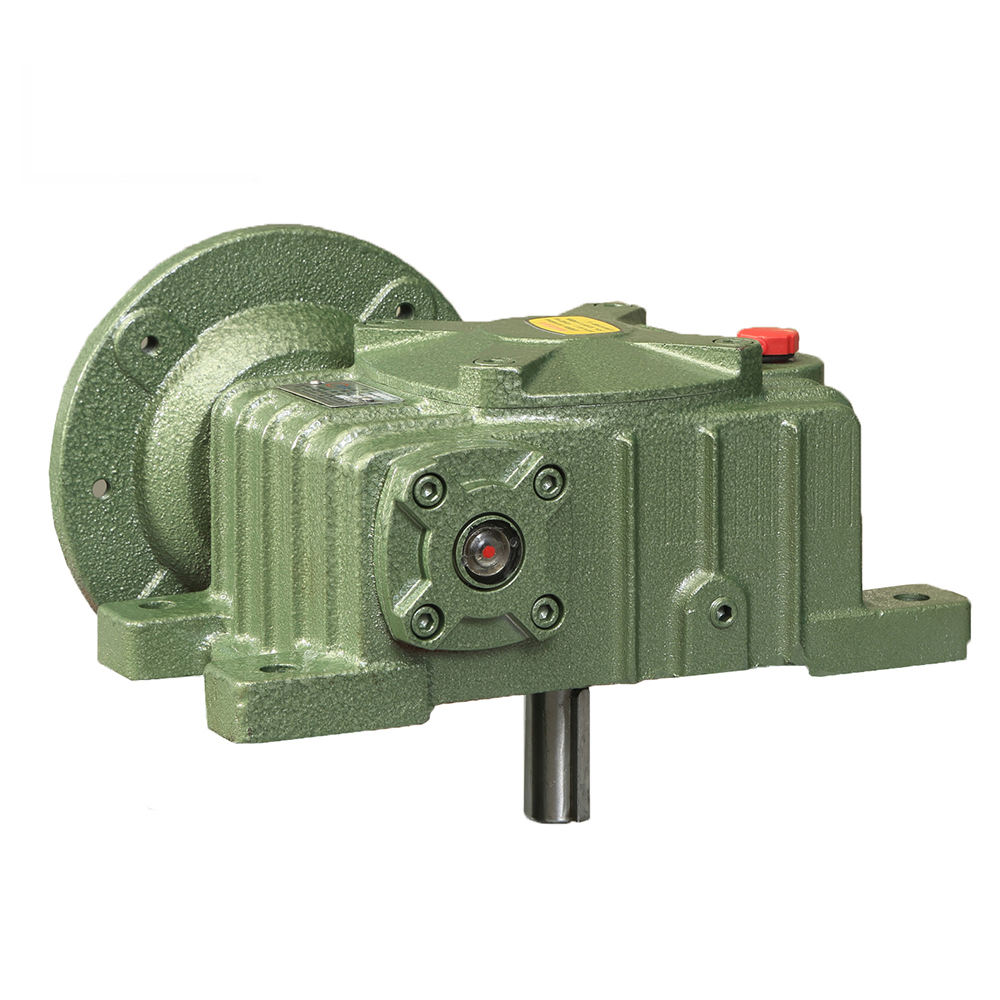

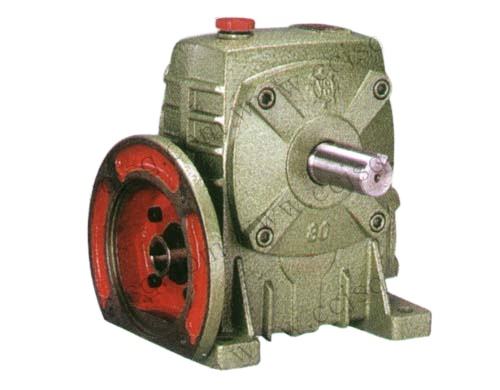

WP WPA Series Transmission Reverse Gear Motoredutor Speed Reducer Worm Variable Speed Gearbox

WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverag......

Send Inquiry

Product Description

FEATURES

●Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
●Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
●The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
●Higher requirements for lubrication and cooling.
●Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.

Type	Worm Gear Speed Reducer / Gearbox / Reductor
Model	WMRV 25/30/40/50/63/75/90/110/130/150/185
Color	Customized Color
Packing	Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage	Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange	IEC standard flange or customized dimensions
Housing Material	Aluminum&Cast iron
Size	11 sizes(WMRV25~WMRV185)
Power	0.06~22 KW
Nominal torque	≤2548 N.m
Ratio	5~100
Material	Housing: Die-Cast Iron cast
		Worm Gear-Copper-10-3#
		Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
		Shaft-chromium steel-45#
Usages	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.

HIGH QUALITY OUTPUT SHAFT
New standard axle, multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of reducer.

PRECISION BEVEL GEAR
20CrMn Ti material – low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, carburizing layer uniform.

HIGH QUALITY SHELL MATERIAL
The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.
