Worm gearbox GW30 FOR GREENHOUSE

MOTOR WORM GEARBOXES FOR GREENHOUSE GW30 CHAIN COUPLING

Gear Motor Reducer make use of drive systems of greenhouses and livestock houses, which has outstanding features and competitive price. As the professional gear motor manufacturer, the gear motor reducer is a kind of greenhouse pulling screen system, which is easily installed. The main transmission components made from the rack and pinion, rack and pinion mechanism

Features:

1, Compact structure, easy to installation and operation, long life span.

2, Install limit switch and emergency limit switch for reducing failure impact.

3, Low noise and beautiful apperance.

4, Widely used in greenhouse shading system and open window system

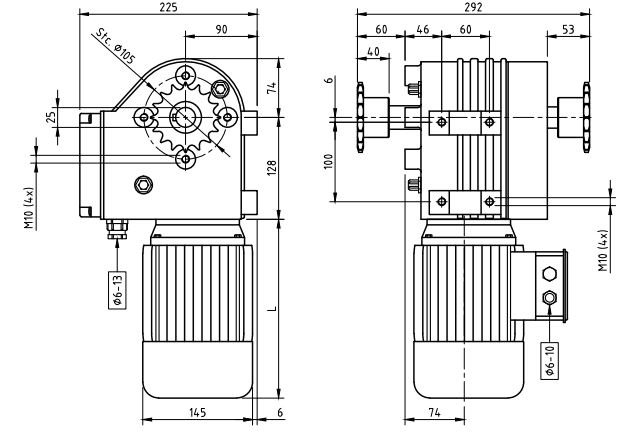

As a standard the Worm gearbox GW30 is fitted with a chain coupling set with a duplex chain

according to DIN chain number 10B-2. The sprocket wheel joint is available for 1”, 5/4”

or 2” drive tubes. Attachment of the motor gearbox is possible at the side or the base.

The GW30 can optionally be fitted with a tube-bolt chain coupling set for 1” or 5/4” drive

tubes. Electric motors with different voltages and/or frequencies or a higher protection

class, for instance tropic winding, are available on request.
