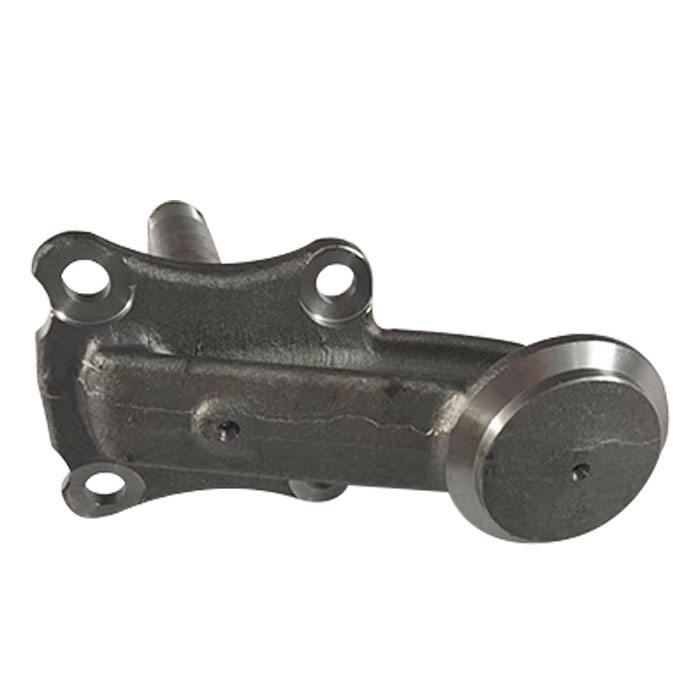

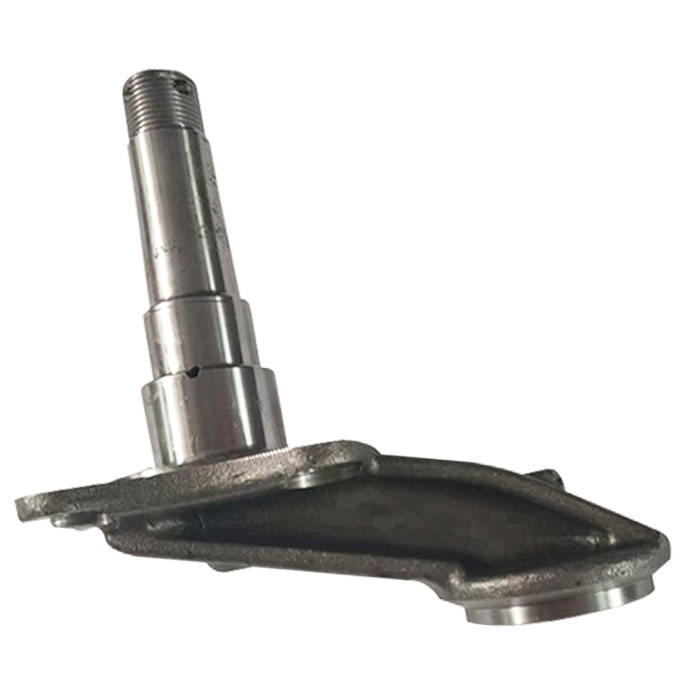

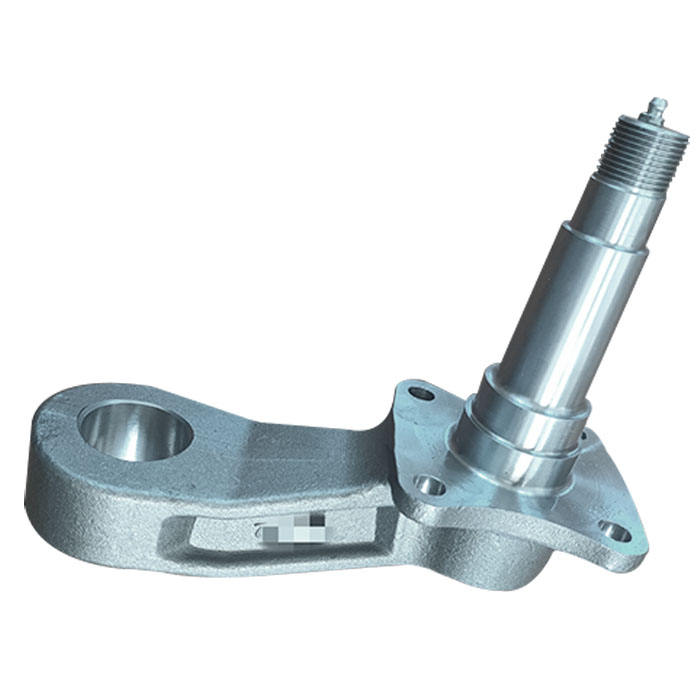

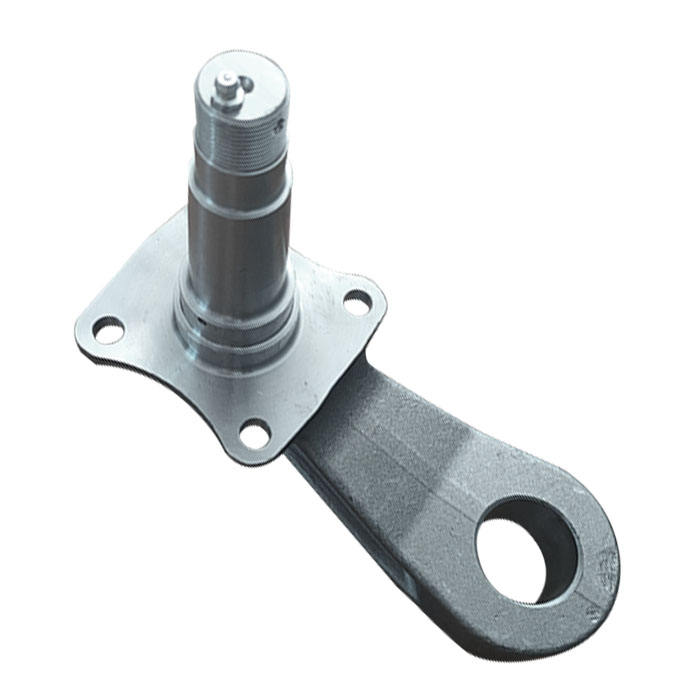

Trailer Axle Spindle Torsion Spindles Drop Center Torsion Axle

Raydafon Group's Trailer Axle Spindle Torsion Spindles Drop Center Torsion Axle delivers superior durability and smooth performance for heavy-duty trailers, built with advanced materials to enhance stability and reduce maintenance. Ideal for professionals and enthusiasts seeking reliable towing solutions, it ensures safer, stress-free journeys. Stand out with innovative design and unmatched quality.

Send Inquiry

Product Description

Brand Name	OEM
Model Number	Customized Services
Process	Mainly Hot forging, Some parts with Cold forging ,die forging and Free forgin will be OK
Material	Carbon steel: CM490,A36,1045,1035 etc., Alloy steel: 40Cr, 20CrMnTi, 20CrNiMo, 42CrMo4 etc., Stainless steel, SS304,SS316 etc.
Weight	1kg - 120kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming etc.
Machining Tolerance	0.03mm-0.1mm
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate,Dacromat coating, Finish Painting,
Testing equipment	Supersonic inspection machine, Supersonic flaw detecting machine , physics and chemical analysis.
MOQ of mass production	1000-5000pcs
Testing equipment	Optical Spectrum Analyzer,tensile testing machine,impact testing machine,fluorescent magnetic particle detector,hardness tester,ultrasonic flaw detector..etc.
Packing	Wooden cases or according to customers' needs

What Is a Trailer Axle Spindle?
A Trailer Axle Spindle is a basic component of a trailer that serves a specific purpose. If you are in need of a replacement axle for your trailer, consider a few options. First, you can find a spindle that is a one-piece construction. This style features a one-inch diameter, 1.25" material, and a single-piece axle beam. These types of axles will allow you to change the wheel bearings without disassembling the axle. They're also suitable for trailers that don't have brakes.
Trailer axles can be fitted with spindles in one of three ways. For example, in a traditional trailer axle assembly, the spindles are bolted to the ends of a tube axle suspended from springs. Another method uses a torsion beam to provide a smooth, bump-free ride.
Trailer axles generally have two bearings: a front and a rear. The front bearing is closer to the road, while the rear bearing is
closer to the trailer. However, not all bearing pairs are the same size. A tapered spindle will require a larger rear bearing than a straight one. Alternatively, a straight spindle will require the same size for the front and rear bearings.
The axle spindle is a vital part of any trailer. This part is located at each end of the axle, and is what makes the wheels
rotate. It is a small circular object that never touches the wheel hub, but provides a surface for wheel bearings. The wheel
bearings, in turn, move around the spindle to enable the wheels to move.
Features:
Weld-on installationSturdy steel constructionWorks with 3.5K bearing kit (sold separately) * 3.5k (3500 lb Capacity) Bearing Kit * Inner bearing-L68149 1.378 I.D
* Outer bearing-L44649 1.063 I.D
* Tang washer
* Grease Cap 1.99"
* Cotter pin
* Inner race-L68111 2.362 O.D
* Outer race-L44610 1.980 O.D
* Double lip grease seal-010-019-00 2.565 O.D 1.719 I.D

For more models or customization, please click here!
