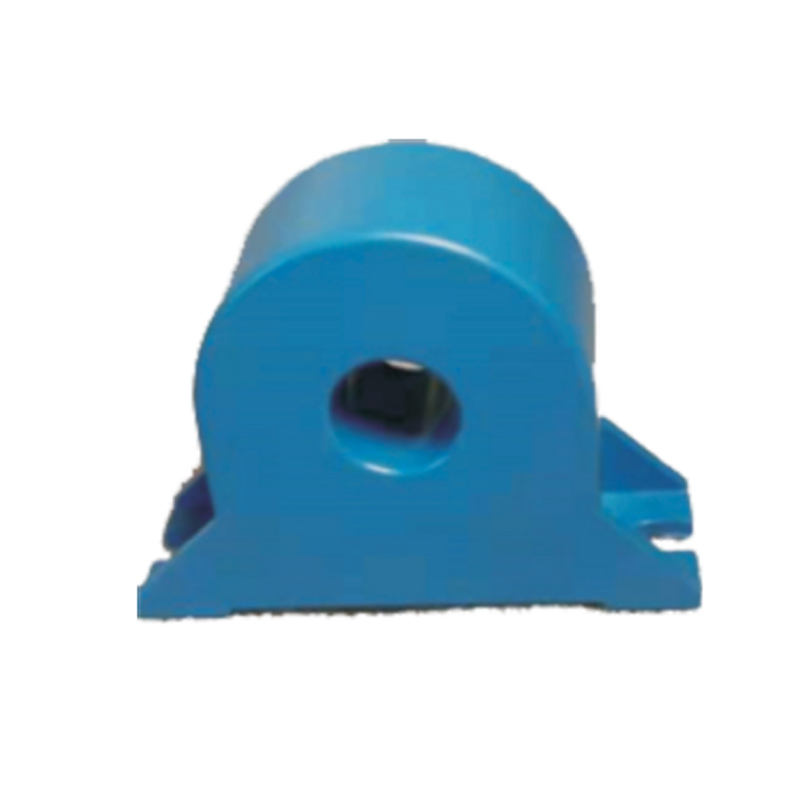

SITD Series Magnetic Balance Current Sensor for DC Motor Railway Communication

Raydafon Group's SITD Series Magnetic Balance Current Sensor for DC Motor Railway Communication ensures precise current monitoring with advanced magnetic balance technology, ideal for railway systems. Its durable design, high accuracy, and reliability solve critical safety issues, delivering peace of mind and operational efficiency. A superior choice over competitors, backed by Raydafon's trusted quality.

Send Inquiry

Product Description

Quick and easy installation

High precision, high reliability, low cost testing

Linear output, fast response

Various output currents and voltages

Strong resistance to external magnetic field interference

Model	SITD10G	SITD20G	SITD30G	SITD40G	SITD50G
Primary rated input current	0~±10A	0~±50A	0~±50A	0~±50A	0~±50A
Primary current measurement range	120%
Secondary rated output	0-5V0-10V0-20mA4-20mA
Working power supply	+12±5%V
Current consumption	≤28mA
Accuracy	≤0.5%
Linearity	≤0.2%
Offset voltage	TA=25℃,≤±25mV
Temperature drift	≤±0.08%/℃
Response time	≤5μs
Load resistance	≤250Ω
Tracking speed	≥50A/μs
Measurement bandwidth	DC~100kHz
Working temperature	-40℃~85℃
Storage temperature	-40℃~90℃
Isolation withstand voltage	2.5kV/50Hz/1min×1mA

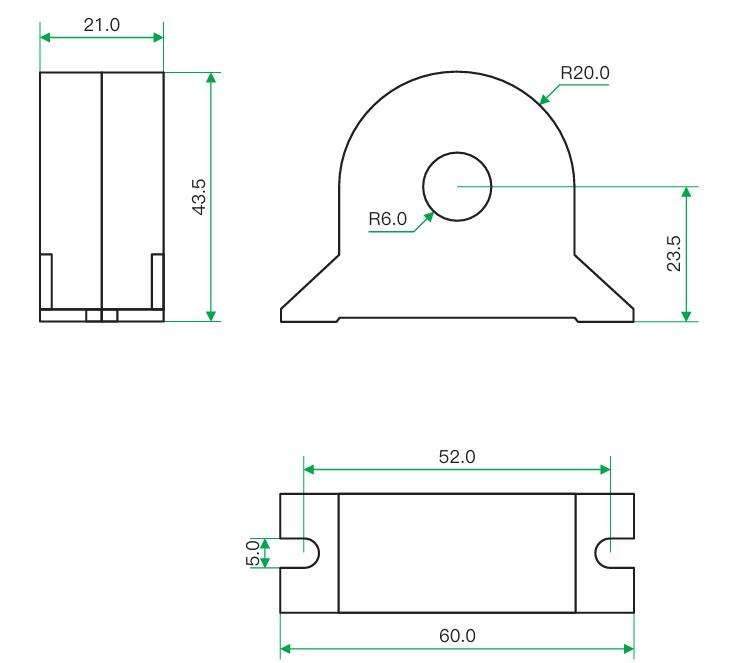

Installation	Screw-fastened flat surface installation

DC motor, chopper, variable frequency speed regulator, rectifier, industrial automation control, electrochemical current isolation measurement, power supply monitoring, uninterruptible power supply UPS, welding equipment, railway locomotive, communication power supply
