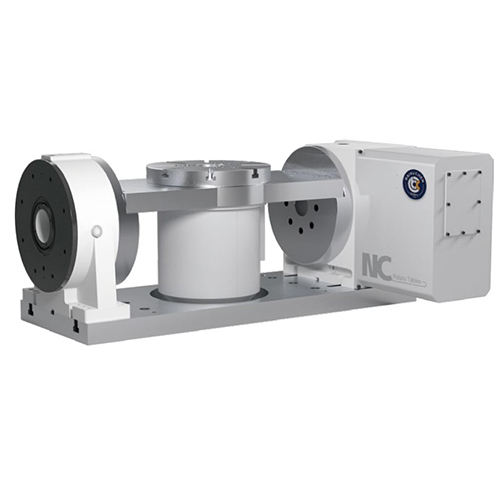

RTS-400 China Professional Metal Cnc Machining Center Price 5 Axis Accessories

High precision, high performance, high efficiency Five axis machining, modular designOptional fixture oil circuit, Optional hydraulic brakeProduct ModelRTS-400Servo motor (optional)β 22iFANUC;β 22iFANUCPanel Size400mmReduction Ratio1:145 ;1:120Disk Aperture50mmMaximum Rotation Speed Of Worktable20 r......

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

Product Model	RTS-400	Servo motor (optional)	β 22iFANUC;β 22iFANUC
Panel Size	400mm	Reduction Ratio	1:145 ;1:120
Disk Aperture	50mm	Maximum Rotation Speed Of Worktable	20 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±120°deg	Segmentation Accuracy	20″sec;20″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	4″sec;4''sec
0 ° Time Disk Height	462.5mm	Locking torque of rotating shaft	7840N.m;1800N.m
90° Time Center Height	305mm	Brake Pressure	+;35Kg/cm²
Net Weight (about)	650Kg	Allowable Cutting Force	300Kgf-m;170Kgf-m
Horizontal placement	400KG	Ninety ° Time	200KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
