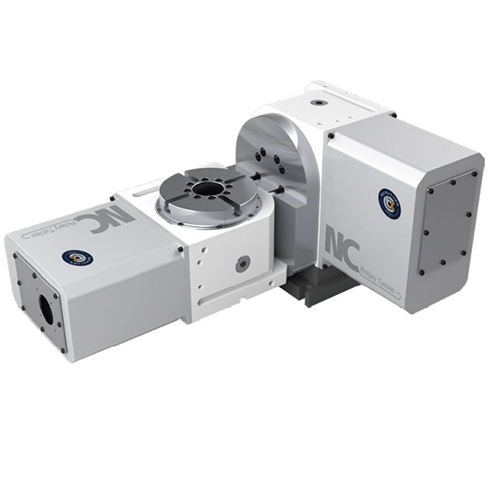

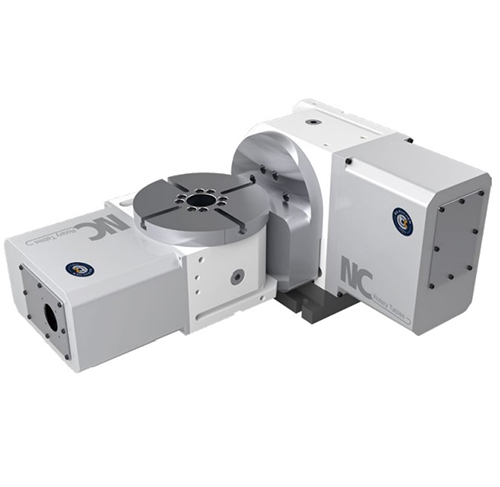

RT-250 Promotional Various Cnc Machining Center Parts Accessories for Numerical Control Machine

Raydafon Group's RT-250 Promotional Various CNC Machining Center Parts Accessories enhance numerical control machines with durable, precision components. Ideal for engineers and manufacturers, it boosts efficiency, reliability, and performance, solving downtime issues. Stand out with superior quality and competitive pricing—upgrade your setup today!

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Strong braking system

Product Model	RT-250	Servo motor (optional)	β8iFANUC ;β8iFANUC
Panel Size	250mm	Reduction Ratio	1:72 ;1:120
Disk Aperture	55mm	Maximum Rotation Speed Of Worktable	55.5 r.p.m
T-groove Of Disk Surface	14H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±110°deg	Segmentation Accuracy	20″sec;15″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	4″sec;4''sec
0 ° Time Disk Height	270mm	Locking torque of rotating shaft	310N.m;500N.m
90° Time Center Height	230mm	Brake Pressure	10Kg/cm²;35Kg/cm²
Net Weight (about)	200Kg	Allowable Cutting Force	18Kgf-m;30Kgf-m
Horizontal placement	60KG	Ninety ° Time	40 KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
