Refrigerant Air Dryer and Adsorption Air Dryer With Low Dew Point for Rotary Screw Type Air Compressor

Refrigeration Air DryerThis Series of refrigerated compressed air dryers work on the principle of refrigeration dehumidification. When the compressed air cooled by the refrigeration apparatus to the set temperature, the gaseous water in it condensed into a liquid state and separated by the special-s......

Send Inquiry

Product Description

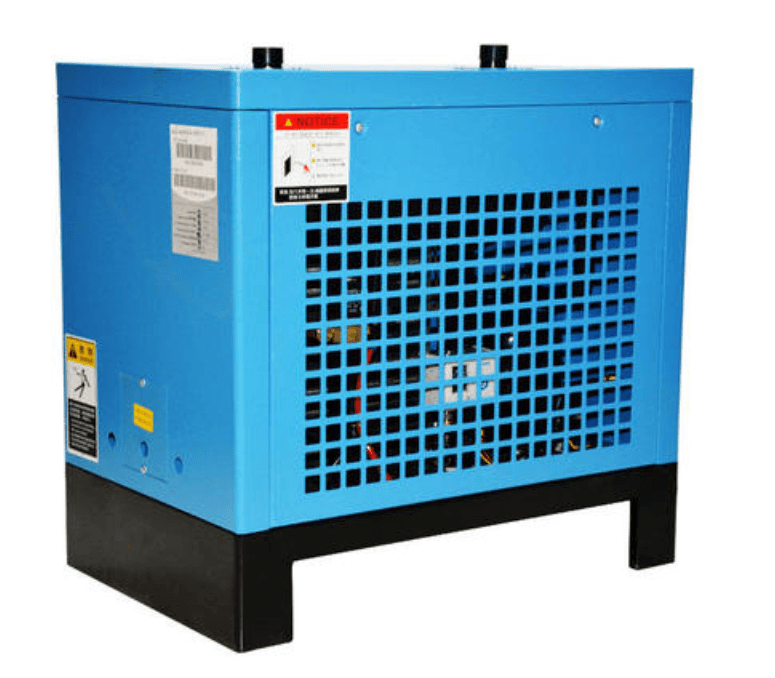

Refrigeration Air Dryer

This Series of refrigerated compressed air dryers work on the principle of refrigeration dehumidification. When the compressed air cooled by the refrigeration apparatus to the set temperature, the gaseous water in it condensed into a liquid state and separated by the special-structured gas-liquid separator, and discharged by the drainage device, so we get the dried compressed air.

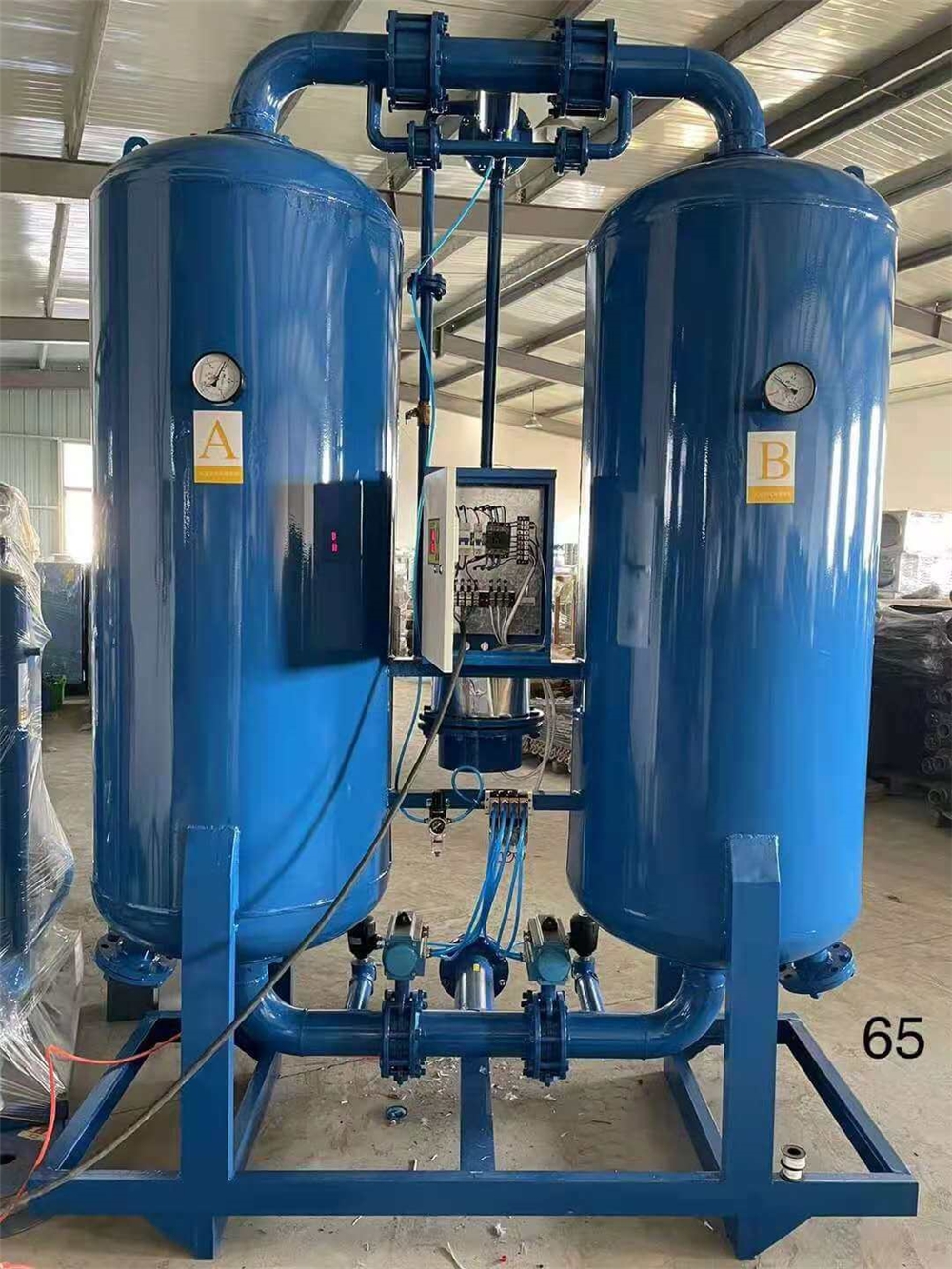

Adsorption Air Dryer

Adsorption compressed air dryer use desiccant or adsorbent(usually high-efficiency active alumina or molecular sieve) to adsorb moisture in the compressed air, the desiccant has the quality of preferentially absorb moisture and will not affect the chemical composition of the synthetic gas. The dew point of the compressed air treated by an adsorption dryer will be -20°C- -40°C and could reach a low dew point of -70°C by a specially designed adsorption dryer. The adsorption compressed air dryer designed to dual-tower structure, with advantages of stable operation, low investment, easy maintenance and etc.

Series	Air Pressure	Air Capacity
High Pressure Series	13~40 bar	4.5~20.0 m3/min
Regular Series	7~10 bar	1.0~40.0 m3/min
Low Pressure Series	2~5 bar	3.0~60.0 m3/min
Two-stage Energy-saving Series	8~10 bar	20.0~60.0 m3/min

7~10 bar Series

2~5 bar Series

Two-stage Energy-saving Series

Diesel&Electric Portable Series

12~16 bar 4-in-1 Series

1 Phase Small Screw Series

16~40 bar Oil-free Screw Type

7~10 bar Oil-free Screw Type

2~5 bar Oil-free Screw Type

2-stage Oil-free Screw Type

8~12 bar Oil-free Scroll Type

8~12 bar Oil-free Scroll Air-end

View More

What we can supply:

* Oil-injected Screw Air Compressor (2~16 bar)

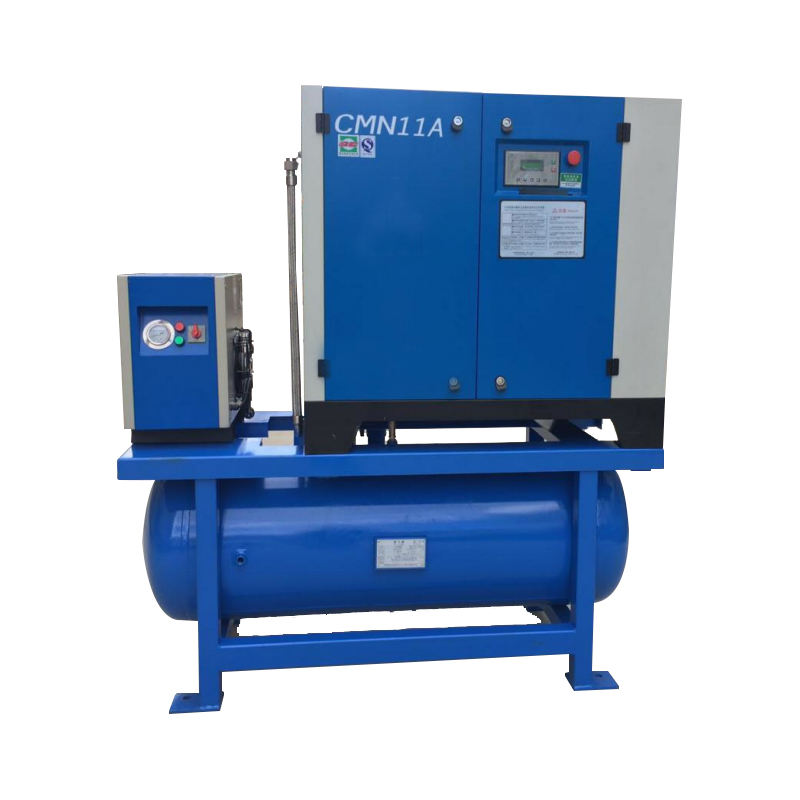

* All-in-one Screw Air Compressor with Tank, Dryer, and Filters (7~16 bar)
* Single-phase Small Screw Air Compressor for Home use (8~10 bar)

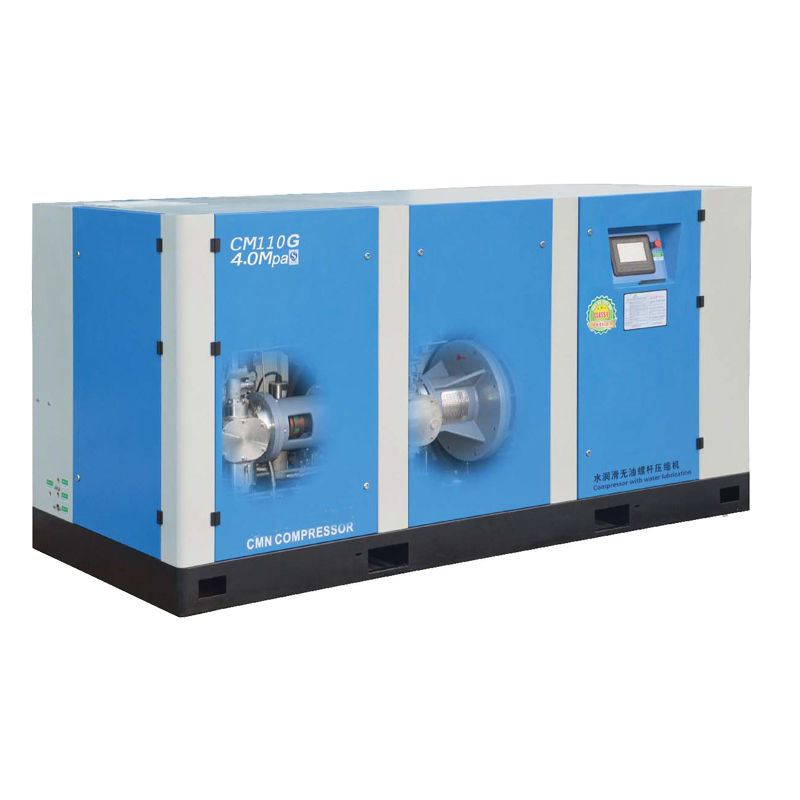

* Water-injected Oil-free Screw Air Compressor (2~40 bar)
* Oil-free Scroll Air Compressor (8~12 bar)
* Diesel&Electric Engine Portable Screw Air Compressor (8~30 bar)
* Air Dryer, Air tank, Filters, and other Spare parts
