PTO Shaft Transmission T6 Spline Driving Universal Joint PTO Connecting Tractor Cardan Drive Shaft for Agricultural Machinery

PTO Drive Shaft for Agricultural Machinery FunctionPower transmissionUseTractors and various farm implementsYoke Typepush pin/quick release/ball attachment/collar/double push pin/bolt pins/split pinsProcessing Of YokeForgingPlastic CoverYW;BW;YS;BSSeries1S;2S;3S;4S;5S;6S;7S;8S......

Send Inquiry

Product Description

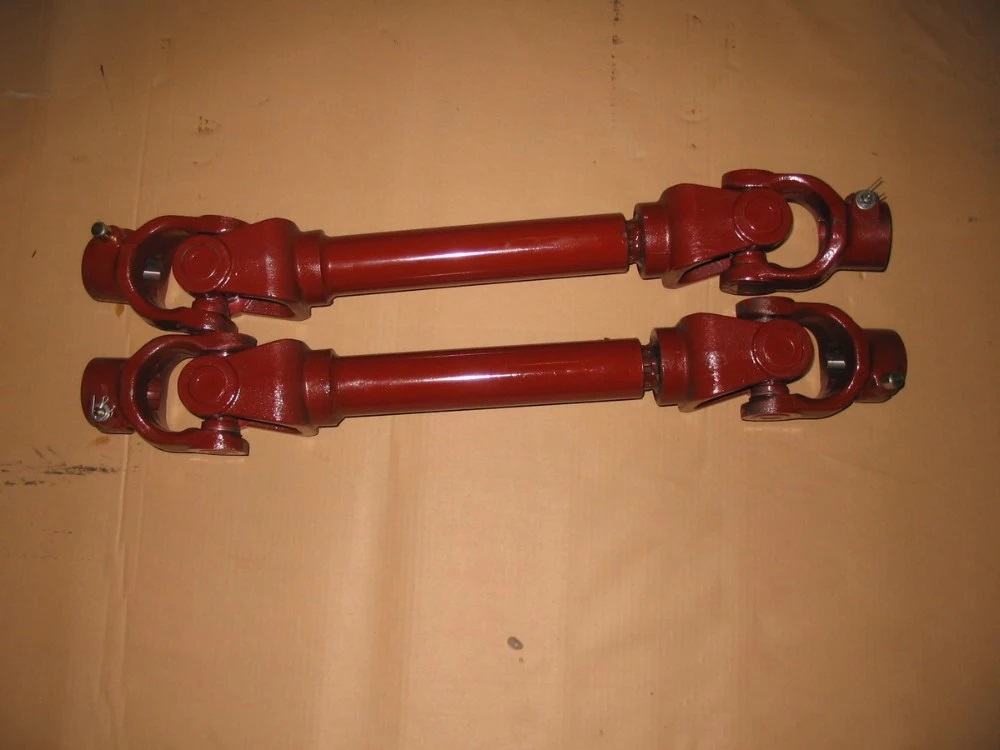

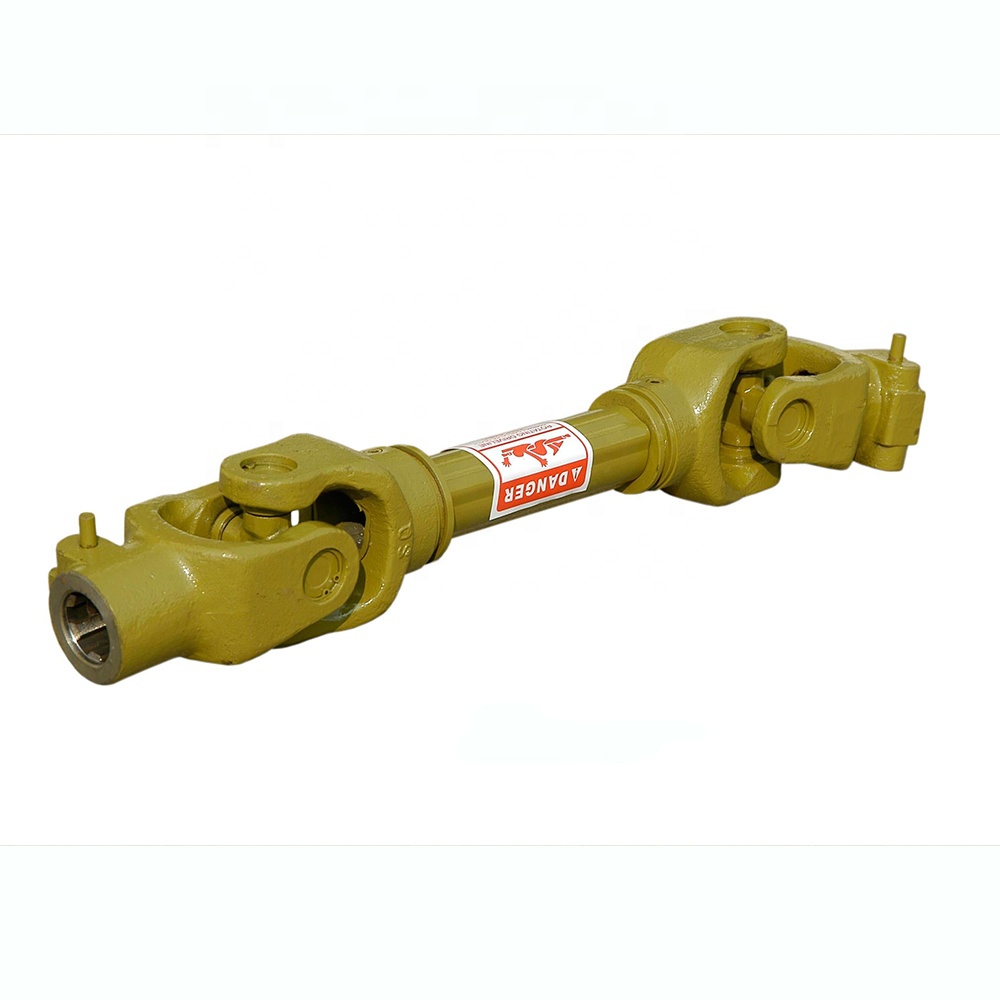

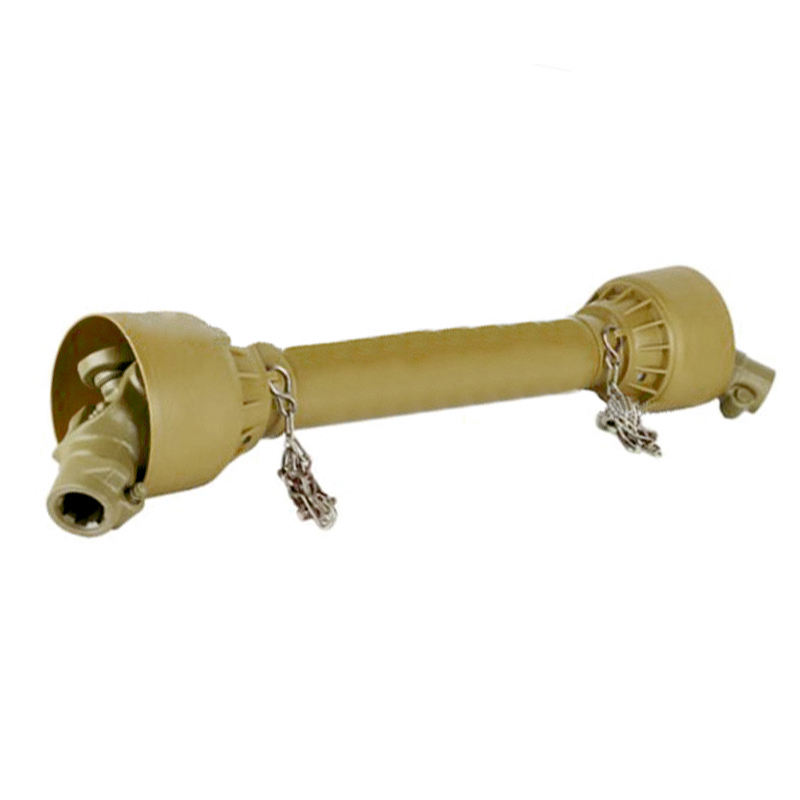

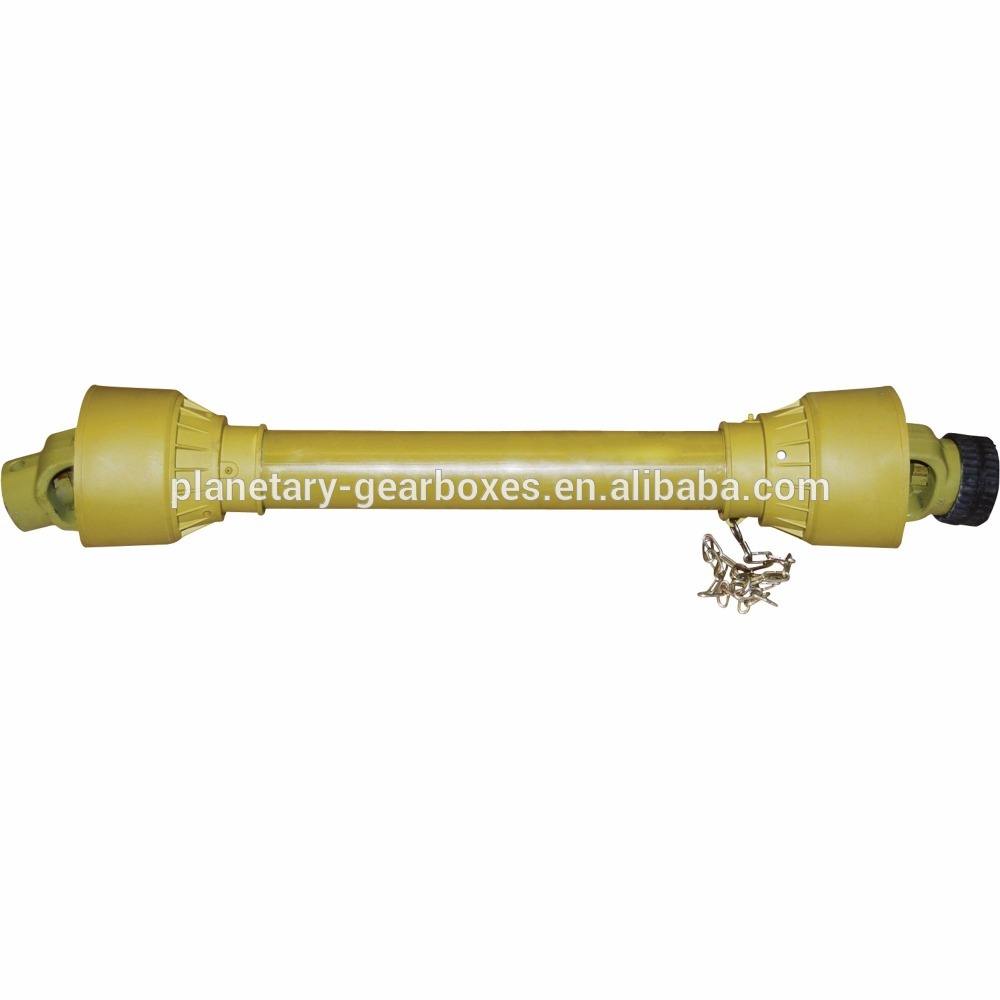

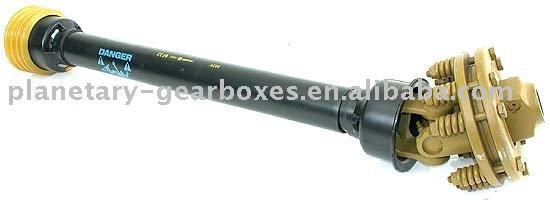

PTO Drive Shaft for Agricultural Machinery

Function	Power transmission
Use	Tractors and various farm implements
Yoke Type	push pin/quick release/ball attachment/collar/double push pin/bolt pins/split pins
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS
Series	1S;2S;3S;4S;5S;6S;7S;8S;9S;10S;38S;48S;36
Tube Type	Trianglar/star/lemon
Processing Of Tube	Cold drawn
Spline Type	1 3/8" Z6; 1 3/8 Z21 ;1 3/4 Z20;1 1/8 Z6; 1 3/4 Z6; 842488; 832386

Materlal and Surface Treatment
Cross shaft	Heat treatment of 20Cr2Ni4A forging
Bearing cup	20CrMOTi forging heat treatment
Flange fork	ZG35CrMo, steel casting
Spline shaft	42GrMo forging heat treatment
Spline bushing	35CrM0 forging heat treatment
Sleeve body	42CrMo forging
Surface treatment:	spraying
Flat key, positioning ring	42GrMo forging

●The above are standard models and materials. If you have special supporting requirements, you can customize production according to customer needs. Please click here to contact us！
