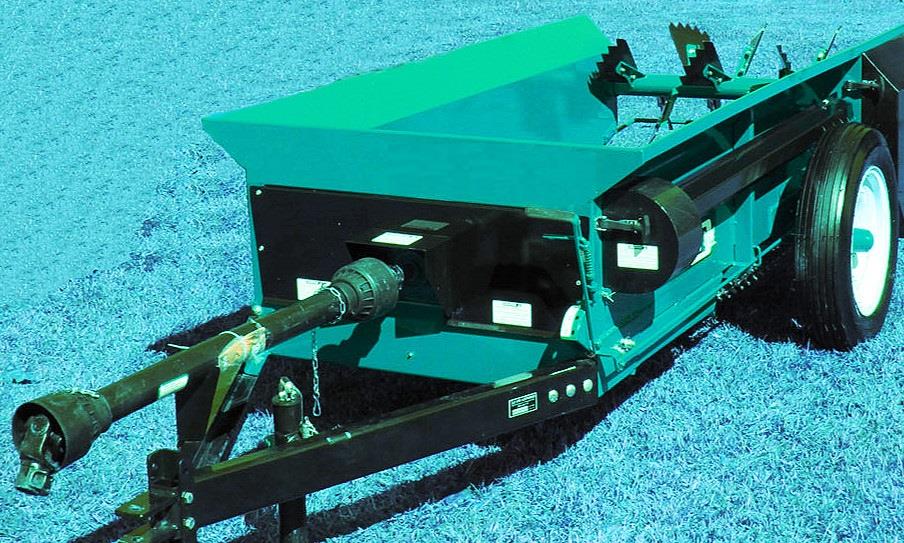

PTO DRIVE SHAFT & GEARBOX FOR MANURE SPREADERS

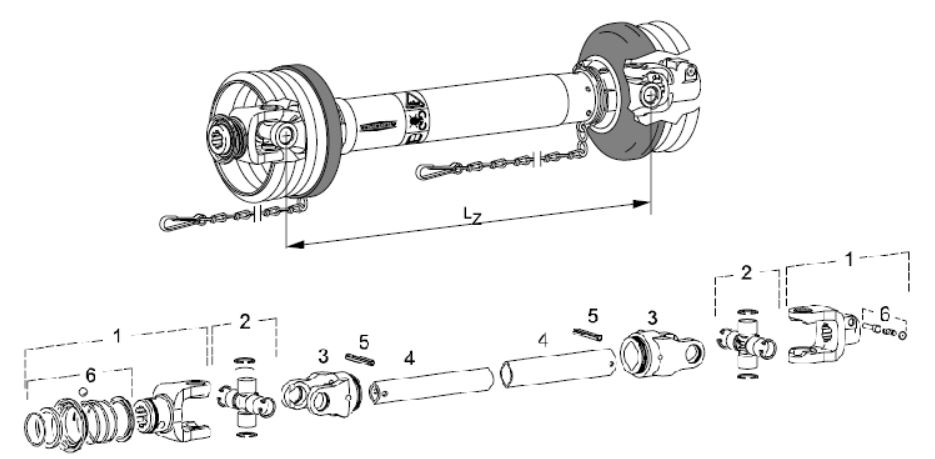

The PTO drive shaft for agricultural applications consists of two cardan joints and a telescopic coupling.Thecardan joint, consisting of two yokes and a cross, is the element used to transmit the motion between two tiltedaxdes.
undesirable efects.
Some models are equipped with 35N CV PTO and combination clutch. Note that combination clutches and cutout clutches rely on different principles. We reccommend the PTO similar to Walterscheid version for all models.

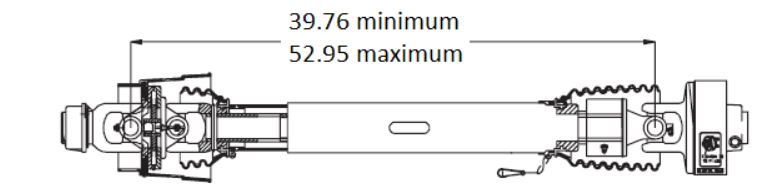

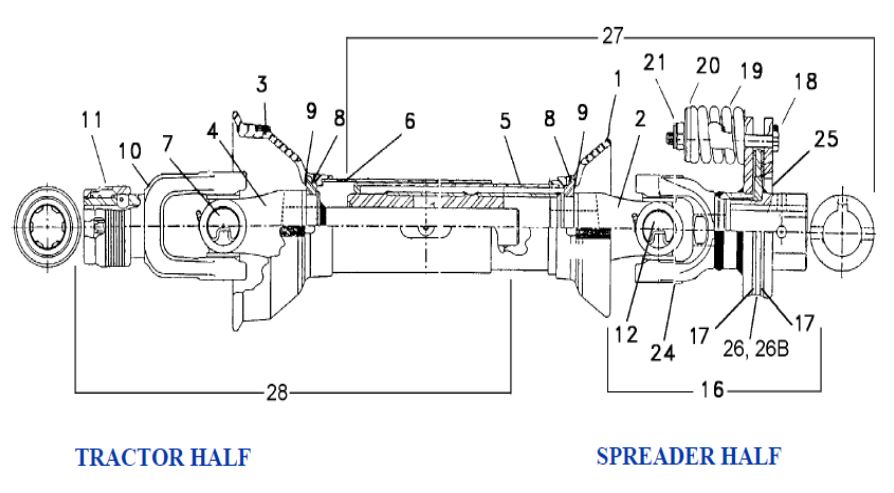

PTO DRIVE SHAFT FOR MANURE SPREADERS
| MANURE SPREADERS | PTO SHAFT SERIES NO. | MIN. LENGHT | MAX. LENGTH | TRACTOR END | MANURE SPREADERS |
| Manure Spreader | Series 4 | 54" | 70" | 1-3/8 Z6-QD Pin | 1-3/8" Z6-QD Pin |
| Manure Spreader | Series 6 | 47" | 65" | 1-3/8 Z6-QD Pin | 1-3/8" Z6-QD Pin |
Different Tubing profiles have been used on same models .... Star profile assemblies may be retrofitted with 2580 series.

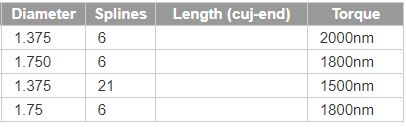

Spreader Input Requirements Cutout Clutch with Overrunning device
Vertical Driveline , Truck Mount Mechanical Drive
35N series * 1.375-6 to 1.375 round -.312 key double set screw

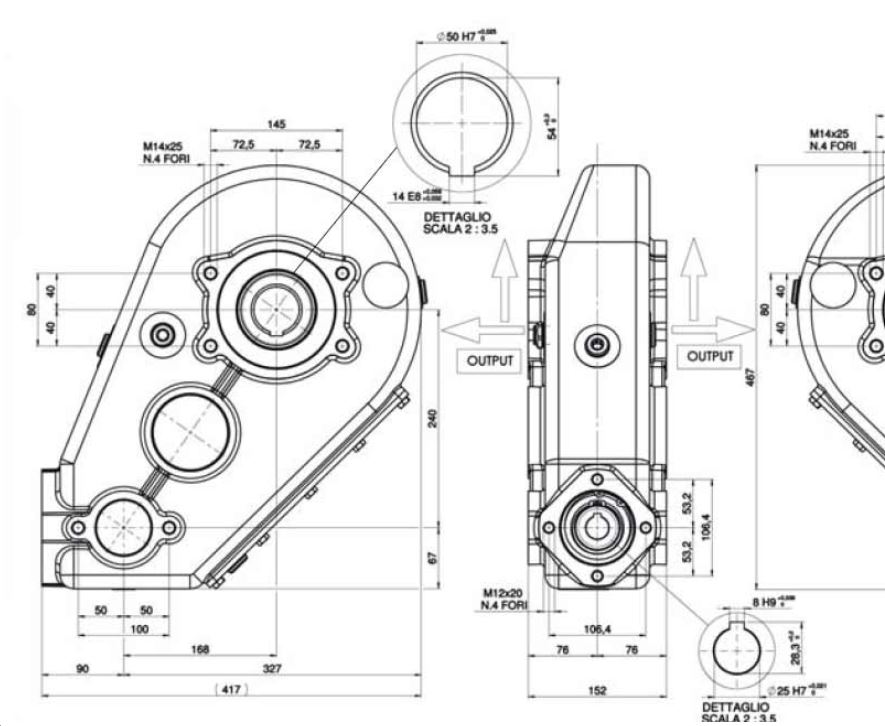

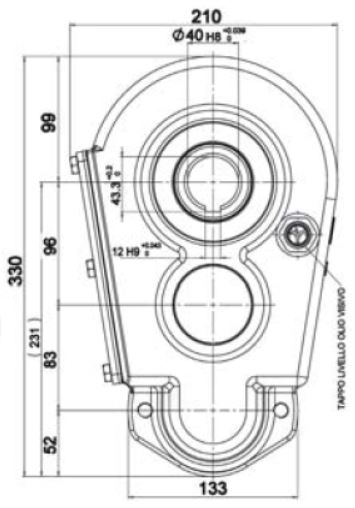

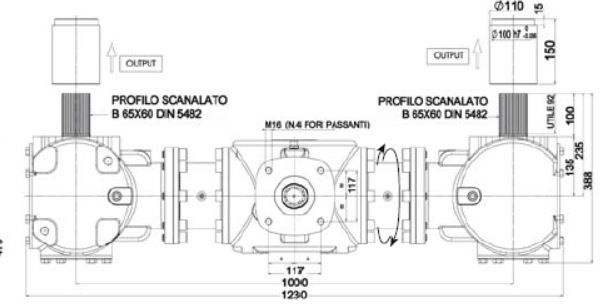

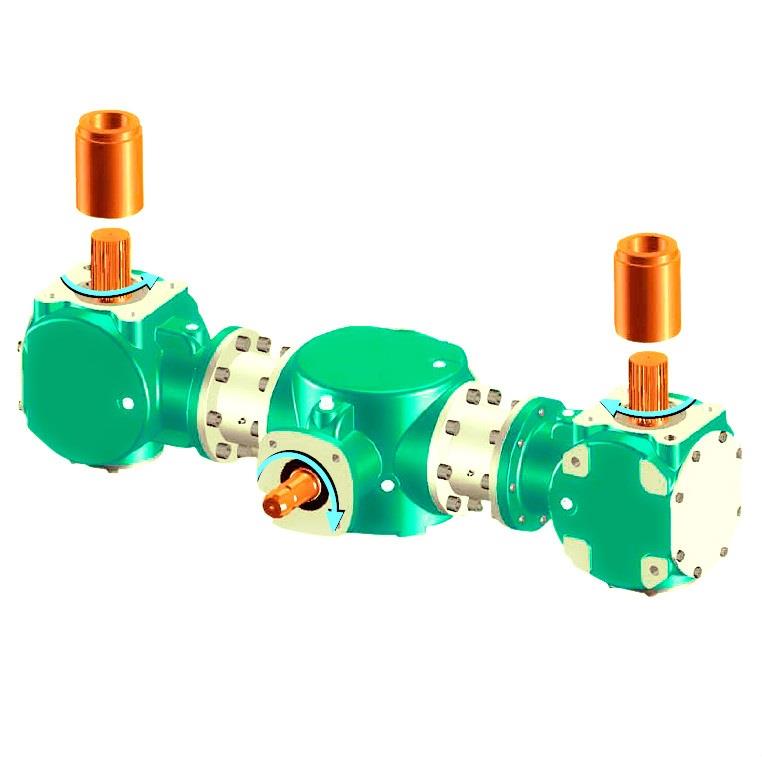

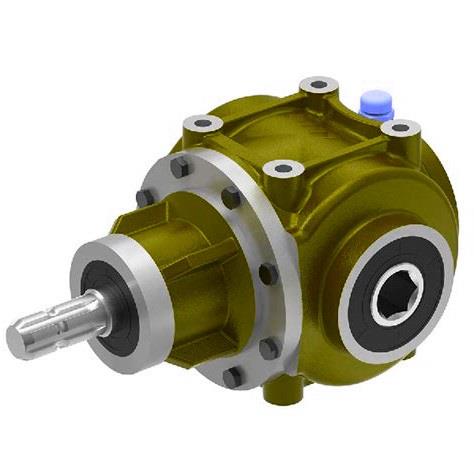

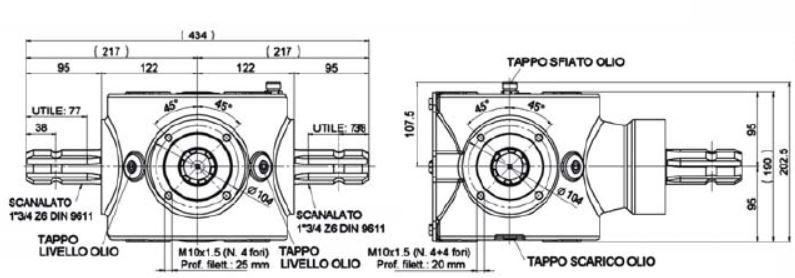

GEARBOX FOR MANURE SPREADERS
