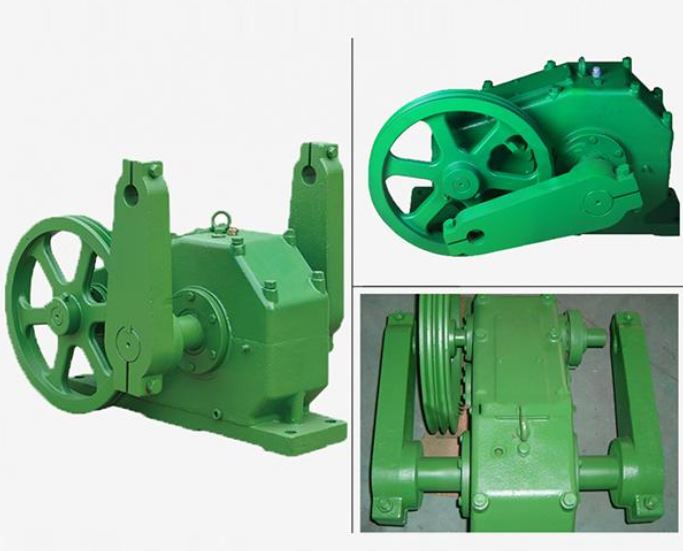

Oil Pump Gearbox
We could offer proper oil pump gearbox for our customers according to thetr agricultural machines. If the
application, dimension and Input speed and gear rabo are offered, We could offer you whatever you want.
ODM (original design manufacturing) service is provided when manufacturing oil pump gearbox.
The folloWings are its technical parameters:
| Model Number | OK16 |
| Gearing Arrangement | Bevel I Mrter |
| Output Torque | 9-JOOON.m |
| Rated Power | 33HP |
| Input Speed | 540rpm |
| Output Speed | 15'pm |
| Housing Material | HT250 |
| Gear Shaft Material | 20CrMnTi |
| Ratio | 36.7:1 |
| Input speed | 540 rpm |
| Color | Customer Requests |
| Backlash | 0.25-0.46 |
| Noise | 70db-1 meter |
| Power | 33HP |
| Input torque | 1.1-1.SNM |
| Output speed | 15rpm |
