Mower Gearbox

1:1.47 SPEED INCREASER

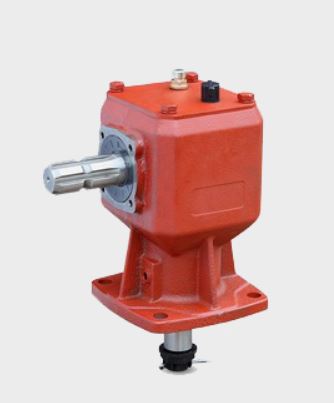

Brand new, Raydafon GEAR series EP-30 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16"-18 tapped holes on 3-5/16" dia. B.C. Ships without oil, user must add oil prior to use per user ‘s manual.

SPECIFICATIONS

Model 250179

Rotation CCW input gives CW output

Gear Ratio 1:1.47 Increaser

Input RPM 540/1000

Output RPM 793/1470

Input HP 24-40

Max Torque 2800-4667 in.lbs.

Input Shaft 1-3/8" dia. x 3-7/8" long 6T spline W/ 5/16" dia. pinhole

Output Shaft 1-9/16" dia. 12 tooth tapered spline w/threaded end. 4-1/2" total length

Blade Hub 2.95" dia. x 2.02" stepped down to 2.5" dia. x 0.27" then tapers down to 2.183" dia. over 0.315"

Mount 4 holes on 6.8" dia. B.C.

Pilot 5-1/4" dia.

Size 10-1/4" x 7" x 7"

Shpg. 54 lbs.
