M Series Vertical CNC Machining Center for Processing Plate, Disc, Shell, and Mold Parts

Raydafon Group's M Series Vertical CNC Machining Center excels in processing plate, disc, shell, and mold parts with precision and efficiency, offering superior durability and advanced technology for manufacturers, reducing production time and costs while ensuring high-quality results—perfect for industrial applications and boosting productivity with reliable performance.

Send Inquiry

Product Description

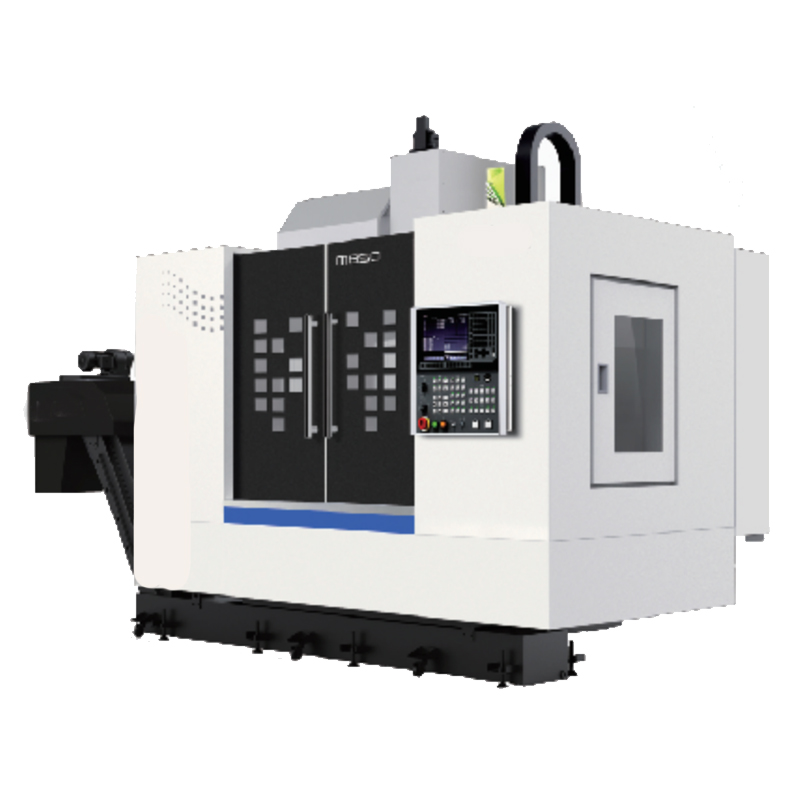

M series vertical machining center

Mainly used for the processing of high-precision, multi process, and complex shaped parts such as plates, plates, shells, molds, etc. It is applied in industries such as automobiles, engineering machinery, aerospace, molds, hydraulic, 3C, etc. It is a high-quality, high-precision, low-cost, and high-efficiency machine tool.

Maximum torque can reach: 955Nm The highest accuracy can reach 3um The average time between failures can reach 1500hours

		M500	M800	M1000	M1100	M1300	M1600
Workbench size	mm	650*400	850*410	1155*500	1300*610	1400*700	1700*800
Distance from spindle end face to workbench	mm	150-450	150-450	150-690	150-800	150-830	150-950
Travel (XYZ axis)	mm	500/400/300	800/400/300	850/550/540	1100/610/650	1300/700/700	1500/800/800
Rapid movement speed (XY/Z-axis)	m/min	48/48/48	48/48/48	36/36/32	32/32/30	30/30/30	12/12/12
Main spindle specifications	-	BT30	BT30	BT40	BT40	BT50	BT50
Maximum spindle speed	rpm	20000	20000	10000	10000	6000	6000
Main motor power	kw	3.7/5.5	3.7/5.5	7.5/11	11/15	15/18.5	15/18.5
Spindle output torque	N.m	11.8/28.7	11.8/28.7	48/70	52.5/71.6	143/177	143/177

CNC machines

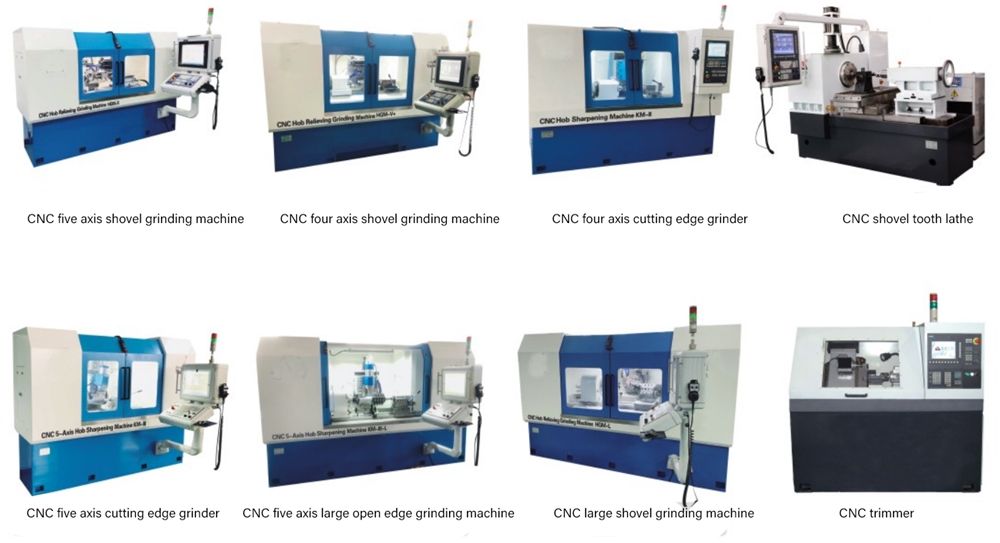

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

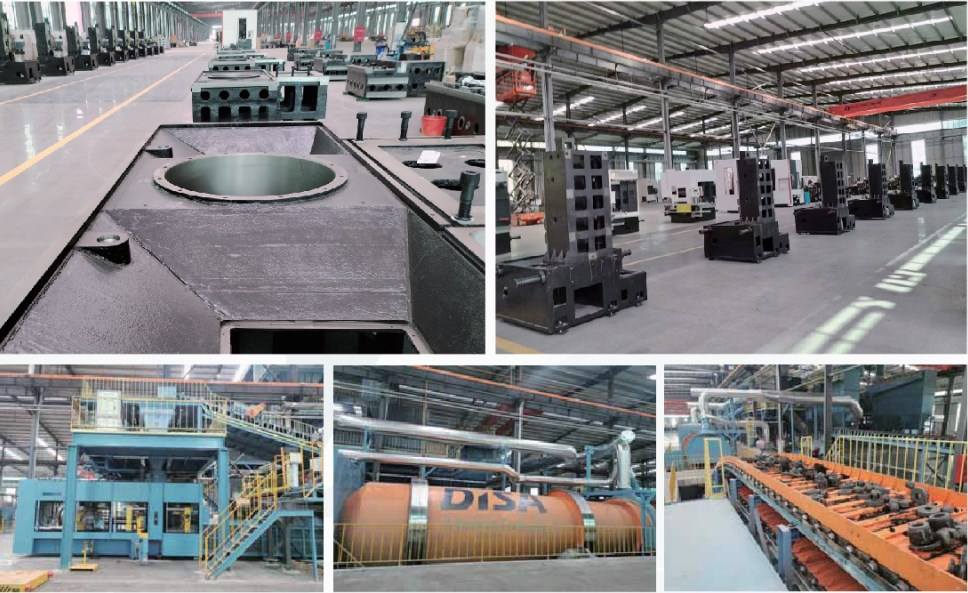

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

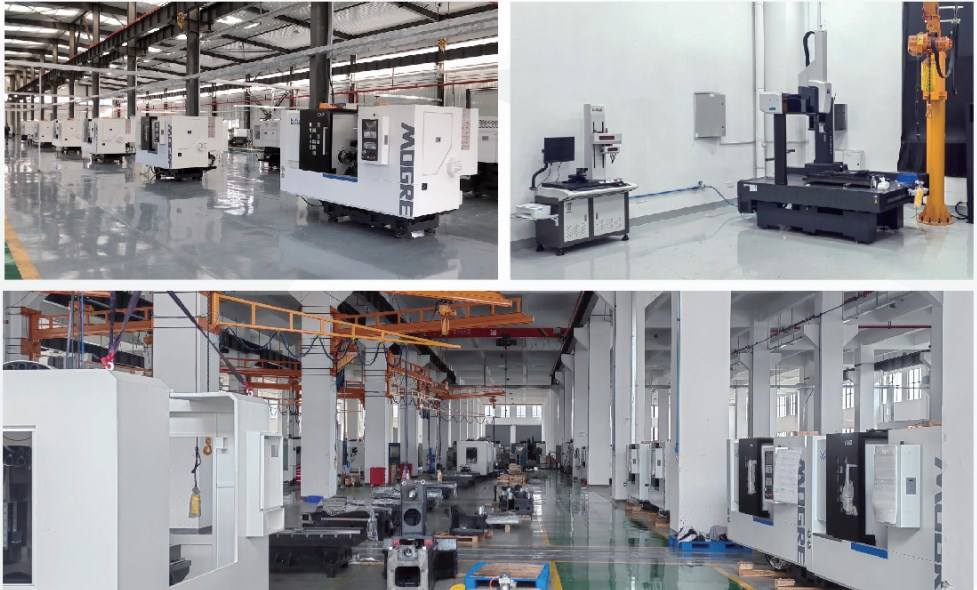

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
