LWX5 CNC Machine Tool Lathe Machining Center Cylindrical CNC Thread Grinder

LWX5 CNC Thread Grinder--One of the main features of tap manufacturing is high flexibility . Oudedicated mechanical layout and powerful software ensure almost allsizes and types of taper to be manufactured with one-time clamping--The granite base guarantees high capacity and stability of the machine......

Send Inquiry

Product Description

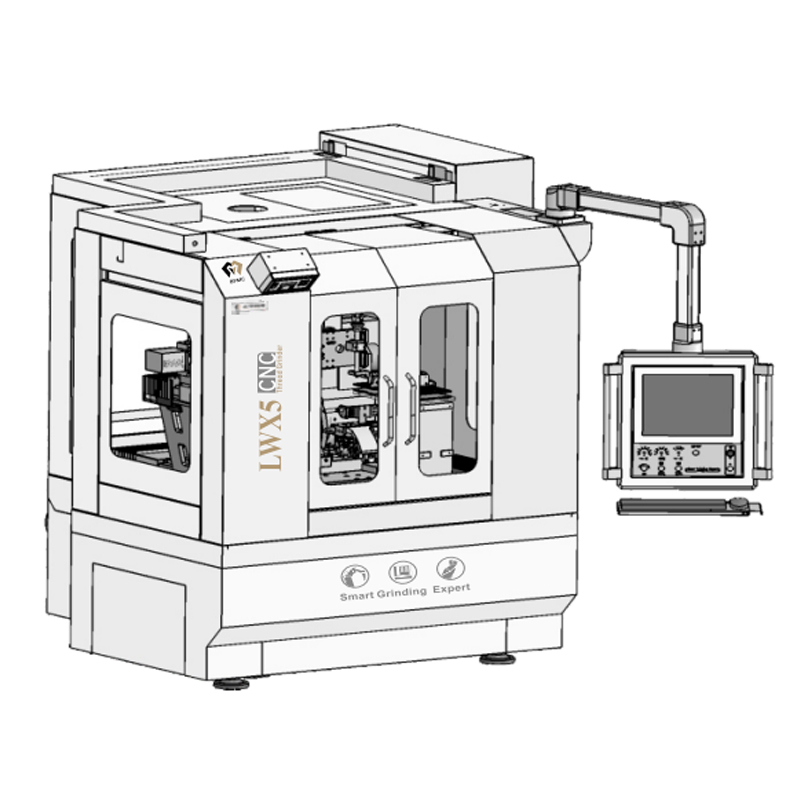

LWX5 CNC Thread Grinder

--One of the main features of tap manufacturing is high flexibility . Oudedicated mechanical layout and powerful software ensure almost allsizes and types of taper to be manufactured with one-time clamping

--The granite base guarantees high capacity and stability of the machine

--High-power spindle and special clamping system are equipped

--All linear axes are available with optional direct drive motors

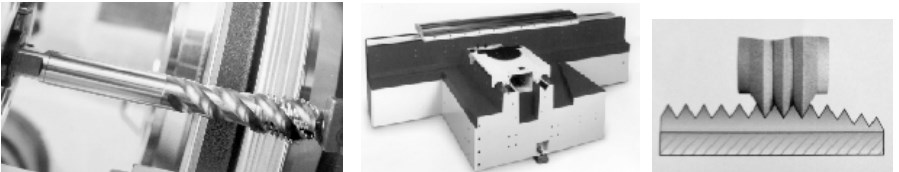

These features ensure the rigidity , precision , functionality and flexibility of our CNC machine . Grinding wheel dressing is the key point of taper thread grinding . With help of our dedicated mechanical design , powerfsoftware , we can dress single-or multi wire grinding wheel with speed 6000RPM , which in reverse leads to accuracy and flexibility of wheel dressing

Grinding Spindle			TOOlS Range ( Grindabile Tool depends on its Type and Machining Requirement )
Single Spindle Taper Hole	1:5External Cone	Diameter	M3-M12
Peak Power	10kw	Length	150mm
Linear Speed of Grinding Wheel	65m/s	Linear Axis Controlled Resolution	0.001mm
Diameter of Grinding Wheel	400-250mm	Rotary Axis Controlled Resolution	0.001°
Travel			Controller	BP/SYNTEC/FANUCSIEMENS
X axis	200mm	Automatic Loading System
Y axis	200mm	Shank Diameter of Work Piece	3-16mm
Z axis( (Grinding Wheel Dressing Axis)	100mm	Max. Length of Work Piece	160mm
Rotary Axis (C Axis)			Connected Loading
Standard Center Height	180mm	380V/50Hz	ca.15kw
Max. Rotation Speed	70RPM	Size
Swing Limit of Grinding Wheel	±9	Length x Width	2100X1900mm
Measurement System	RENISHAW/XF	Height	2100mm
		Total Weight ( Depends on the Configuration )	4100kg

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

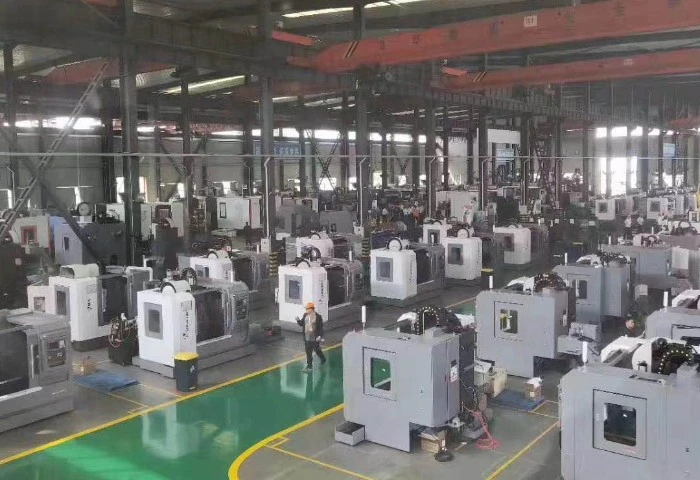

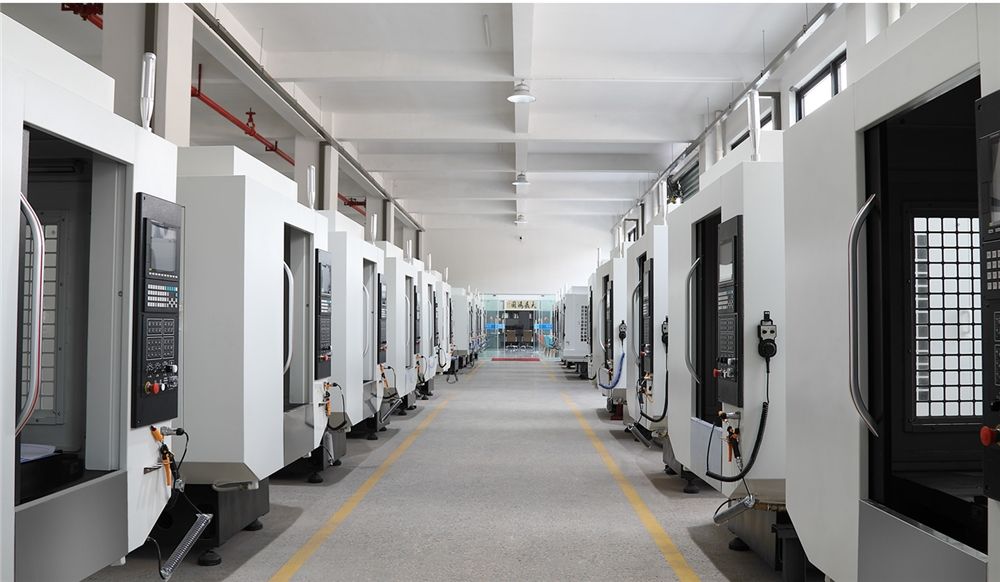

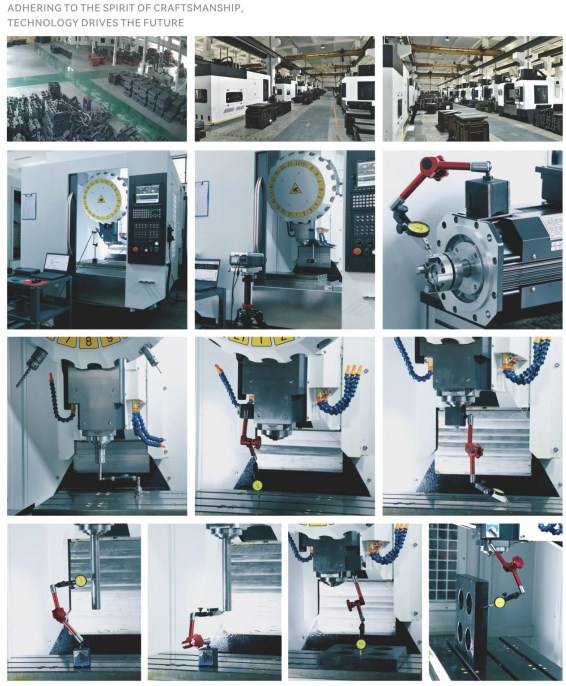

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
