Inline Planeyary Gearbox

The Raydafon inline planetary gearbox is widely known as the best value on the market because it offers the best quality available for the price point. We’ve added some features that make it an even better value and unequaled in its class and ideal for most servo applications. Raydafon...

Send Inquiry

Product Description

Benefits

Modular construction for many output shaft variations

Easily modified or customized for specific applications

Includes motor mounting plate for your specific motor

EPL-W

Metric output gearbox

Heavy duty output bearings

Ratios 3:1 to 1000:1

Frame sizes from 50 mm to 150 mm

Inline Planeyary Gearbox

Output torque Range: 1000 ... 450000 N.m

Transmissible Mechanical Power: up to 450 kW

Gear Ratios: i=3,3 ... 9000

Gear Unit Versions: In line

Right angle (with a spiral bevel gear set)

Output Configuration:

Foot and flange mounted

Output shaft: solid with key, spline, spline hollow,

hollow with shrink disc

Input Configurations

Flanged axial piston hydraulic motors

Hydraulic orbit motors

IEC and Nema motor adaptors

Solid input shaft

Hydraulic Brake: Hydraulically released parking brake on request

Electric Brake: DC and AC type

Inline Planeyary Gearbox

Type	Rated torque (Max.) (N.m)	Rated power (KW)	Input speed (Max.) (rpm)	Range of ratios			Design

				Inline	Right angle	Combined with worm gear
EP300	1000	20	3000	3.3-2700	7-800	400-9000	A
EP301	1750	30	3000	3.3-2700	7-800	400-9000	A
EP303	2500	40	3000	3.6-2900	9-900	400-9000	A
EP305	5000	60	3000	3.6-2900	9-900	400-9000	A
EP306	8500	75	2500	3.7-2900	9-900	400-9000	A
EP307	12500	100	2500	3.4-2500	13-800	400-9000	A
EP309	18500	130	2500	3.4-2500	13-800	400-9000	B
EP310	25000	150	2000	3.8-2500	40-900	400-9000	B
EP311	35000	180	2000	4-2200	18-800	400-9000	B
EP313	50000	200	2000	4-2200	18-800	400-9000	B
EP315	80000	250	1500	4-2000	70-900	400-9000	B
EP316	105000	270	1500	4-2000	50-600	400-9000	B
EP317	150000	300	1000	4-1900	70-900	400-3000	B
EP318	200000	340	1000	4-1100	200-700	400-9000	B
EP319	300000	380	500	4-1400	300-800	1000-9000	B
EP321	450000	450	300	4-1100	300-800	1000-9000	B

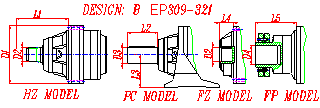

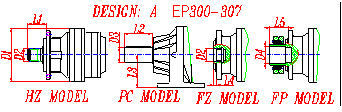

Inline Planeyary Gearbox

Type	Dimensions D1	D2 D3		D3	D4	L1	L2	L3	L4	L5	Design


EP300	185	4036 DIN 5482	19Z 2m30P GB3478.1	38	42	61	58	100	14	50	A
EP301	185	4036 DIN 5482	19Z 2m30P GB3478.1	50	42	61	82	132	14	50	A
EP303	245	5853 DIN 5482	28Z 2m30P GB3478.1	60	75	83	105	160	15	85	A
EP305	245	5853 DIN 5482	28Z 2m30P GB3478.1	60	75	83	105	160	15	85	A
EP306	292	7064 DIN 5482	34Z 2m30P GB3478.1	80	90	130	130	180	40	115	A
EP307	348	8074 DIN 5482	39Z 2m30P GB3478.1	90	100	162	170	200	36	120	A
EP309	348	8074 DIN 5482	39Z 2m30P GB3478.1	100	120	231	165	225	82	245	B
EP310	400	10094 DIN 5482	32Z? 3m30P GB3478.1	110	130	290	210	250	95	290	B
EP311	428	10094 DIN 5482	32Z 3m30P GB3478.1	120	135	320	210	280	88	190	B
EP313	445	1203 DIN 5480	39Z 3m30P GB3478.1	140	145	357	200	280	81	235	B
EP315	542	1505 DIN 5480	29Z 5m30P GB3478.1	160	180	429	240	315	98	260	B
EP316	670	1705 DIN 5480	33Z 5m30P GB3478.1	180	180	275	260	400	145	265	B
EP317	695	2005 DIN 5480	39Z 5m30P GB3478.1	200	260	352	260	415	152	318	B
EP318	800	2205 DIN 5480	43Z 5m30P GB3478.1	250	220	340	330	500	155	305	B
EP319	940	2605 DIN 5480	51Z 5m30P GB3478.1	280	350	470	380	550	210	440	B
EP321	1100	3008 DIN 5480	59Z 5m30P GB3478.1	340	390	500	540	650	250	440	B
