Hot Selling for Nc Lathe 50kw Spindle Unit Made in China

Send Inquiry

Product Description

Motor-driven spindles are similar to belt-driven spindles, but have higher power. The power output can be up to 30 HP, and the torque produced at top speeds depends on the characteristics of the motor.
High-speed spindles for NC lathes may use a variety of lubrication systems. One popular option is grease, which requires minimal maintenance and represents a low-cost option. However, grease is not the best choice for high-speed applications, as it can break down over time at higher speeds. High-speed spindles should be lubricated with anti-oxidation and anti-corrosion additives.

Speed	1500rpm
Voltage	380V
Power	50kw
Warranty	Bearings for half year,other parts for one year

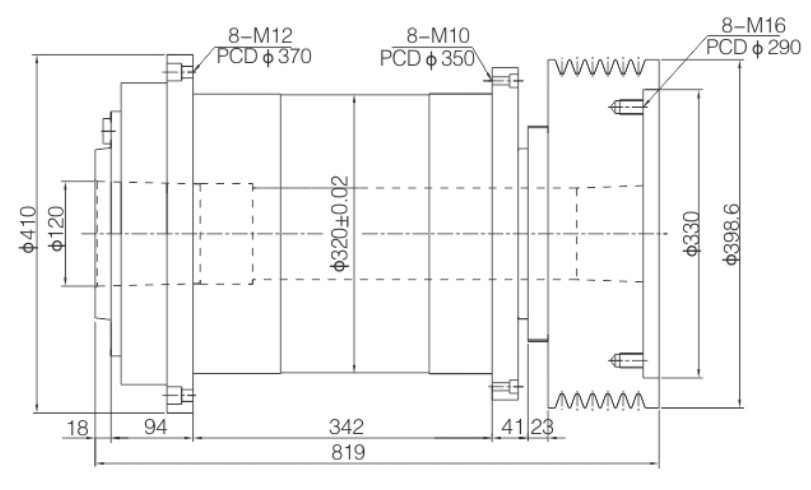

1 . For horizontal use,the water holes on the gland must be vertically downwards

2 . Inside and outside spindle taper runout ≤0.003 3 . Distance 300mm runout:near end is≤0.002,far end is ≤0.007 4 . The form of pulley and encoder can be specified by the customer 5 . Accept the special specifications of customers

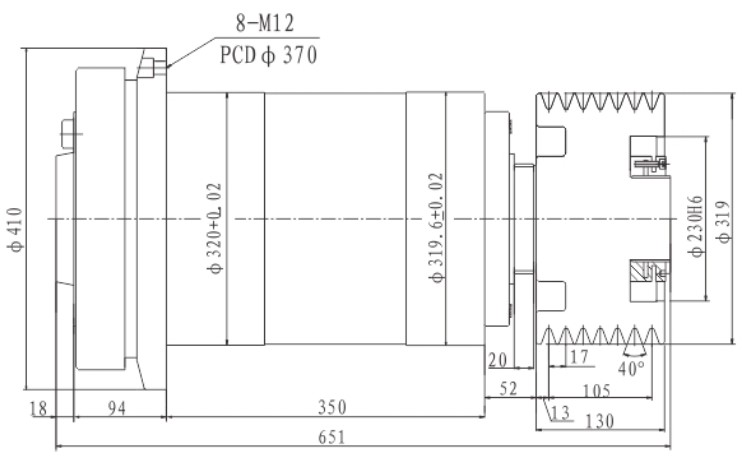

1. Spindle unit left side up vertical use

2 . Inside and outside spindle taper runout ≤ 0.003 3 . Distance 300mm runout : near end is ≤0.005,far end is ≤0.01 4 . The form of pulley and encoder can be specified by the customer 5 . Accept the special specifications of customers

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
