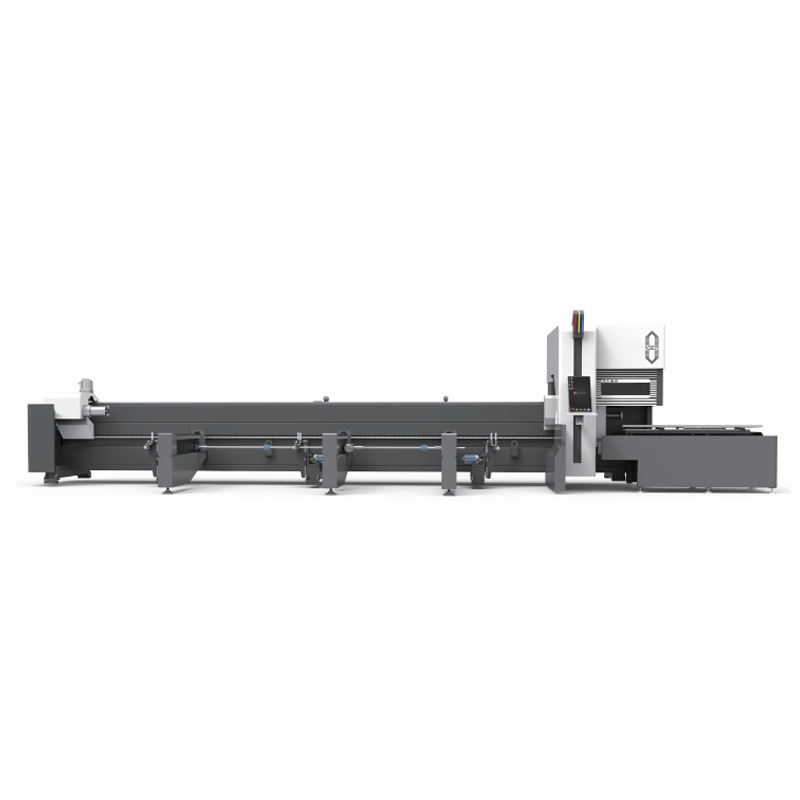

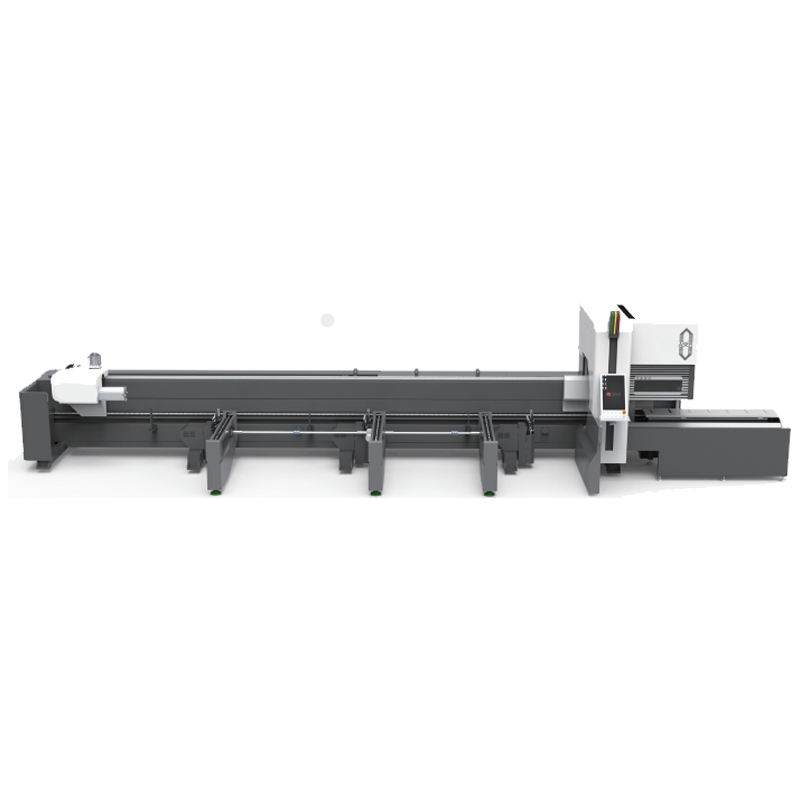

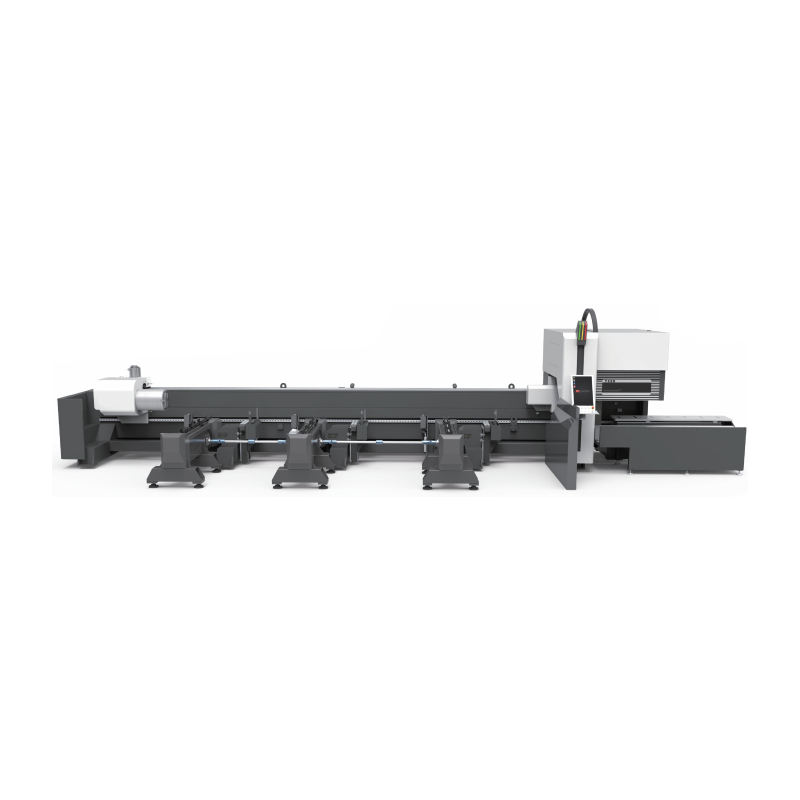

High Speed 3d Laser Pipe Cutting Machine H Beam Carbon Steel Tube Laser Bevel Cutting Machine

Advantage:* Two-chuck side mounted: The front chuck can be movable. * Short tailing: The tail material can be realized 60mm long. * High precision: The last piece can be cut with a two-chuck machine with high precision. * All-in-one machine: Integrated electric control cabinet design,simple structur......

Send Inquiry

Product Description

Advantage:

* Two-chuck side mounted: The front chuck can be movable.

* Short tailing: The tail material can be realized 60mm long.

* High precision: The last piece can be cut with a two-chuck machine with high precision.

* All-in-one machine: Integrated electric control cabinet design,simple structure, reasonable line layout and saving floor area.After receiving the machine, don't need to install the electrical line and use it directly.

Model			T120
Maximum cut pipe length			cutting length 0~6500mm
Cut pipe diameter			15~120mm (circle of workpiece)
Minimum tailings			≥60mm
X, Y axis positioning accuracy			±0.05/1000mm
X, Y axis repeat positioning accuracy			±0.03/1000mm
Acceleration			1.5G m/s²
Maximum operating speed			90 m/min
Maximum weight for each tube			≤80Kg
Chuck rated speed			150rpm
Mainframe shape			about 9700×3600×2350mm
Laser power			1000W/2000W/3000W/4000W/6000W

Follow-on Support Device

The follower support and centering clamping structure can realize the follower support of the profile and the centering clamping of the workpiece during loading by controlling the servo motor driving the rack and pinion structure, which facilitates the concentric clamping of the chuck and the profile.

Ultra Short Tailstock Cutting

Movable front chuck for stable clamping and high clamping force automatic positioning of the center of the tube, to achieve ≤60mm ultra-short cutting tail material, with more material savings.

Chain Loading Rack

Equipped with semi-automatic loading system, it supports a wide range of tube types for loading, just place multiple tubes on the conveyor belt to achieve automatic loading.

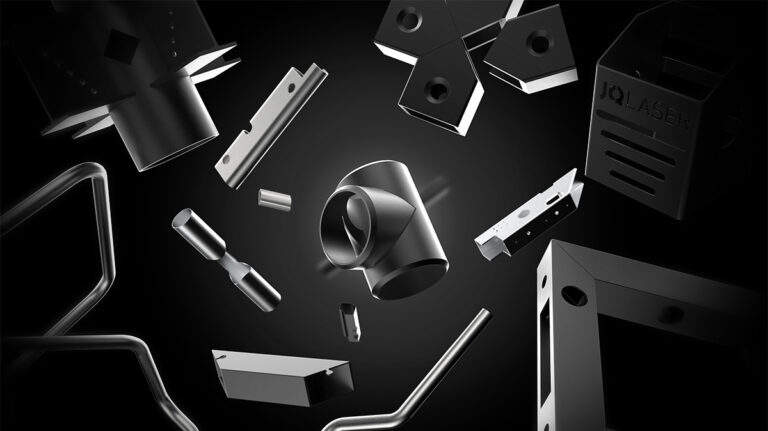

Wide Applications

Suitable for the processing of a variety of metal pipes, waist round pipes, round pipes, giant pipes, square pipes, I-beams, channel steels, D-shaped pipes, special-shaped pipes, etc.

CHOOSE YOUR LASERTUBE

Make Your Choice

Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.

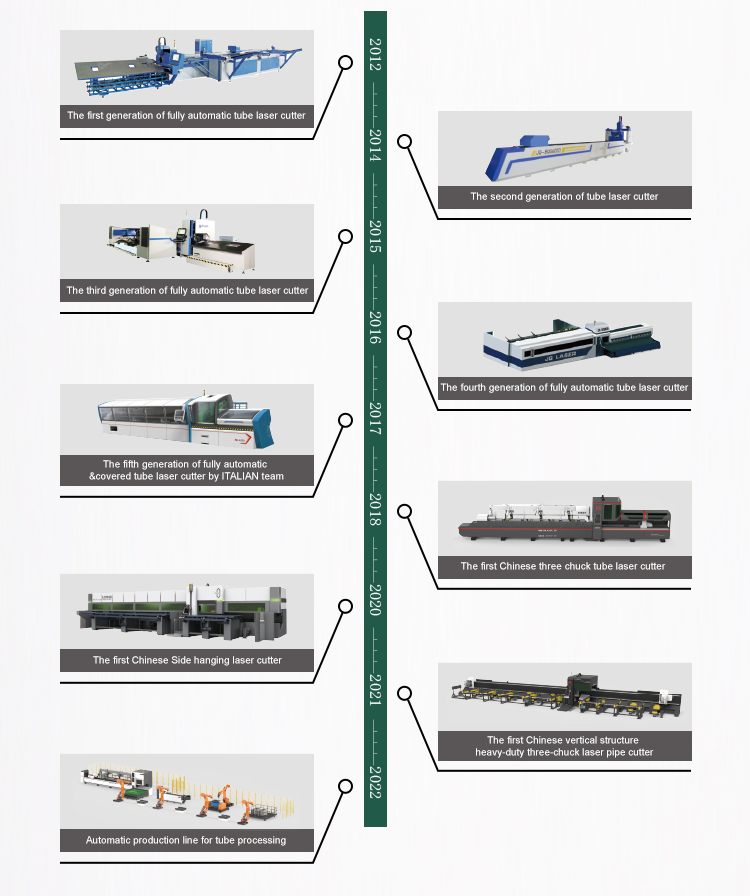

Our History

Q: Do you have CE document and other documents for customs clearance? A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source? A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power? A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong? A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty? A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
