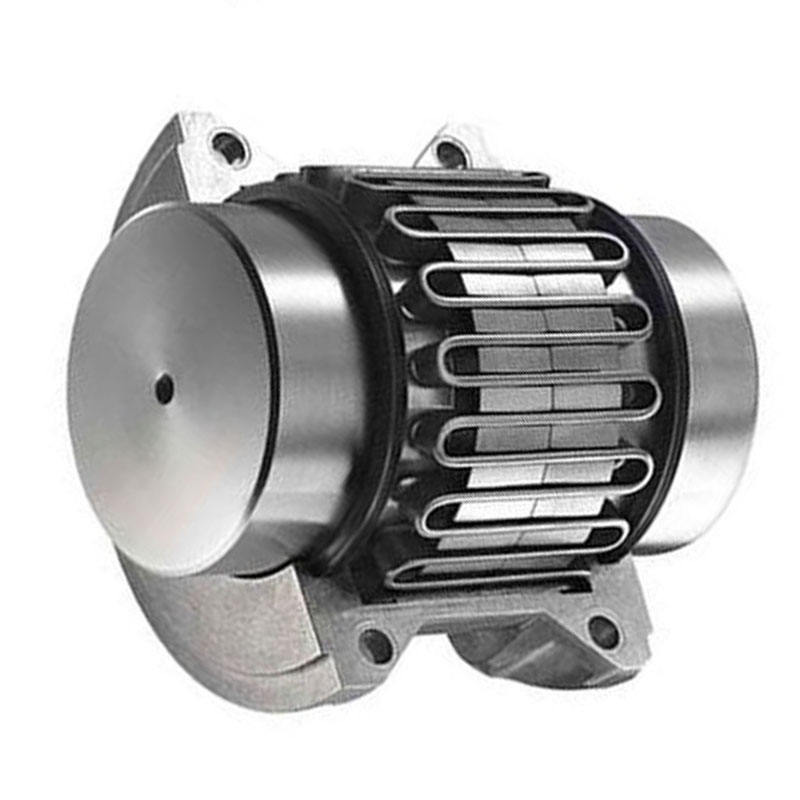

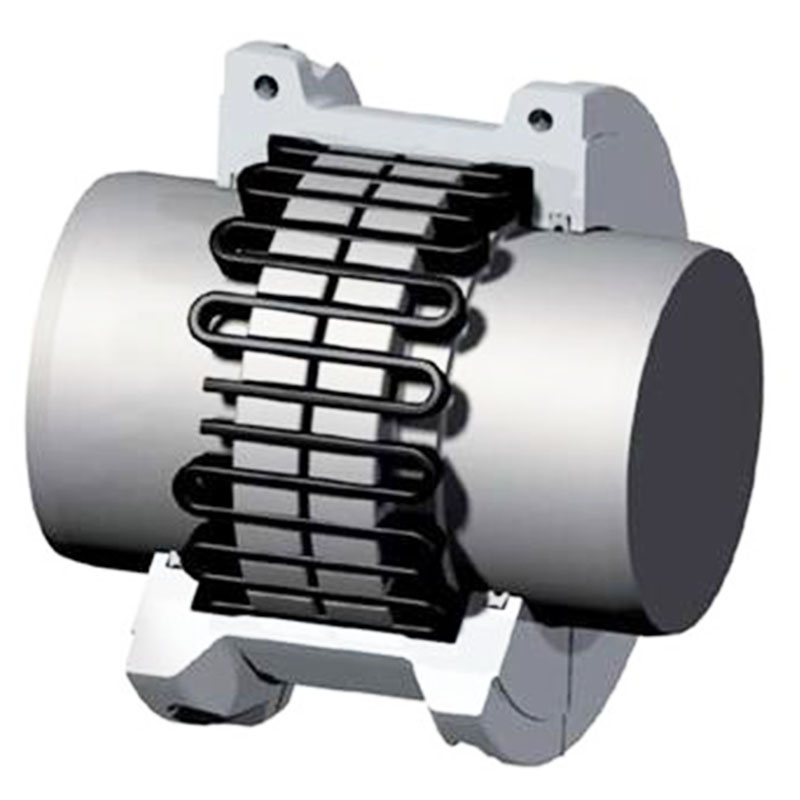

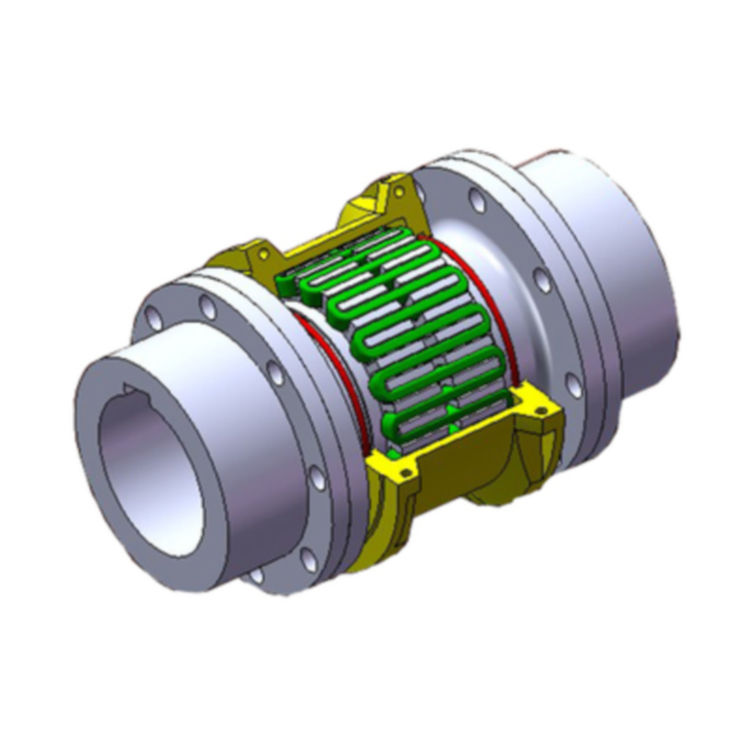

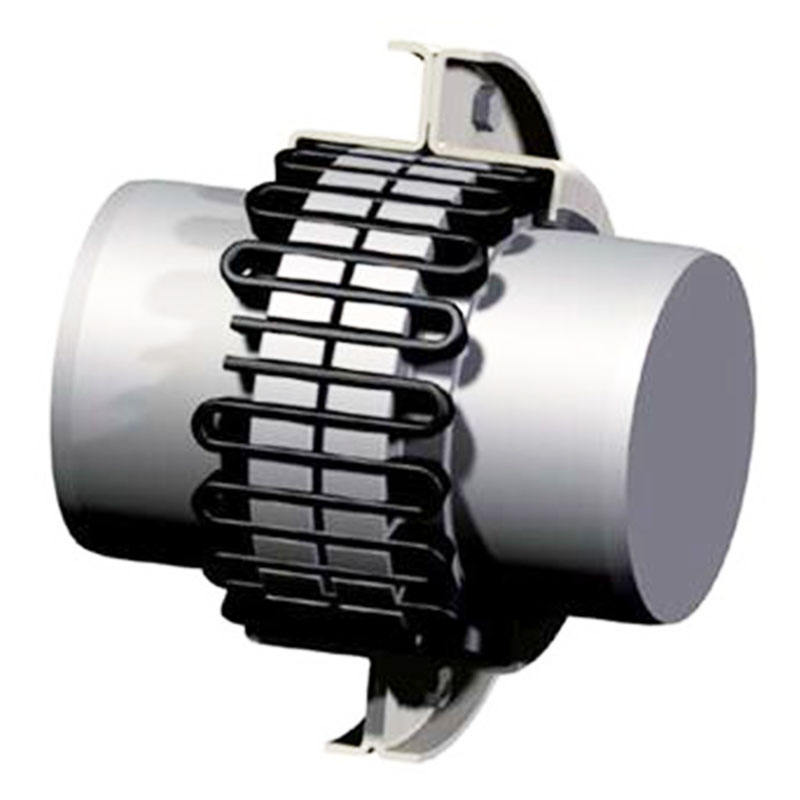

High Quality JS Series Snake Spring Grid Coupling

Desigh Feature

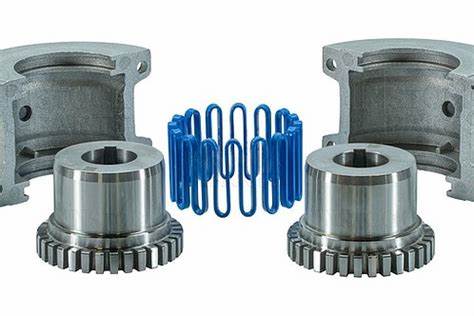

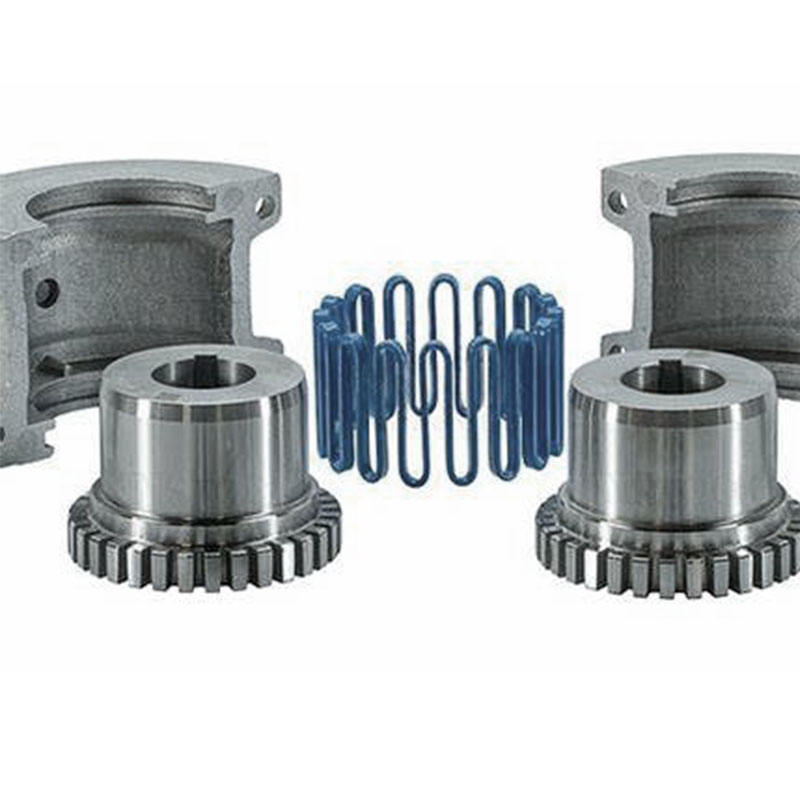

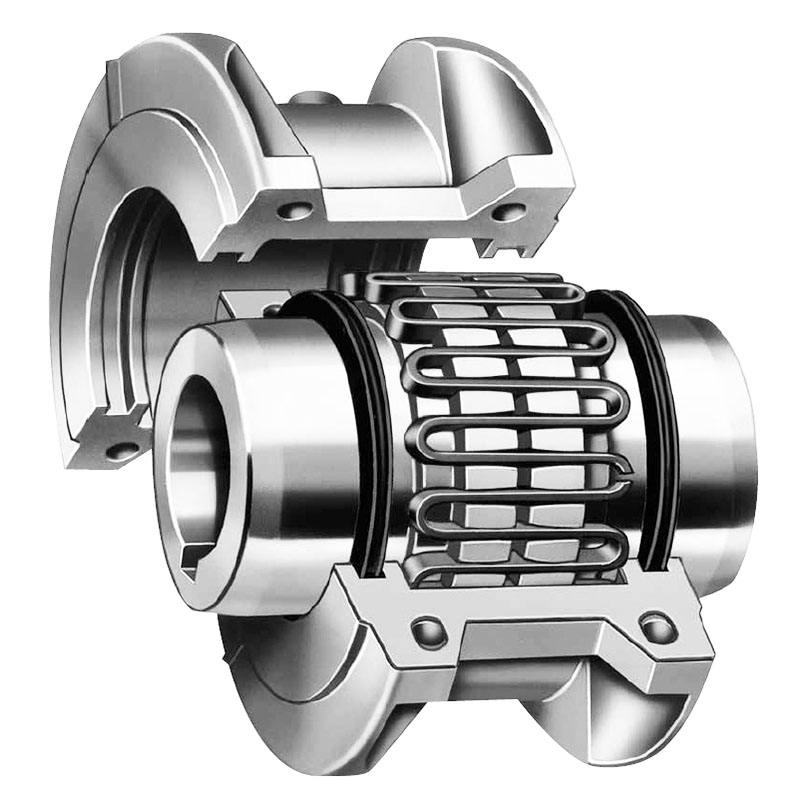

       Snake elastic coupling a kind of metal elastic rigidity coupling with advanced structure,composed by 2 half-coupling,2 half-outer casing housing ,2 seal rings and snake springs.

* Operating princple and useful life

        Snake spring are embedded on axial into 2 half-coupling's alveolus,so that connection between drive and driven shaft comes true.The axial power from drive end working on tooth flanks drive the driven end,so torque can be transferred,at the same time,resonance phenomenon avoided on large degree.At the same time,the machinery system can get well vibration reduction by elastic deformation of spring when torque is being transferred;vibration reduction can reach to 36% on average.Snake springs are manufactured by high grade spring steel from strike machining and dealing with.It has well mechanical behavior.

This kind coupling useful life is longer than other no-metal elastic part coupling.

* High transfer efficiency and safety starting

        Transfer effciency can reach to 99.4%,it can safe function on 2 times normal torque as fast over loading.

* Simple structure,it is convenient for disassemble.

        Snake spring  coupling composed by 2 to 4 parts,it is light with little parts and little volume.It is convenient for disassemble and revising than other coupling.

1.E-catalogue avaliable

2.OEM & ODM accept

3.Shipping port TIANJIN Port

4.Production Time usually in 25-30 days

5.Sample available by freight collect

7.Payment Terms T/T or  paypal

8.Small order accepted

9. After-sales service: Always ask the customer, tracking service

10.Sales Service: Profession ;Quality Control: Strict ;Logistics  Service: Speed

Company: EVER-POWER TRANSMISSION GROUP

Address:  868 Construction Street, Jizhou, Hebei, China (Mainland)

 Tel:  +86-571-88220653

 Fax: +86-571-88220651

 Mail: [email protected]

 Web:www.hzpt.com

 -

1. Q: Manufacturer ?

    A: Yes, professional factory in China

2. Q: Which area have you exported to ?

    A: Europe, America, Africa, Asia, South America and Australia

3. Q: Any advantage ?

    A: The Production area more than 4000 square meters, and 35 sets production equipments. We can supply the one-stop service from machining to welding
