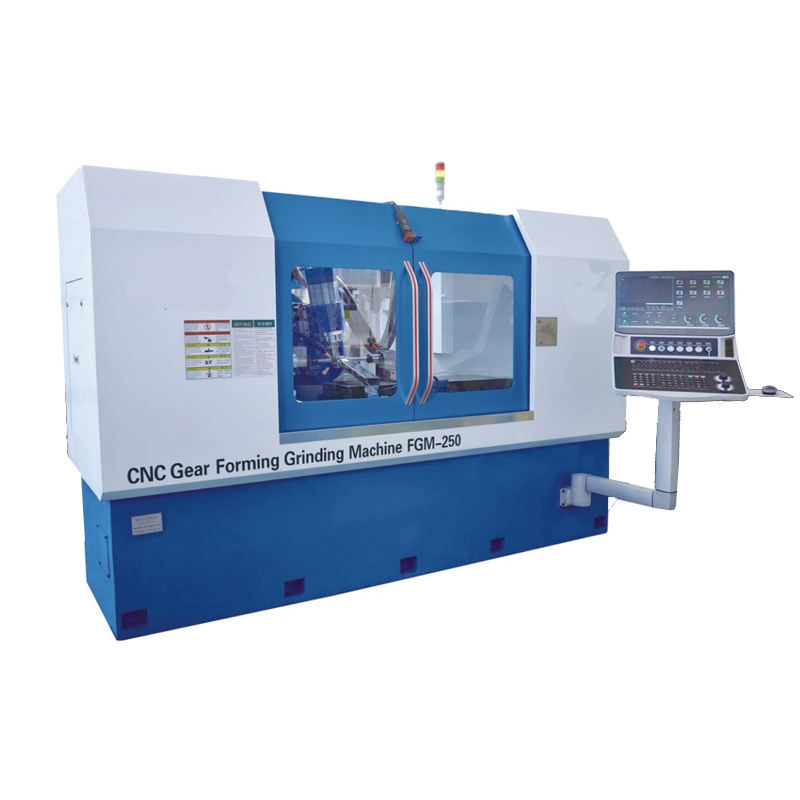

Good Quality FGM-250 CNC Forming Gear Grinding Machine

Send Inquiry

Product Description

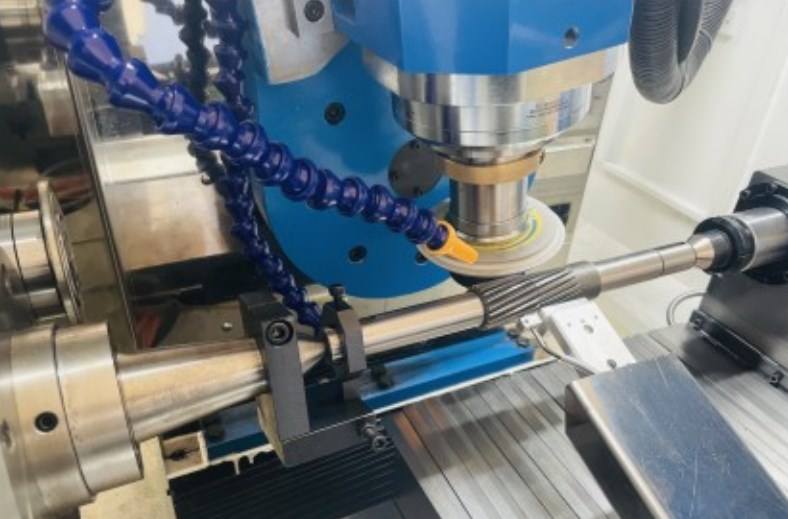

The CNC forming gear grinding machine adopts FANUC's system of five/six axis three linkage control; The gear grinding motion is completed by the linkage of a high rigidity and high torque torque torque motor (A-axis) and a linear motor (X-axis). The torque motor and linear motor simplify the transmission system, not only ensuring efficient forward and reverse continuous grinding, but also ensuring machining accuracy; The diamond roller can be adjusted online for various tooth profiles of the grinding wheel through dual direct drive linear axis (X-axis and Z-axis) interpolation combined with the self-developed GPM modification software. The grinding wheel spindle adopts a high-power and high torque electric spindle to ensure grinding efficiency and quality. This machine tool not only supports standard tooth profile machining, but also supports CAD tooth profile import function for special teeth.
Applicable scope Gear with fewer teeth, oil pump gear, high-precision shaft gear, and high-precision plug gauge, etc.

	FGM-250
Center Height	240mm/130mm
Center Distance	700mm
Worm Diameter	Φ250mm
Maximum Effective Length	650mm
Maximum modulus	M0.5-M8
Heads	Any
Lead Angle	±45°
Max.Grind Depth	18mm
Accuracy	DIN3974 Teeth&Helix Level 5
Table Transverse Strokt	X=820mm
WheelLongitudinal Stroke	Z = 340mm
Grinding Spindle	18.5kw, Max.15000rpm
Max.Wheel	Φ250xΦ50x25mm
CNC System	FANUC Oi-MF PIus
Power	3AC 380V 50KVA
Main Machine Size	3000x2000x1900mm
Main Machine Weight	6000kg

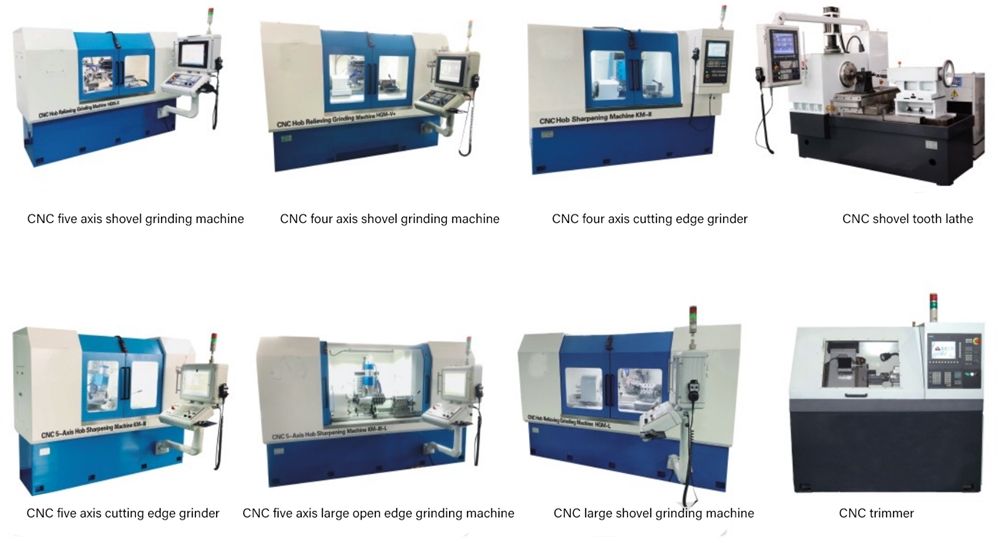

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
