Product Description

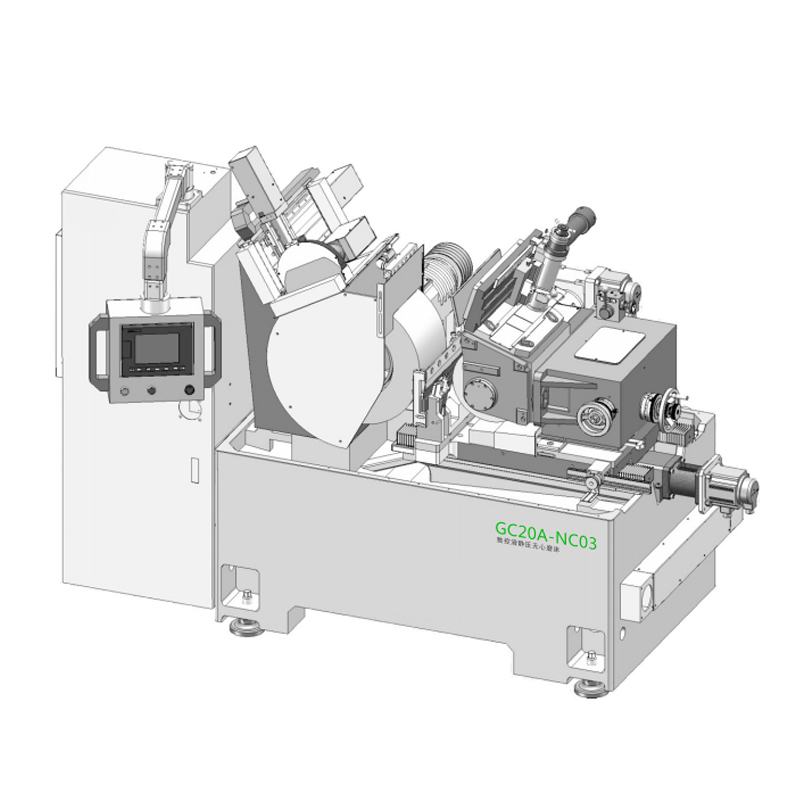

GC20A-NC01/003
GC18A-NC01/03 Precise CNC Hydrostatic Centerless Grinder

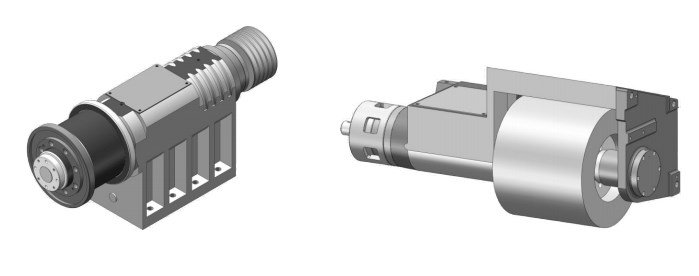

1 , High precision ground grinding wheel , regulating wheel spindles and bearings , assembled withadvanced technology by professional handcraft to guarantee 0 . 0015mm rotating accuracy , high loadingcapacity and stability .

2 , Allot steel spindle with hardness over 62HRC and high precision grinding process , guarantee highprecision , high rigidity

3 . High quality casted machine bed with heat treatment and natural timing process to guarantee stableinternal structure . Perfect dynamic design and outstanding material provide excellent rigidity and stability .

4 . Feeding system driven by high precision ball screw and servo motor of high resolution provides a positionaccuracy of 0 . 001mm and repeated accuracy 0 . 001mm . Online correction function available .

5 , Semi automatic dressing for grinding wheel and regulating wheel , hydraulic driven on X axis with stablemovement , no backlash . Manual feeding on Z axis , resolution of 0 . 01mm

	GC18A-NC01/03	GC20A-NC01/03
Grinding range ( diameter )	φ1-φ50mm	φ1-φ50mm
Grinding wheel size ( 0DXWXID )	φ455255228.6mm	φ510255228.6mm
Adjustment wheel size	φ305255111.2mm	φ305255111.2mm
Grinding wheel rotation speed	100-1500rpm	100-1350rpm
Adjustment wheel rotation speed	0-250rpm	0-250rpm
Grinding wheel drive motor	11kw	15kw
Adjustment wheel drive motoroil pressure	2.2kw	2.2kw
pump drive motor	1hp	1hp
Cooling pump drive motor	1/4hp	1/4hp
Adjustment wheel feeding graduation	serve feeding value min setting value	0.0005mm
Serve feeding value min setting value	0.0005mm	0.0005mm
Dressing device feeding graduation	2mm/rotation 0/01mm/graduation
Adjustment wheel tilting angle	+5~-3	+5~-3
Adjustment wheel rotation angle	±5	±5
Mechanical size	226519001650mm	226519001650mm
Machine weight	3900kg	4000kg

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

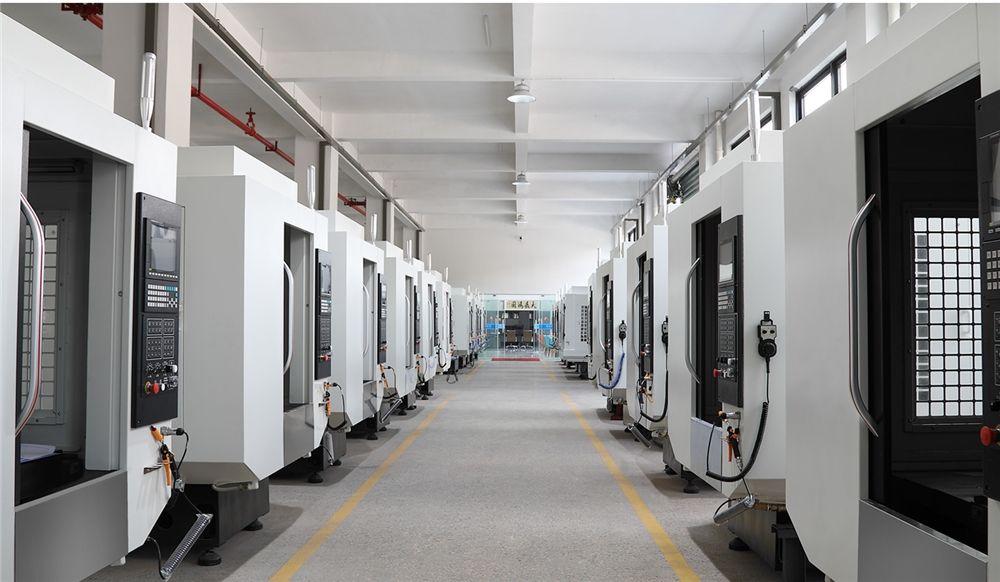

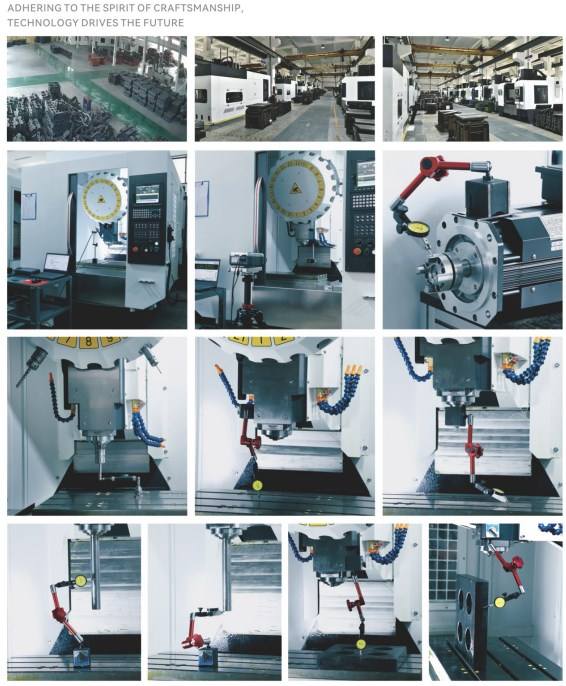

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
