Flexible Mechanical Jaw Shaft Couplings With Elastomer D30 L40 LX-30C 3040

Raydafon Group's Flexible Mechanical Jaw Shaft Couplings With Elastomer D30 L40 LX-30C 3040 deliver reliable torque transmission in industrial applications, featuring durable elastomer for smooth operation and reduced vibration. Ideal for engineers and manufacturers, it ensures efficiency and longevity, solving misalignment issues with superior performance. Stand out with precision engineering and trusted quality, enhancing your machinery's reliability.

Send Inquiry

Product Description

Flexible Mechanical Jaw Coupling With Elastomer D30 L40 LX-30C 3040

Product Description

Flexible Mechanical Jaw Shaft Couplings With Elastomer D30 L40 LX-30C 3040

Features:

1.Item Name: Plum-Type Coupling (Clamp Type)

2.Sleeve Material: Polyurethane

3.Body Material: Aluminum Alloy

4.Shaft Usage: 24mm/25mm/26mm/28mm/30mm/32mm/35mm/38mm/40mm/45mm

0.945"/0.984"/1.024"/1.102"/1.181"/1.260"/1.378"/1.496"/1.575"/1.772"

Data:

Plum coupling common size data
Model no.	Size(mm)		Hole size (mm)		Torque(N.m)		Max speed	Screw sizes
	Diameter	Length	Min	Max	Rated	Max	(rpm)
LX-20C 2030	20	30	4	8	5	10	25000	M2.6
LX-25C 2530	25	30	5	10	9	18	17000	M3
LX-30C 3035	30	35	6	15	12.5	25	12600	M4
LX-30C 3040	30	40
LX-40C 4050	40	50	8	19	17	34	10000	M5
LX-40C 4055	40	55
LX-40C 4066	40	66
LX-45C 4566	45	66	10	24	24	32	9000	M6
LX-45C 4578	45	78
LX-45C 4585	45	85
LX-55C 5566	55	66	12	28	60	120	7000	M6
LX-55C 5578	55	78
LX-55C 5590	55	90
LX-65C 6580	65	80	19	38	160	320	5800	M8
LX-65C 6590	65	90
LX-65C 65110	65	110
LX-80C 8066	80	66	24	45	320	640	4600	M10
LX-80C 8088	80	88
LX-80C 80114	80	114

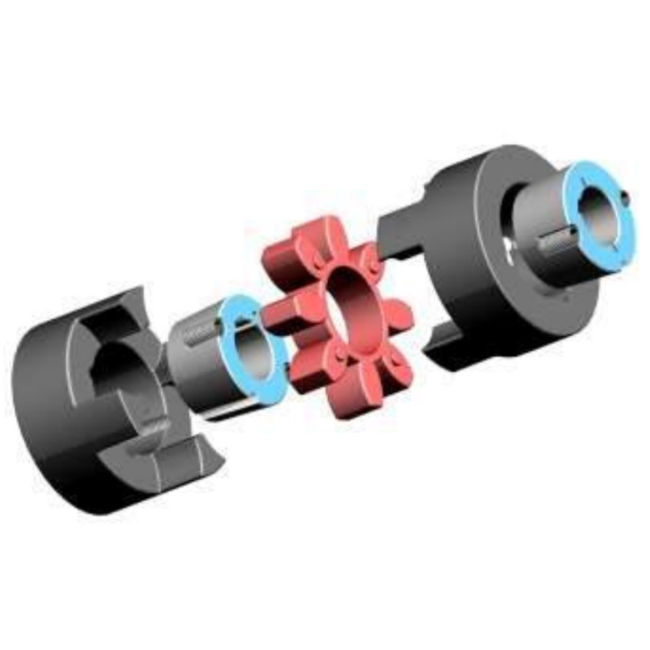

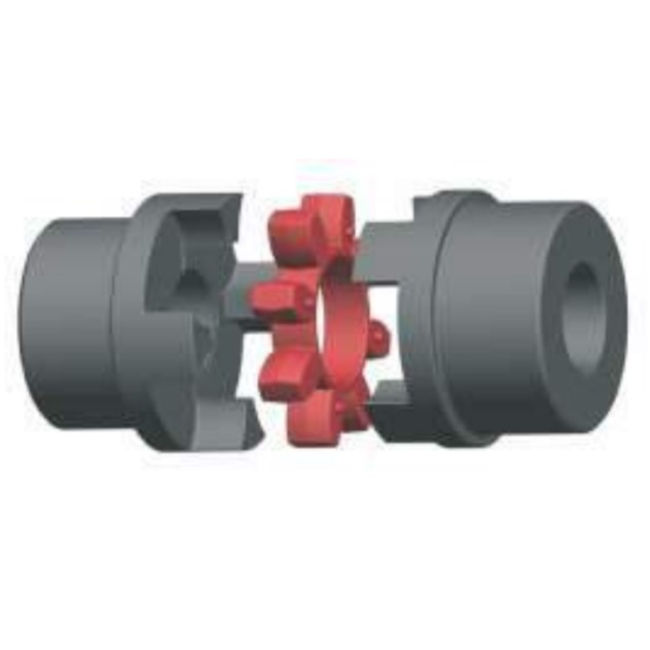

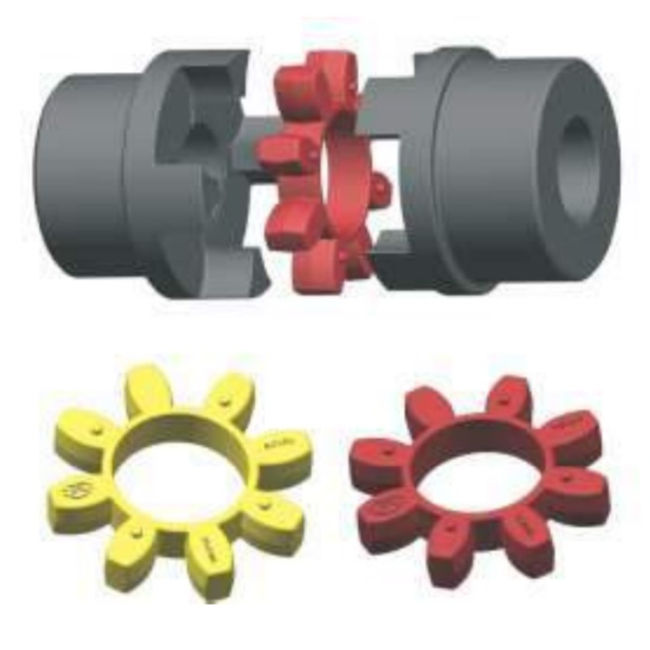

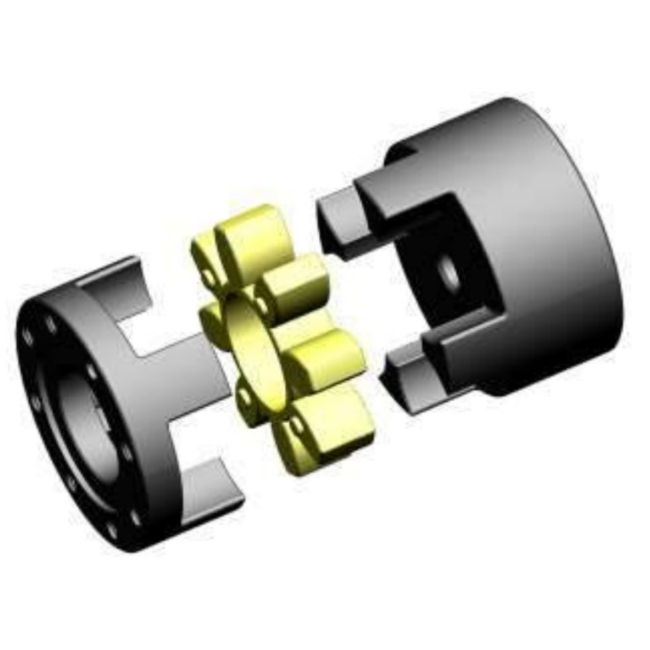

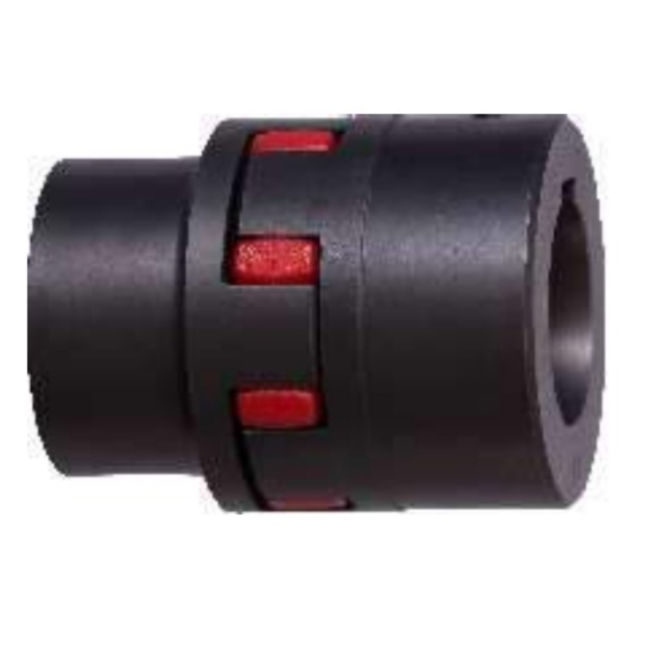

Pictures:

Company Information

Certifications

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
