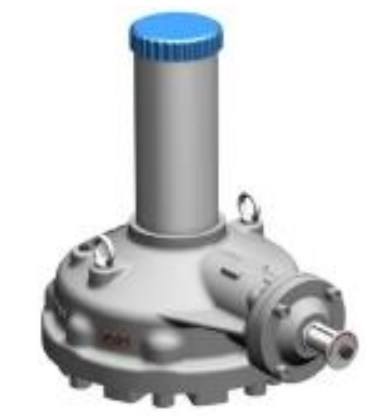

Factory Sale Various Standard Flange F30 Type B Two Stage Standard Type BH-V SERIES BEVEL GEAR BOX
Product introduction:There are five series of multi turn valve driving devices developed by our company, including standard bh-v series, RK & 2CK series with larger stem, domestic Ba series, thrust free light 7bh series and three input rmmd series. The shell is mainly made of ductile iron, cast ......
There are five series of multi turn valve driving devices developed by our company, including standard bh-v series, RK & 2CK series with larger stem, domestic Ba series, thrust free light 7bh series and three input rmmd series. The shell is mainly made of ductile iron, cast steel, etc. the flange F07 to F60 connected with the valve has a maximum output torque of 50000Nm.
Series features
-The series of standard type, complete models, flange number variety, better match the valve;
-The main materials of the products are cast steel, nodular cast iron, etc; -This series of models are complete, and there are many kinds of speed ratio, such as manual, electric, etc,It can be equipped with manual lock or sprocket; -The standard of waterproof grade can reach IP65, and IP68 can be customized; -Ordinary use environment - 20 degrees to + 120 degrees, can be customized - 30 degrees, - 40 degrees, - 59 degrees and other low temperature environment; -This series adopts arc tooth design, supports all adopt bearing, transmission is more flexible, high efficiency.
Model description:

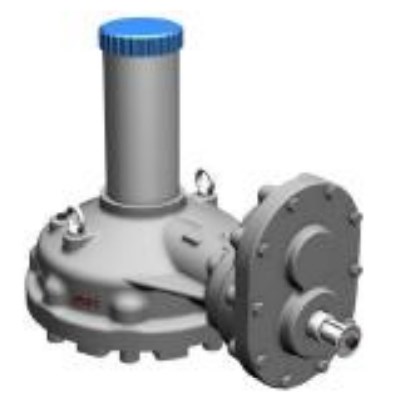

-Bh-V number: single stage, such as BH-V0 -Bh-V number -S: double stage, s is reducer code, such as BH-V35-1S -Bh-V SERIES BH is preceded by D letter to indicate electric, such as DBH-V0, DBH-V35-1S, etc., indicating that the input is electric
Scope of application:
The product is suitable for gate valve, globe valve and other linear stroke valves. It is widely used in various harsh climate areas and industrial sites with special temperature. The design structure is solid and meets the requirements of industrial level.
Scope of application:
-Product input in various forms, manual, manual with lock, sprocket, or electric, with electric flange can be iso5210 or JB2900; -The products are made of standard ball and cast steel, or customized low temperature steel or stainless steel; -Ambient temperature: standard type - 20 ~ + 120 is suitable for normal temperature environment, and can also be customized for low temperature environment, such as - 30, - 40, - 59, etc; -The standard protection grade is IP65, and IP67 and IP68 can be customized.
Electric drive
Electric flange:ISO5210
Manual belt lock
E Side
For more details, please click here to contact us!
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
