Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

The Weld Connector-AS hydraulic fitting is a type of hydraulic connector used in hydraulic systems for joining and securinghydraulic pipes or hoses. It is designed specifically for welding onto hydraulic systems, providing a permanent and secureconnection.Weld Connector-AS hydraulic fittings are typ......
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting


The Weld Connector-AS hydraulic fitting is a type of hydraulic connector used in hydraulic systems for joining and securing
hydraulic pipes or hoses. It is designed specifically for welding onto hydraulic systems, providing a permanent and secure
connection.
Weld Connector-AS hydraulic fittings are typically made of high-quality materials such as stainless steel or carbon steel,
ensuring durability and resistance to corrosion. They are available in various sizes and configurations to accommodate different hydraulic system requirements.

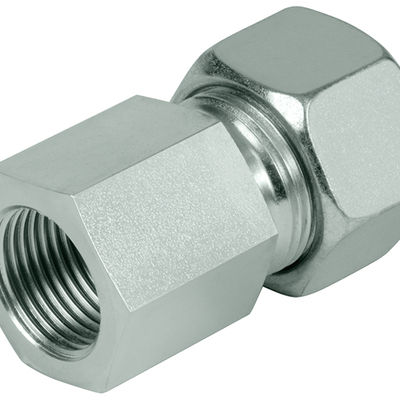

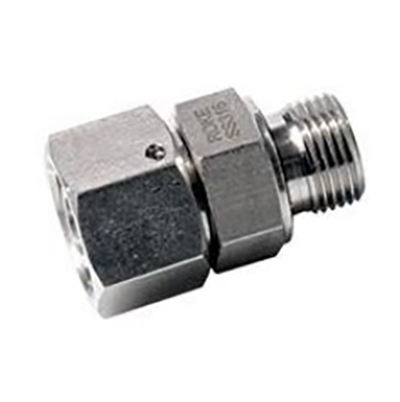

Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting
GAI-M

Part no.
Series Working Pressure
(bar/psi)
Tube

o.d.
d1 BSPP
thread
d
l1
l2
L
S1
S2
-GAI06LM

L light 315 bar 4560 psi
6
M10x1
4
19.5
12.5
34
14
14
-GAI08LM
8
M12x1.5
6
24
17
39
17
17
-GAI10LM
10
M14x1.5
8
25
17
40
19
19
-GAI12LM
12
M16x1.5
10
26
17
41
22
22
-GAI15LM
15
M18x1.5
12
28
17
43
24
27
-GAI18LM
18
M22x1.5
15
29.5
19
46
30
32
-GAI22LM
160 bar
2320 psi
22
M26x1.5
19
34.5
21
51
32
36
-GAI28LM
28
M33x2
24
37.5
24
54
41
41
-GAI35LM
35
M42x2
30
40.5
26
62
55
50
-GAI42LM
42
M48x2
36
42
28
65
60
60
-GAI06SM

S heavy 400 bar
5800 psi
6
M12x1.5
4
26
17
41
17
17
-GAI08SM
8
M14x1.5
5
26
17
41
17
19
-GAI10SM
10
M16x1.5
7
26.5
17
43
22
22
-GAI12SM
12
M18x1.5
8
27.5
17
44
24
24
-GAI14SM
14
M20x1.5
10
31
19
49
27
27
-GAI16SM
16
M22x1.5
12
30.5
19
49
30
30
-GAI20SM
315 bar
4560 psi
20
M27x2
16
34.5
22
56
36
36
-GAI25SM
25
M33x2
20
37
24
61
41
46
-GAI30SM
30
M42x2
25
41.5
26
68
55
50
-GAI38SM
250 bar
3625 psi
38
M48x2
32
43
28
74
60
60
-GAI16SR
16
G 1/2
12
31.5
20
50
30
30
-GAI20SR
315 bar
4560 psi
20
G 3/4
16
34.5
22
56
36
36
-GAI25SR
25
G 1
20
37.5
24.5
62
41
46
-GAI30SR
30
G 1 1/4
25
42
26.5
69
55
50
-GAI38SR
250 bar
3625 psi
38
G 1 1/2
32
43.5
28.5
74
60
60
Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.
1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting
Advantages of Female Connector GAI-M hydraulic fittings 1. Regular Inspection: Conduct routine inspections of the fitting to check for signs of damage, wear, or leaks. Look for cracks, corrosion, or any loose connections. Promptly address any issues that are identified. 2. Cleanliness: Keep the fitting and the surrounding area clean from dirt, debris, and contaminants. Use compressed air or lint-free cloths to remove any particles that could affect the fitting's performance. 3. Lubrication: Apply a suitable lubricant to the fitting to minimize friction and enhance sealing effectiveness. Refer to the manufacturer's recommendations for the appropriate lubricant type and frequency of application. 4. Proper Torque: Ensure that the fitting is tightened to the recommended torque specifications. Over-tightening can cause damage, while under-tightening may result in leaks. Use a torque wrench for accurate and consistent tightening. 5. Avoid Overloading: Do not exceed the recommended pressure and load limits for the fitting. Overloading can lead to premature wear, leaks, and potential failures. Adhere to the manufacturer's guidelines for the specific fitting's maximum operating parameters. 6. Seal Replacement: Over time, the seals in the fitting may wear out or deteriorate. Regularly inspect and replace worn or damaged seals to maintain a proper seal and prevent leaks. 7. Manufacturer Guidelines: Follow the maintenance instructions and guidelines provided by the fitting's manufacturer. These guidelines may include specific recommendations or precautions for optimal maintenance. By following these maintenance practices, you can ensure the longevity and reliable performance of your weld connector-AS hydraulic fitting. Regular inspections and adherence to manufacturer guidelines will help identify and address any issues early on, promoting efficient hydraulic system operation.
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting
EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs
Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers
Durable Using Various Hydraulic Cylinder Parts Parker Female Connector-GAI-M Hydraulic Fitting

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing
All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
