Customized Nmrv040 Transmission System Pneumatic Automated Motorized Copper Wire Stripping Machine for Home Use

Customized nmrv040 Copper Wire Stripping MachineThe Customized NMRV040 Copper Wire Stripping Machine is a machine specifically designed to strip the insulation from copper wire, with the NMRV040 Series Worm Gear Reducer (or "reducer") as a key component in its drive system. "Customize......

Send Inquiry

Product Description

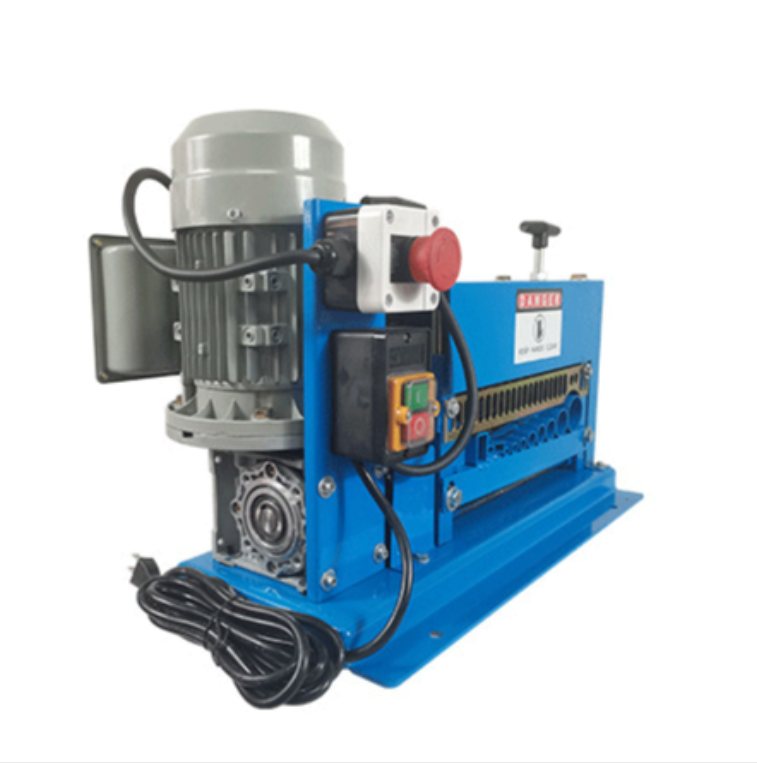

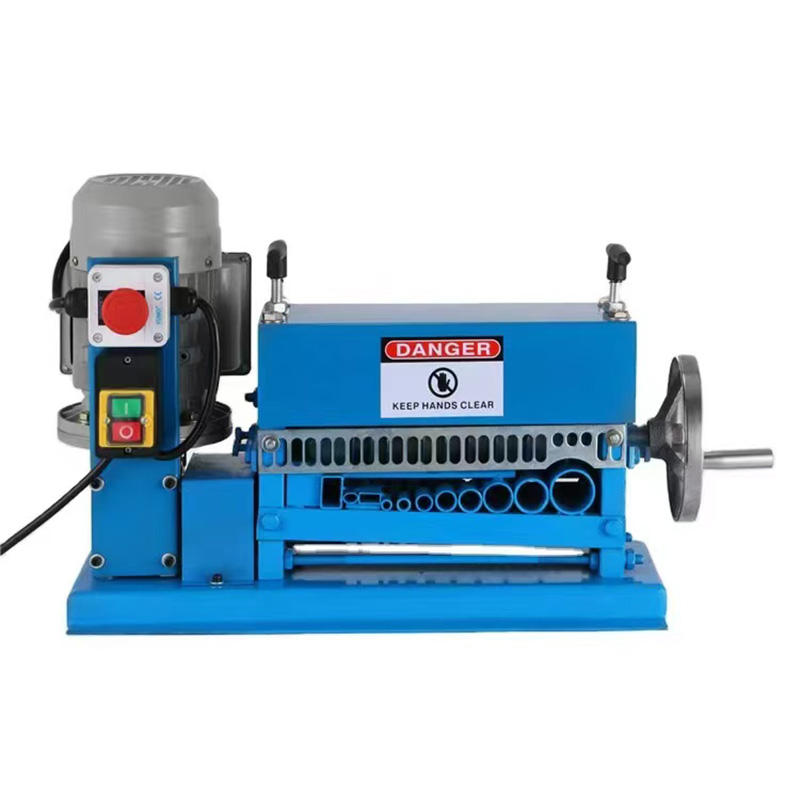

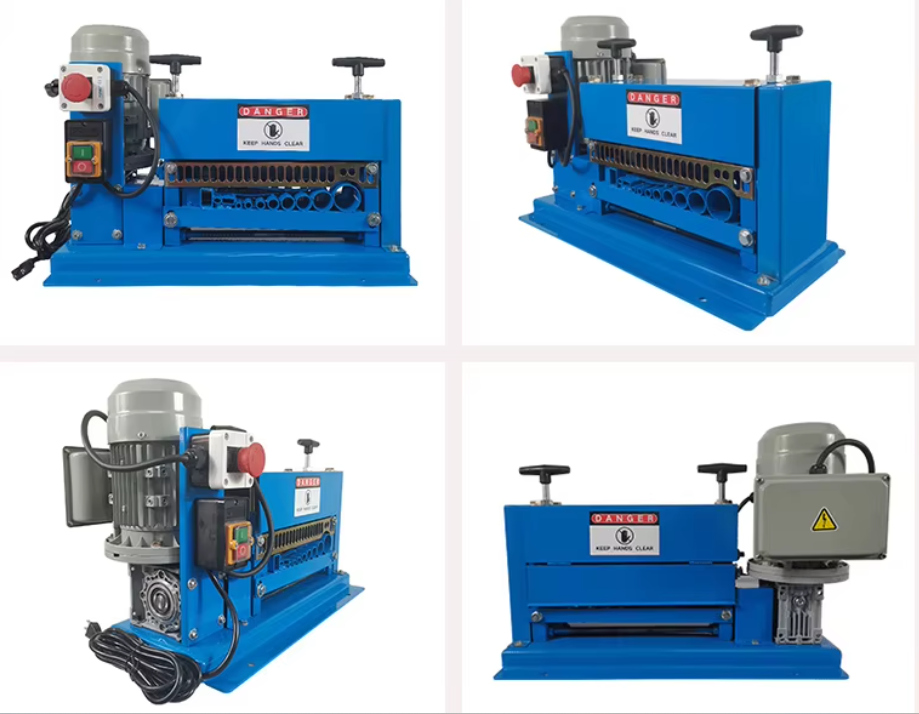

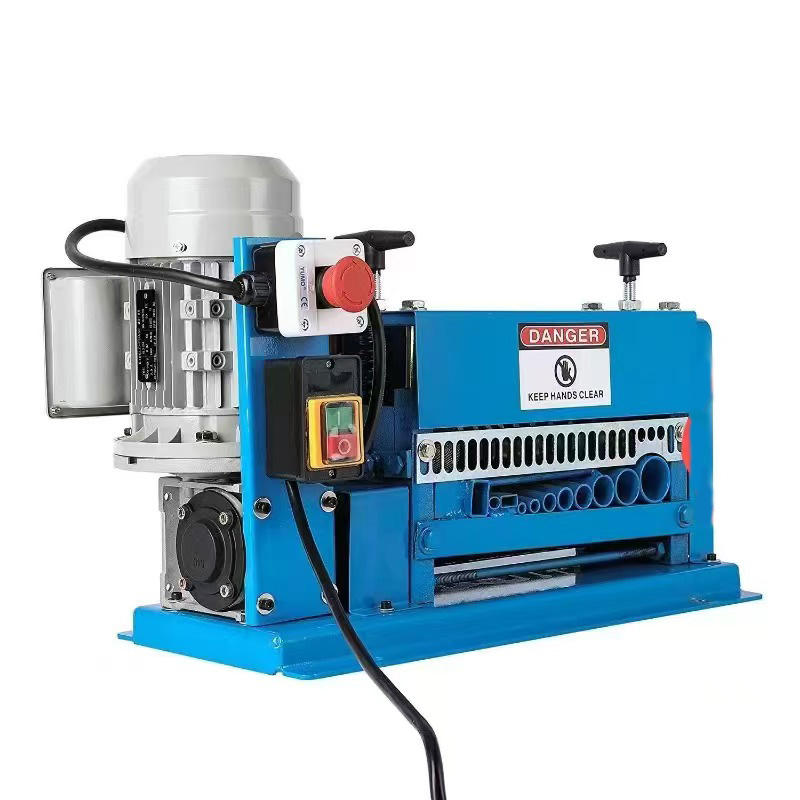

Customized nmrv040 Copper Wire Stripping Machine

The Customized NMRV040 Copper Wire Stripping Machine is a machine specifically designed to strip the insulation from copper wire, with the NMRV040 Series Worm Gear Reducer (or "reducer") as a key component in its drive system. "Customized" means the machine is tailored for a specific wire type, size, or stripping requirement, while the NMRV040 refers to a specific size and type of worm gear reducer, known for its compact design and efficient power transmission.

Advantages

Optimized for specific needs: Precision stripping: Customized design allows the machine to be perfectly calibrated to a specific wire gauge (thickness) and insulation type, ensuring clean, damage-free, and highly accurate stripping. This prevents damage to the copper wire, maximizing material recovery. Improved efficiency: Tailored cutting and feeding mechanisms allow the machine to run the target wire at optimal efficiency, reducing waste and increasing yields. Reduced Labor: Automation of the wire stripping process significantly reduces the need for manual wire stripping, which is time-consuming, imprecise and potentially dangerous. Compact Space-Saving Design (from NMRV040): The compact size of the NMRV040 worm gear reducer allows for a smaller overall machine footprint, making it ideal for workshops or production lines where space is limited. High Torque and Smooth Operation (from NMRV040): Worm gear reducers like the NMRV040 are able to provide high torque multiplication at relatively low output speeds. This is essential for cleanly cutting through tough insulation. Due to the nature of the worm gear meshing, they are able to achieve smooth and quiet operation, which is very beneficial in a production environment. Reliability and Durability: NMRV series gearboxes are known for their rugged construction, ensuring overall reliability and long life of the wire stripper, even under continuous use. Custom machines often feature high-quality components tailored to specific tasks, which improves durability. Improved safety: Automated and precise wire stripping reduces the risk of cuts and injuries associated with manual wire stripping.

Applications

Wire and Cable Manufacturing: Used to remove insulation from specific sections of wire during the production process or to prepare wire ends for connectors. Cable Recycling and Scrap Metal Industry: This is an important application area. Wire strippers are essential to recover valuable copper from a variety of scrap cables, such as household wire, communication cables, industrial power cables, automotive wiring harnesses. Recovered pure copper can be sold at a high price. Electronics Manufacturing & Repair: Prepare wires for soldering or crimping to electronic components or circuit boards, ensuring clear connections. Electrical Contracting & Installation: Used to strip wire insulation in the field or in the workshop for electrical installation, panel wiring or custom cable assemblies. Automotive Industry: Recover copper from old automotive wiring harnesses or prepare new harnesses during the manufacturing process. Telecommunications Industry: Stripping insulation from communications cables for connection points. Appliance Manufacturing and Repair: Preparing internal wiring for new appliances, or for repair and recycling of old appliances.

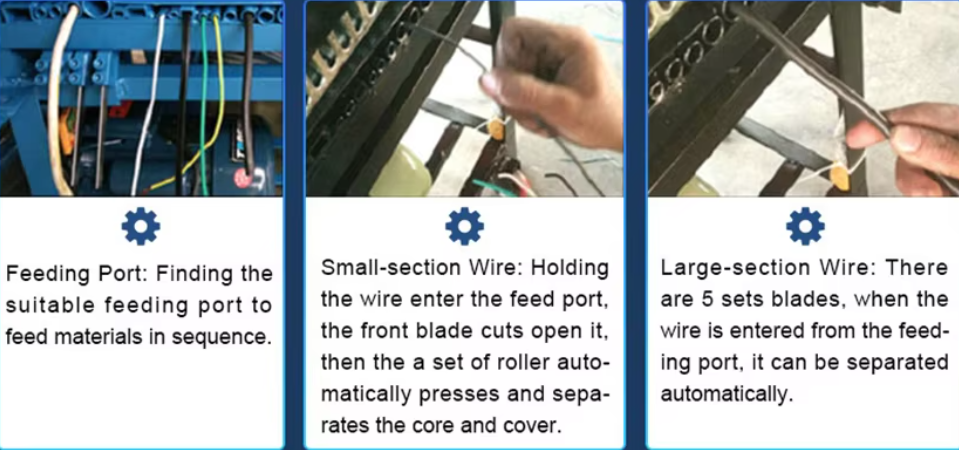

How a Customized NMRV040 Copper Wire Stripping Machine Works

1. Power Transmission via NMRV040 Worm Gear Reducer The NMRV040 Worm Gear Reducer is the heart of the power transmission system. Motor Connection: An AC or DC motor is connected to the input shaft of the NMRV040 reducer. The motor provides the initial high speed, low torque rotation. Torque Increased by Reduced Speed: The internal worm gear mechanism of the NMRV040 unit significantly reduces the motor speed while increasing its torque. For example, if the motor is running at 1500 RPM and the reducer has a 30:1 ratio, the output shaft will be running at 50 RPM but with 30 times the torque of the motor. Controlled Output: The controlled, high torque output of the NMRV040 reducer is then transmitted to the stripping mechanism, ensuring smooth, powerful, and safe operation when cutting and pulling insulation. The “customized” aspect may involve a specific gear ratio or motor type that is tailored for a specific wire size or processing speed. 2. Wire Feed Mechanism The machine needs to continuously feed wire into the stripping area. Rollers: A set of wire feed rollers (often grooved or textured for grip) pull the wire from the spool or coil. Guide: The wire guide ensures that the wire enters the stripping mechanism at the correct angle and position. 3. Cutting and Stripping Mechanism This is where the actual insulation stripping occurs. The type of mechanism can vary, but usually involves a blade. Adjustable Blade/Cutter: One or more sharp blades are precisely set to cut through the insulation without damaging the inner copper conductor. These blades are usually adjustable to accommodate different wire gauges (diameters). Cutting Action: The blades slice through the insulation as the wire passes through. In some designs, a set of rollers or a pulling mechanism pulls the wire through, separating the cut insulation from the conductor. Shearing/Slitting: For tougher or thicker insulation, the blades may perform a shearing or slitting action, effectively opening the insulation along the length of the wire. 4. Separation and Collection Once the insulation is cut, it needs to be separated from the copper wire. Pulling/Stripping: Rollers or other mechanisms continue to pull the wire, allowing the cut insulation to be stripped. Output Channels: Separate channels or collection boxes are often used to handle the stripped wire and waste insulation for easy recycling or disposal. 5. Control System The control panel allows the operator to manage the machine's functions. Switches: Used to start and stop operations. Speed Control: Used to fine-tune the stripping speed, which is especially important for different types of insulation or wire gauges. Blade Adjustment: Manual or automatic control used to adjust blade depth and gap. Safety Features: Emergency stop buttons, safety guards, and overload protection devices are essential for operator safety.

We also provide matching gearboxes.

For more details, please click here to contact us!

Packaging

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
