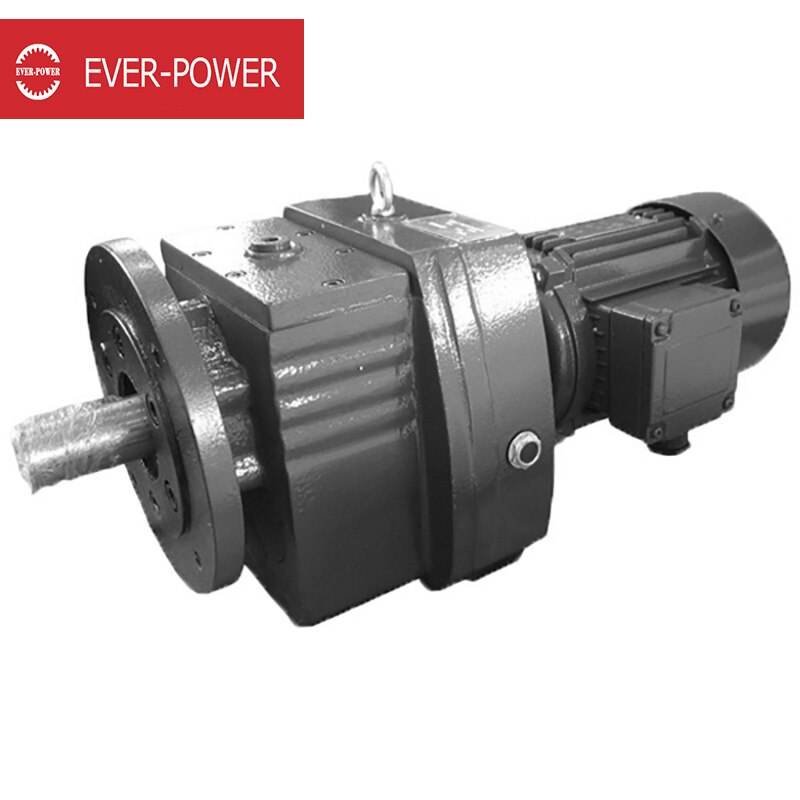

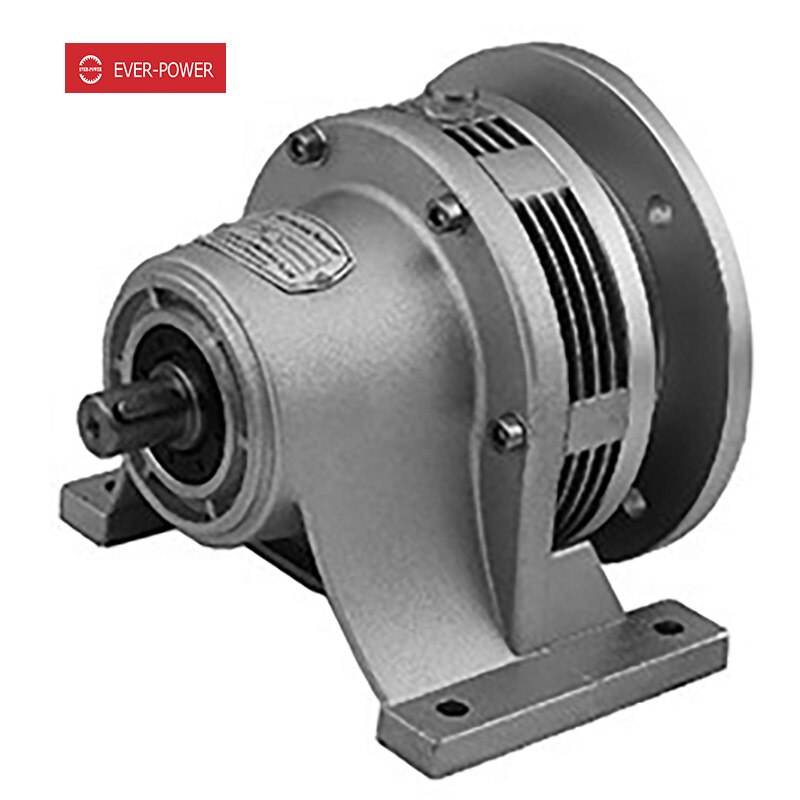

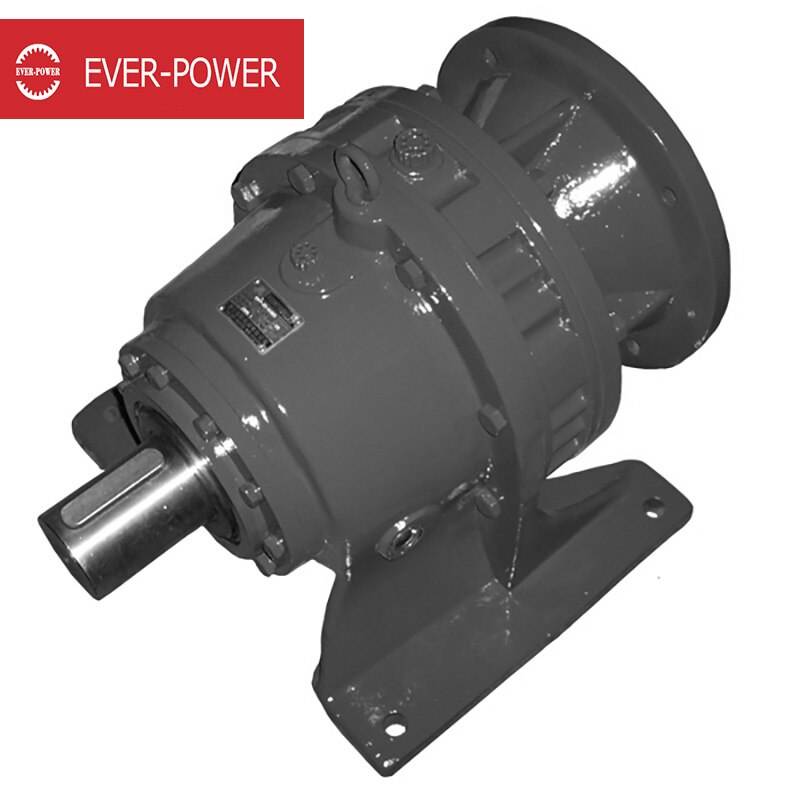

Product photos:
SC series reducer Technical data
| Model | Shaft Dia.(mm) | Center Height | Output Flange Dia. | Power | Ratio | Permitted Torque | Weight | |
| Solid | Hollow(H7) | (mm) | (mm) | (kw) | (Nm) | (KGS) | ||
| SC37 | 20k6 | 20 | 88h13 | 160/120 | 0.12~0.55 | 24~204 | 100 | 7.5 |
| SC47 | 25k6 | 25/30 | 100h13 | 160 | 0.18~0.75 | 24~204 | 150 | 10 |
| SC57 | 30k6 | 30/35 | 112h13 | 200 | 0.75~1.5 | 24~204 | 250 | 13.5 |
| SC67 | 35k6 | 40/45 | 140h13 | 250/200 | 0.75~3 | 24~285 | 460 | 27 |
| SC77 | 45k6 | 50/60 | 180h13 | 300/250 | 0.75~7.5 | 24~385 | 1200 | 45 |
| SC87 | 60m6 | 60/70 | 225h13 | 350 | 1.1~11 | 24~389 | 2000 | 86 |
| SC97 | 70m6 | 70/90 | 280h13 | 450 | 1.5~18.5 | 24~389 | 3500 | 150 |
| Remark: the weight without oil and motor, shaft and flange input add 10%. | ||||||||
| FAQ |
| Q1: I want to buy your products, how can I pay? |
| A: You can pay via T/T(30%+70%), L/C ,D/P, WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Raydafon. It is safe and effective. |
Q2: How can you guarantee the quality? |
| A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection. |
| Q3: How we select models and specifications? |
| A: You can email us the series code (for example: RC series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice. |
| Q4: If we don't find what we want on your website, what should we do? |
| A: We offer three options: 1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models. 2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing. 3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on. |
| Q5: Can we buy 1 pc of each item for quality testing? |
| A: Yes, we are glad to accept trial order for quality testing |
| Q6: How about your product delivery time? |
| A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical gearbox. |
we also have other various iterms, welcome to contect us for more detail information and inquiry.
