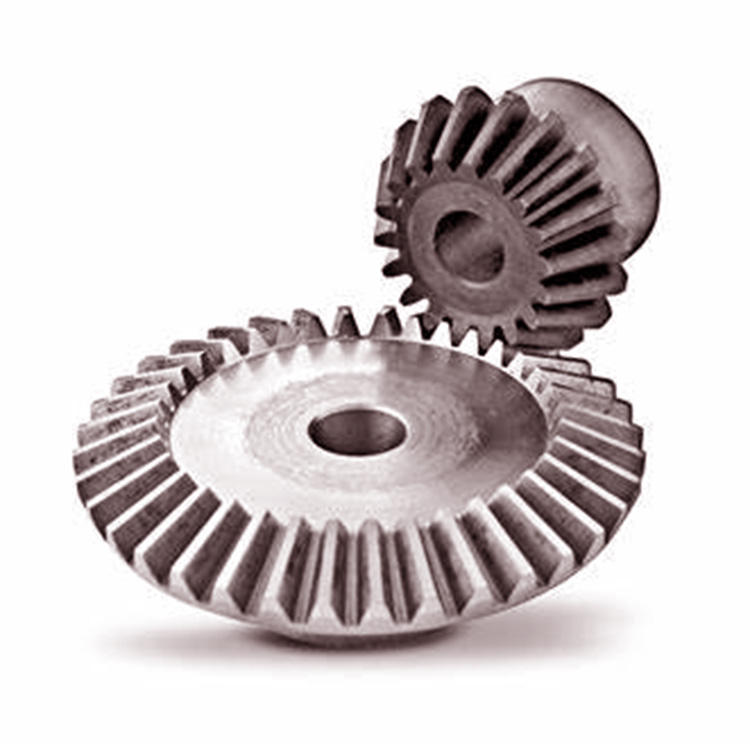

Bevel Gears, Acetal Resin;Bevel Gears Made of Zinc Die;Bevel Gears Made of Brass Plastic Bevel Gears
Material: Acetal resin, die-cast. plastic bevel gearsShaft angle 90°. The bevel gears only run as a pair at the stated ratio. Thermoplastic materials have a far larger thermal expansion than metals. This fact must be considered with view to the crown and flank clearance when mounting the gear.......
The bevel gears only run as a pair at the stated ratio. Thermoplastic materials have a far larger thermal expansion than metals. This fact must be considered with view to the crown and flank clearance when mounting the gear. Crown clearance Sk ~ 0,25 . m, flank clearance Sc ~ 0,05 . m. Thermal expansion coefficient = 1,1 . 10-4 1/°C. The bevel gears are also available with smaller bores, or with feather key groove. Additional charge worked out on time basis. Note Regarding the Gears Made of Acetal Resin: Inside these die-cast parts are some cavities caused by production. These parts should therefore not be drilled too deep. With larger bores or when grooving the cavities might become visible. This often does not affect the functionality.
Werkstoff: Azetalharz, gespritzt. Bohrungen ab Modul 1,5 spanabhebend bearbeitet. Achswinkel 90°.
Thermoplastische Kunststoffe haben eine sehr viel höhere Wärmeausdehnung als Metalle. Dies ist beim Einbau der Zahnräder durch das Kopf- und Flankenspiel zu berücksichtigen. Kopfspiel Sk ca. 0,25*Modul. Flankenspiel Sc ca. 0,05*Modul. Wärmeausdehnungskoeffizient = 1,1*10^-4 1/ ° C. Die Kegelräder sind auch mit kleineren Bohrungen, sowie Paßfedernuten lieferbar. Mehrpreis nach Aufwand. Hinweis zu Rädern aus Azetalharz Diese Spritzgussteile weisen im Inneren fertigungsbedingte Lunkerstellen auf und sollten daher nur geringfügig aufgebohrt werden. Bei größeren Bohrungen und beim Nuten werden die Lunkerstellen sichtbar. Die Funktion wird dadurch aber oft nicht beeinträchtigt.
Packaging & Shipping
Our Services
Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:
Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.
We have exported many products to our customers all over the world, we have long-time experience and strong technology support.
Some of our customer : Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini Germany: SILOKING ,GKN ,KTS France: Itfran, Sedies Brazil: AEMCO ,STU USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS Canada: JAY-LOR , CANIMEX ,RingBall ......
-Ø Our Company with over twelve year's history and 1000 workers and 20 sales. -Ø With over 100 Million USD sales in 2017 -Ø With advance machinery equipments -Ø With large work capacity and high quality control, ISO certified. ......
you also can check our website to know for more details, if you need our products catalogue, please contact with us.
Company Information
Material available
Surface treatment
Heat treatment
Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.
Blacking, galvanization, chroming, electrophoresis, color painting, ...
High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...
