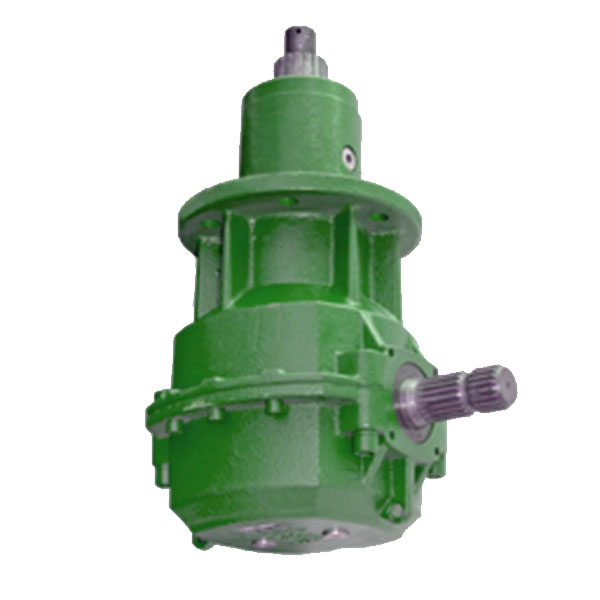

170 HP 540-1000 Rpm Omni Gear 1: 1 Ratio RC-145 Rotary Cutter Gearbox

EPT-RC81Model RC-145Rotating the continuous wave input produces the continuous wave outputGear ratio: 1:1Input RPM: 540/1000Output speed: 540/1000Enter HP: 61-171Maximum torque: 7,117-19,950 inch pounds.Input shaft: 1-3/4 "diameter. X 3-7/8 "long 20T splineOutput shaft: 2-1/4" diamete......

Send Inquiry

Product Description

EPT-RC81

Model RC-145
Rotating the continuous wave input produces the continuous wave output
Gear ratio: 1:1
Input RPM: 540/1000
Output speed: 540/1000
Enter HP: 61-171
Maximum torque: 7,117-19,950 inch pounds.
Input shaft: 1-3/4 "diameter. X 3-7/8 "long 20T spline
Output shaft: 2-1/4" diameter. 18 teeth conical spline W/threaded end. 3-1/4 "total length
Install: 6 holes on 8 "dia. B.c.
Pilot: 5-5/8 "DIA.
Centerline distance: 8.9 "(input shaft to mounting surface)
Dimensions 14-1/2 "x 11" x 11"
The actual weight is 135 pounds.
Shpg. 170 pounds.

* Durable Protection: Fits most light duty rotary cutter machines that require shear pin protection and includes 5 replacement shear bolts to add to your rotary kit.
* Fits Models: RD5, RD6, RZ160, RZ60 - Gearbox Assembly P/N 00786192. Razorback Series BH4, BH5, BH6, BH4-2, BH5-2, BH6-2. BMB 1080, BMB 10300, Hardee C1378, Mohawek 14-500, Rhino 0711050100, Rhino 71105, Omni 250123, Omni 250001, SE Big Ox 1970, Sidewinder 26272, and Others
* Industry standard 1-3/8" smooth diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.57" diameter 12 tapered spline output shaft allow fitment to most light, standard and medium duty rotary cutters.
* 1:1.47 Ratio for use on 5' and larger diameter rotary cutters
* Each gearbox features high speed ball bearing units and heat treated gears and shafts to ensure long life. Four bolt mounting matches industry standards. Each gearbox includes blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.

Also, we have replacement parts for these models

Bush Hog: ATH 600 and ATH 720, ATH 900, FTH 480, FTH 600, FTH 720, MTH 600, MTH 720 Series Mowers;
Landpride: FDR1548, FDR1560, FDR1572, FDR1648, FDR1660, FDR1672, FDR2548, FDR2560, FDR2572, AT2660, AT2672 Series Mowers;
Kubota: BL348A, B342A; Caroni TC480, TC590, TC710, TC910 with spline Input Shaft;
Befco most late models with splined input shafts, early models had some with smooth input shaft;
Curtis all Models; Douglas all Models; Tecma all Models;
Sovema all Models; Maschio all Models; Phoenix all Models;
Sicma all Models; First Choice all Models

Product Name

Gearbox for Rotary Mowers

Grinding Workshop

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

CNC Workshop

Heat Treatment Machine

3D Measurement Machinery

Gear Teeth Profile Test Machines

Heat Treatment Workshop

Tooth Profile Workshop

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products , the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
