Product Description

Main features and working principle: Planetary gearboxes use a unique working principle, where a central sun gear drives multiple planetary gears (usually three or more), which rotate around the sun gear in an outer ring gear. The output is usually from a planet carrier that carries the planetary gears. This configuration allows: High reduction ratios: can be achieved with a compact inline arrangement, usually through multiple reduction stages. High torque density: the load is distributed over multiple planetary gears, allowing higher torque transmission relative to the size of the gearbox. Coaxial input/output: the input and output shafts are usually aligned, providing a compact and convenient inline design. High efficiency: due to efficient load distribution and rolling contact between the gears. Durability and reliability: designed for heavy loads and continuous operation.

Superior Performance The Ever-power EP300 Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300L Series is also available in a high power version , linking the performance of our planetary technology with the high quality and reliability of gearboxes : a solution that is more efficient , quieter , more compact , and more cost-effective compared with traditional gear units

Key Features

1 . Torque range : 1000-450.000 Nm

2. Transmissible mechanical power . up to 540 kw

3. Gear ratios : 34-9.000

4 . Gear unit versions : in line

5. Output confiqurations

1 ) Foot and flange mounted

2 ) Output shaft : solid with key , splined , splined hollow

3 ) Hollow with shrink disc

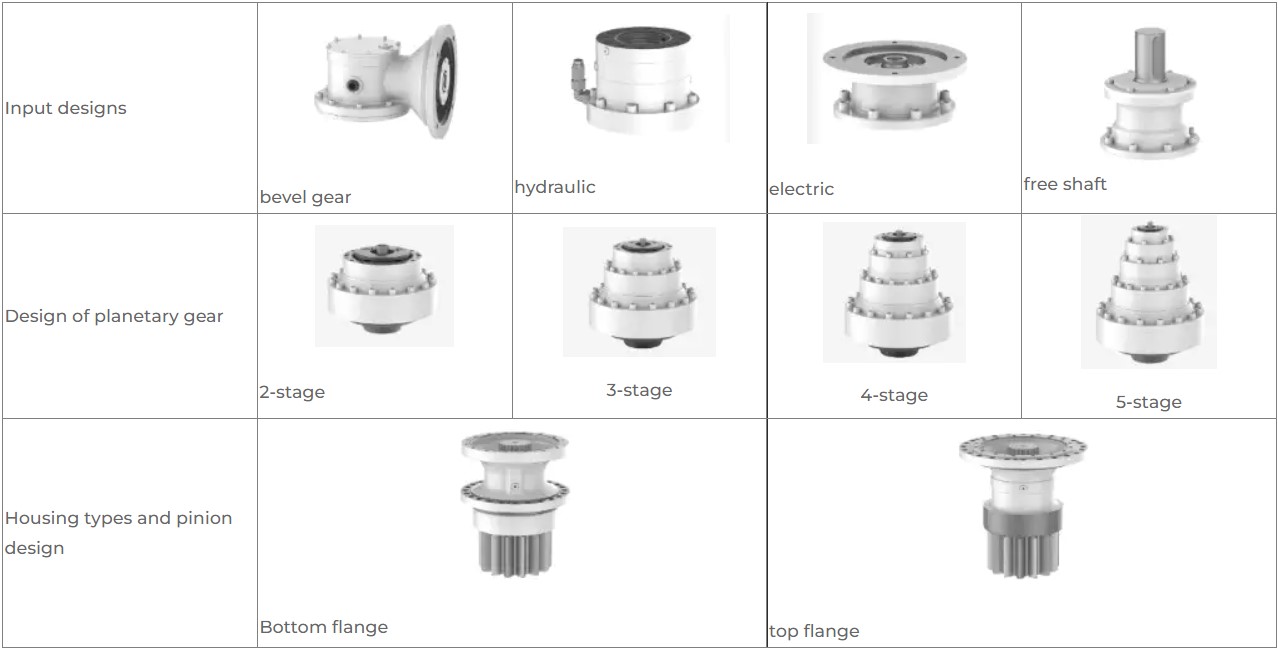

6 . Input configurations

1 ) Flanged axial piston hydraulic motors

2 ) Hydraulic orbit motors

3 ) IEC and Nema motor adaptors

4 ) Solid input shaft

7 . Hydraulic brake : hydraulically released parking brake

8 . Electric brake . DC and AC type

output torque (N.m)			Ratio (i)			Recommend Hydraulic Motor pilot/hubs and input spline	Max. input speed (rpm)	Brake torque (N.m)	Brake work pressure (bar)
normal	Max. Intermittent
950	2200	3.54	Single reduction	SAE A motor pilot/hubs 13T - 16/32 Spline 15T - 16/32 Spline 1” - 6B Spline 14T - 12/24 Spline	3500	370	34-50
						12.19	Double reduction			120	12-50

Type	Max torque N.m	Range of ratio (i)	Max input speed(rpm)	braking torque(N.m)
400T1-420T4	1300-450000N.m	6.09-421	1000-3500	130-3000
400W1-419W3	870-275000	6.09-365	1000-3500	130-3000
601L1-615L3	1750-60000	5.77-108	1000-3000	210-1000
300L-321L	1000-500000
300R-321R	1000-500000

Note:All manufacturer's names, numbers, symbols, and descriptions are used for reference purposes only, and it is not implied that any part listed is the product of these manufacturers. Our products are aftermarket replacement parts and are not OEM parts.

Click here for more model types!

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds) Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes) Waste and sewage treatment (rotating lters, thickeners, clariers, Warm hoists, agitators) Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines) Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling) Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills) Food industry (mixing machines, mixers, conveyors, fruit extractor machines)

We also provide PTO shafts for your planetary gearboxes.

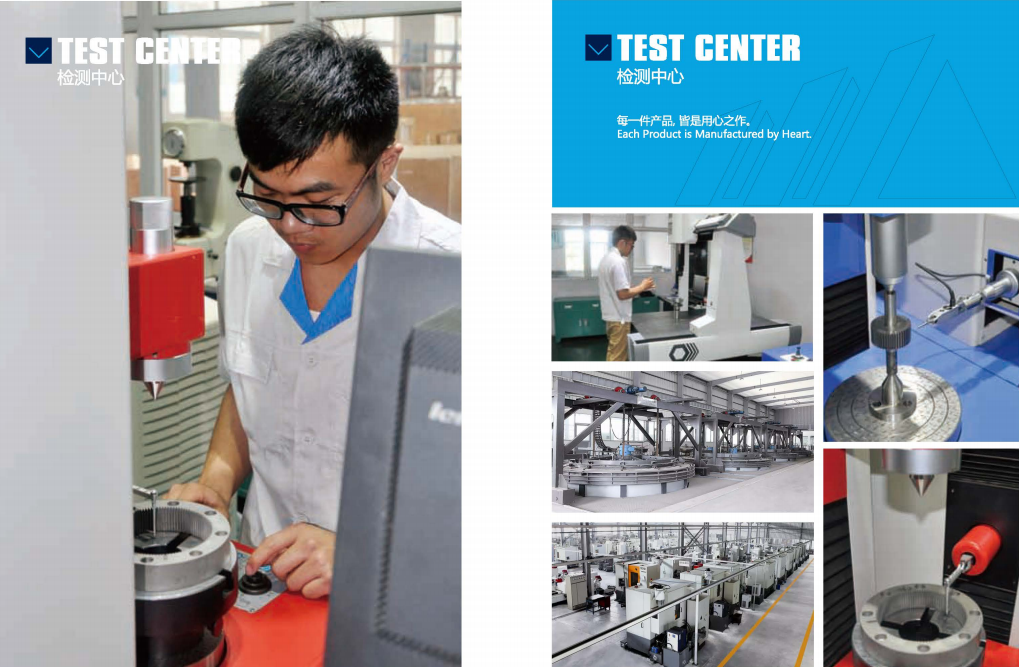

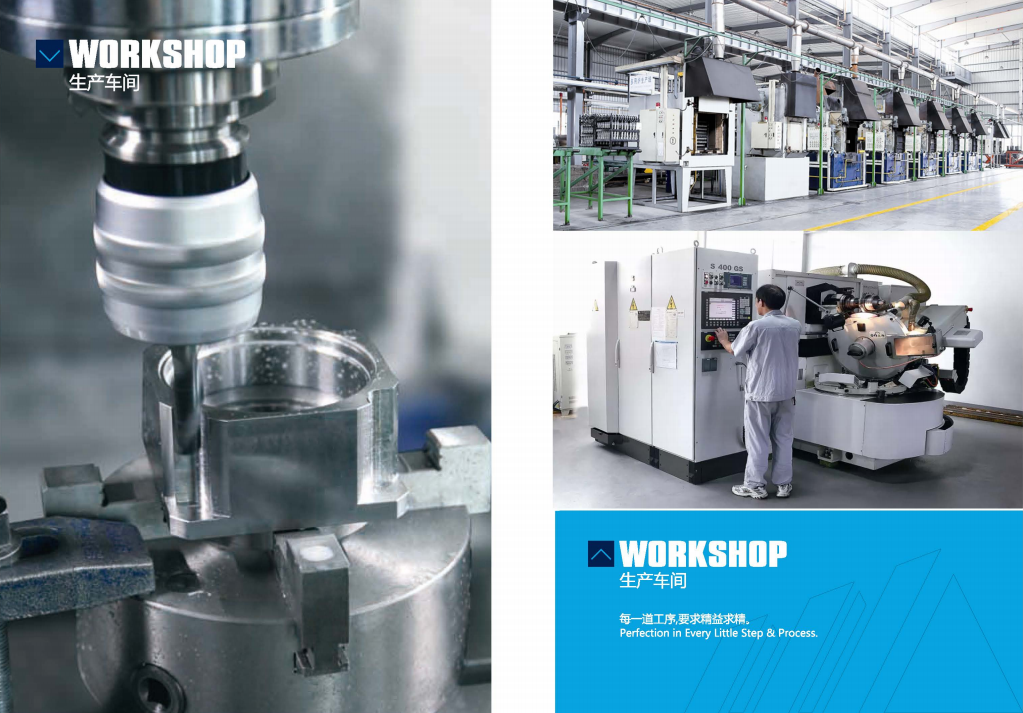

EVER-POWER GROUP is a Symbol of quality craftsmanship in China . EVER-POWER GROUP was established in 2003 and is currently a professional manufacturer of various planetary gearboxes. At present, the NB3 series planetary gearboxes, NB4 series crawler transmissions, NB7 series self-locking transmissions, NB6 series hub transmissions and US series planetary gear transmissions we produce have developed into tens of thousands of specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N.m. More than 90% of the products are exported to the United States, Europe, Australia, South America, the Middle East and Southeast Asia. The installation and size of the planetary gearbox are exactly the same as those of well-known European and American planetary gearbox manufacturers, and can be completely interchangeable. The company has a large number of high-quality equipment such as a number of fully automatic integrated machining centers, CNC grinders, CNC gear processing machines and CNC machine tools from Taiwan and Taiwan, thereby ensuring the high precision of parts. All employees have undergone rigorous professional training and have good skills and excellent quality. The company is fully managed by a modern computer system and has successfully passed the ISO9001:2000 quality system certification.

EVER-POWER GROUP planetary transmissions have greater flexibility than traditional power transmission systems and generally eliminate the need for components such as drive shafts, axles and chain drives. The many models and styles we offer meet the needs of various mobile and industrial applications. Single-stage, double-stage and triple-stage reduction ratios are available. In addition, they can be equipped with a variety of motor brackets and inputs, allowing them to be used with most brands of hydraulic motors. EVER-POWER GROUP planetary drives have a power transmission efficiency of up to 96% to 98%, which is much more efficient than many other types of drives (including differential design planetary drives). These drives are rugged and compact, saving space and extending service life. All models can be equipped with a parking brake. EVER-POWER GROUP has designed an integrated B4 series parking brake in models 4, 6 and 8. These units offer a very compact planetary drive/parking brake combination, ideal for applications where space is limited. EVER-POWER GROUP planetary drives deliver the power you need for smooth operation and precise control. These units are also fully reversible. Reverse power is easily achieved by reversing the input rotation. For vehicle applications, the positive traction provided by the independently driven wheels provides greater maneuverability and higher ground clearance than conventional drive systems. For any application that requires increased torque or reduced speed for usable power, EVER-POWER GROUP planetary gear drives are an efficient solution. EVER-POWER GROUP planetary gear drives help you maximize power.
