WH78 WH82 WH124 Welded Steel Mill Chain with A1 A2 A225 F10 F30 F659 Attachment

Send Inquiry

Product Description

Offset milled chains are available in carbon steel and stainless steel. Welded steel mill grade chains are recommended for most conveying, drive and lifting applications requiring high strength steel rollerless chains. These chains will run on the same sprockets as their cast counterparts. A complete range of accessories and optional heat treatments make them easy to adapt to a variety of applications. • Automatic welding for Ensure consistent weld and barrel position • Carbon steel chain with heat-treated pins, barrels and side bars • Stainless steel range with heat treated barrels and pins • WHX series available with induction hardened pins

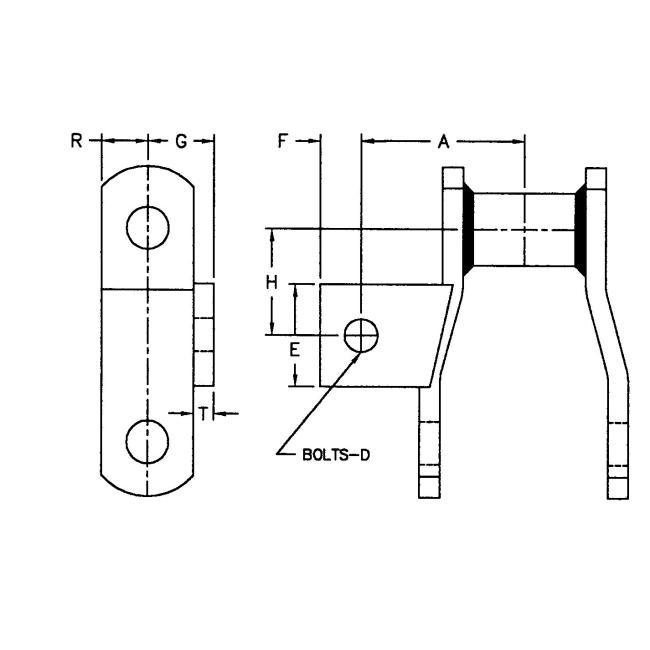

A1 Attachment

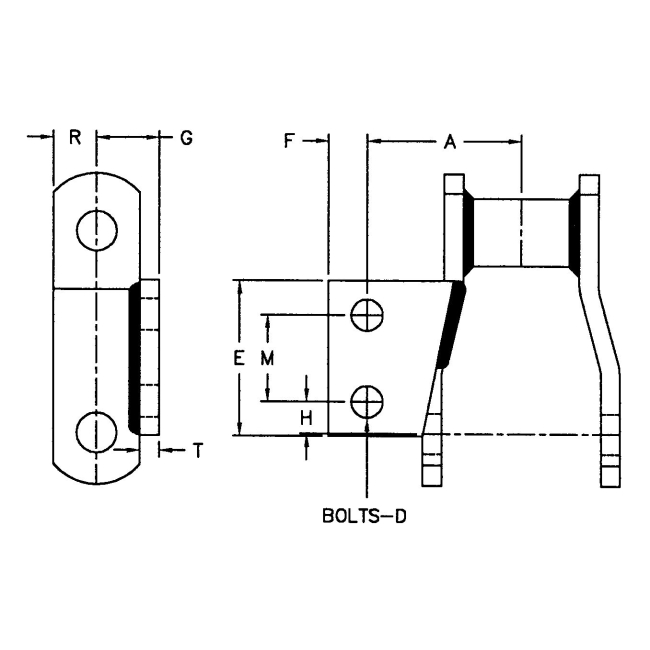

A2 Attachment

ATTACHMENT NUMBER	CHAIN NUMBER	WEIGHT PER FOOT LBS.	A	D	E	F
A1	WH78	4.97	2.00	.38	1.25	.50
A1	WH82	6.50	2.13	.38	1.75	.62
A1	WH124	8.40	2.62	.62	2.00	.62
A2	WH78	4.50	2.00	.38	2.13	.50
A2	WH82	6.00	2.13	.38	2.25	.62
A2	WH124	10.00	2.62	.38	3.00	.88
A2	WH132	17.00	3.75	.50	4.00	.75
A225	WH124	8.90	4.00	—	2.00	1.94
F10	WH82	4.80	—	—	1.25	—
F30	WH78	9.90	—	—	1.00	—
F659	WH124	13.10	—	—	1.75	—

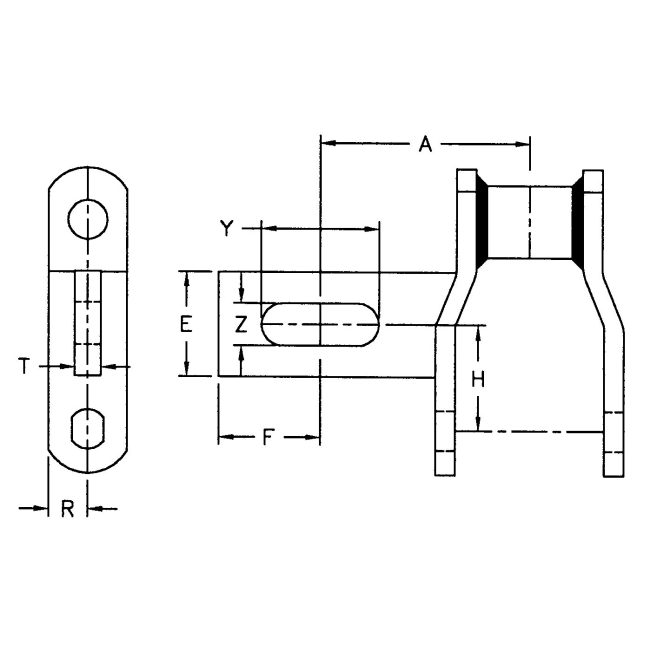

A225 Attachment

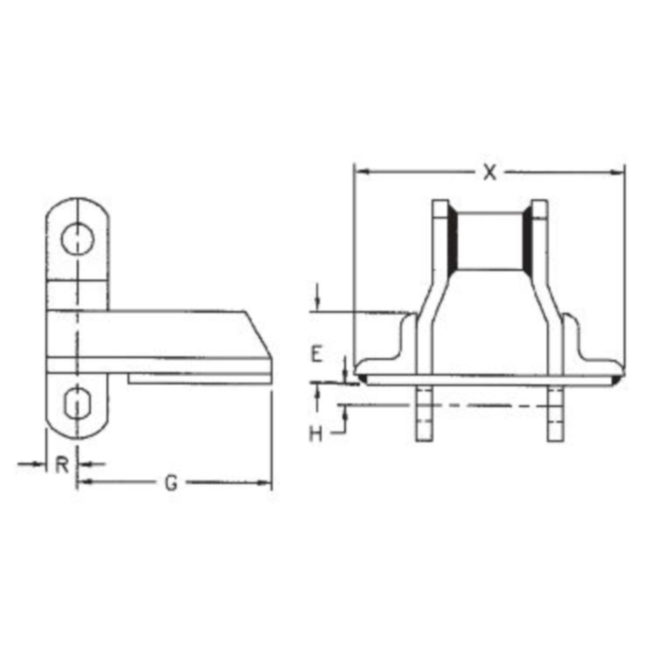

F30 Attachment

ATTACHMENT NUMBER	CHAIN NUMBER	G	H	M	R	T	X	Y	Z
A1	WH78	.81	1.25	—	.56	.25	—	—	—
A1	WH82	.94	1.50	—	.62	.25	—	—	—
A1	WH124	1.13	1.81	—	.75	.38	—	—	—
A2	WH78	.78	.41	1.13	.56	.25	—	—	—
A2	WH82	.94	.50	1.25	.62	.31	—	—	—
A2	WH124	1.13	.88	1.94	.75	.38	—	—	—
A2	WH132	1.50	1.62	2.75	1.00	.50	—	—	—
A225	WH124	—	2.00	—	.75	.50	—	2.25	.88
F10	WH82	—	.94	—	.63	.25	10.25	—	—
F30	WH78	2.69	.81	—	.56	2.13	3.00	—	—
F659	WH124	4.75	.50	—	.75	—	6.59	—	—

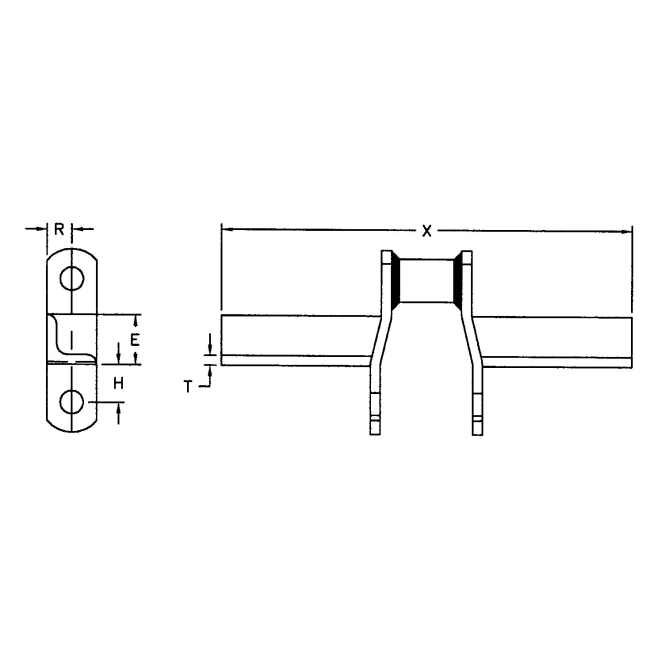

F10 Attachment

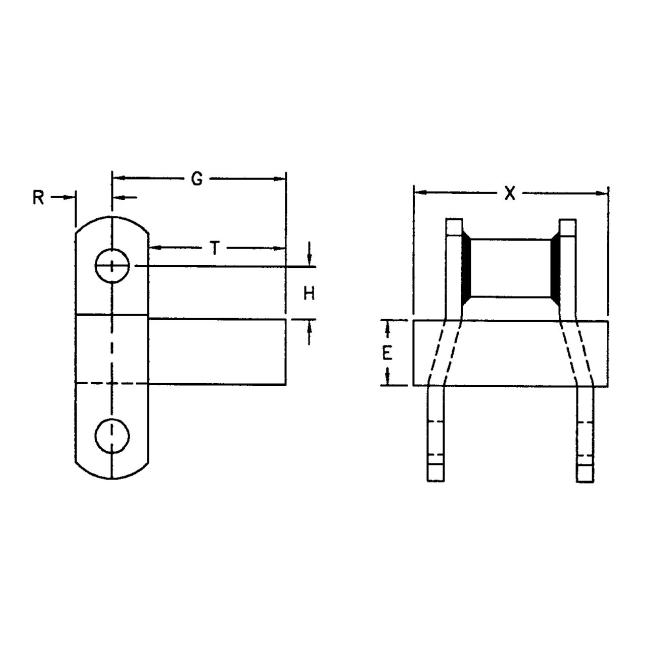

F659 Attachment
