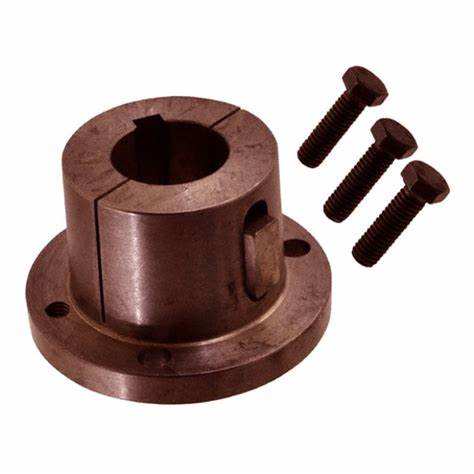

Taper bushing is a new type of mechanical coupling components widely used in American and European market, with a high degree of standardization, high precision, compact structure, easy installation and removal, etc.By 8 degrees outside cone and pulley, sprocket and other transmission within the cone compression connection, make all kinds of transmission parts centering precision is greatly increased.Taper sleeve size as the series of standard design.Inside hole keyway according to ISO standards for processing.Interchangeability good commonality, it is suitable for various occasions..
When driving a after a long time running, slot hole and chain may be damaged, if this is the use of the taper sleeve transmission parts, when this happens, simply replace the same specifications used taper sleeve can be restored.Thus greatly improving the service life of the transmission parts, reduce the maintenance cost, to save time
| 1. Name: European Standard / Bushing / TB Bushing / Taper Bore - 8065 series |
| ( Bushing , TB Bushing, Taper Bore bushing ) |
| 2. Material: Cast iron, Steel |
| 3. Type :1008,1108,1210,1610,1615,2012,2517, 3020,3030,3535,4030,4040,5050. |
| 6050, 7060, 8065, 10085, 120100, |
| Features |
| 1. Material: High grade cast iron GG25; Steel C45 |
| 2. Surface treatment: Black-phosphated or original color without finishing |
| 3. Easy on-easy off |
| 4. Machined to high precise tolerance |
| 5. A full range of both metric and imperial sizes taper bushes are available |
| 6. Complete short reach range available, for compact lightweight assemblies |
| Type | Bore for mm |
| 1008 | 10,11,12,14,16,18 |
| 19,20,22,24,25 | |
| 1108 | 10,11,12,14,16,18 |
| 19,20,22,24,25,28 | |
| 1210 | 11,12,14,16,18 |
| 19,20,22,24,25,28,30,32 | |
| 1215 | 11,12,14,16,18 |
| 19,20,22,24,25,28,30,32 | |
| 1310 | 14,16,18 |
| 19,20,22,24,25,28,30,32 | |
| 1610 | 14,16,18 |
| 19,20,22,24,25,28,30,32,35,38,40,42 | |
| 1615 | 14,16,18 |
| 19,20,22,24,25,28,30,32,35,38,40,42 | |
| 2012 | 18, |
| 19,20,22,24,25,28,30,32,35,38,40,42,45,48 | |
| 2517 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 |
| 2525 | 20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60 |
| 3020 | 25,28,30,32,35,38,40,42,45,48,50,55,60 |
| 3030 | 28,30,32,35,38,40,42,45,48,50,55,,65,70,75 |
| 3535 | 35,38,40,42,45,48,50,55,,65,70,75,80,85,90 |
| 4040 | 40,42,45,48,50,55,,65,70,75,80,85,90,95,100 |
| 4545 | 55,60,65,70,75,80,85,90,95,100,105,110 |
| 5050 | 55,60,65,70,75,80,85,90,95,100,105,110,115,120,125 |
Sichuan Mighty Machinery Co., Ltd., specializes in manufacturing Mechanical Power Transmission Products over 15years.
MIGHTY anvantage
1. Abundant experience in the mechanical processing industries.
2. Large quality of various material purchase and stock in warhouse which ensure the low cost for the material and production in time.
3. Now have 5 technical staff, we have strong capacity for design and process design, and more than 70 worker now work in our FTY and double shift eveyday.
4. Strick quality control are apply in the whole prodution. we have incoming inspection,process inspection and final production inspection which can ensure the perfect of the goods quality.
5. Long time cooperate with the Global Buyer, make us easy to understand the csutomer and handle the export.
MIGHTY Sales area
At the moment, 75% of Mighty's products are main export to Europe , meanwhile around 20% are export to American Marcket,
Pls kindly contact us if there is any inquiry, we will check and give you a quick response.
