Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer

Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replaced by metal disc, Metal Flex coupling provides excellent temperature capability without sacrificing angular and axial misa......
Send Inquiry
Product Description
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replaced by metal disc, Metal Flex coupling provides excellent temperature capability without sacrificing angular and axial misalignment. The coupling provides low axial and bending stiffness while possessing high torsional rigidity. The stretched shim pack design of EPT Metal Flex couplings provides zero backlash. EPT Metal Flex couplings are available up to 13367 Nm torque with single shim pack (UMK) and double shim pack (UMS) series.
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Features:
1.Coupling made of cast iron GG 25
2.Elastomer parts can be replaced without removing the coupling
3.Torsionally flexible, maintenance free, vibration-damping
4.Axial plug-in, fail-safe
5.Finish bore according to SO fit, feather keyway according to DIN 6885 sheet 1-JS9 and P9

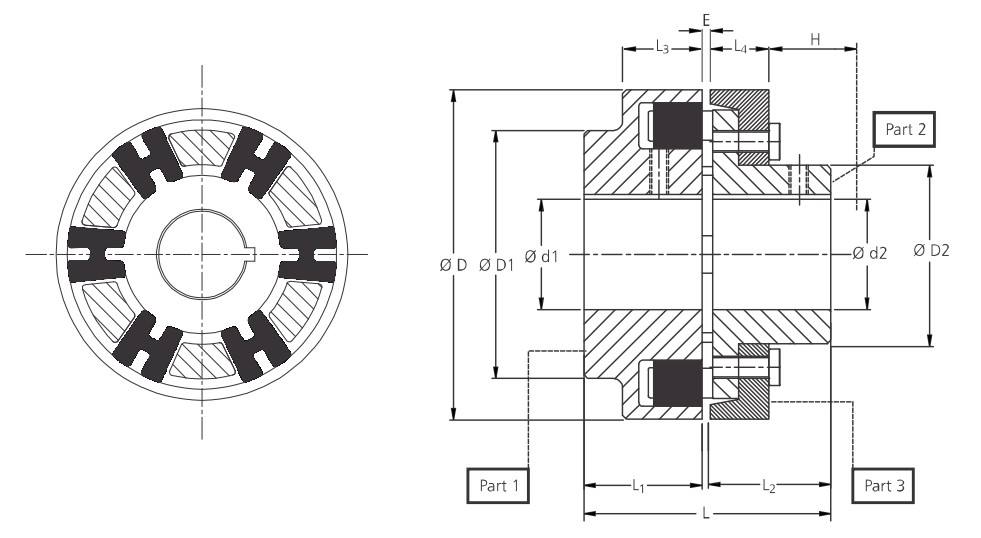

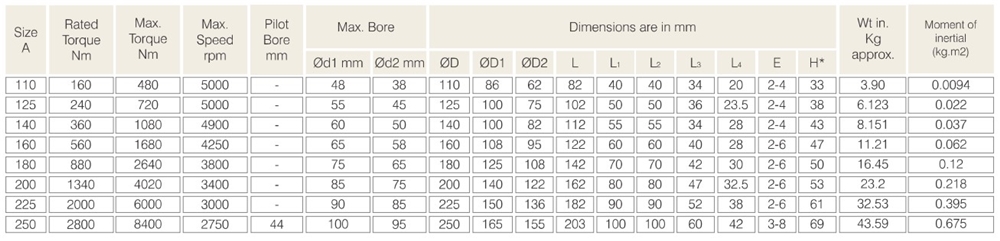

DIMENSIONS & TEVHNICAL DATA
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Click here for more details!
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Single Piece Elastomer H Cushion Cast Iron H Type FLEX Jaw Flexible Coupling With Rubber Elastomer
Hot Tags: Single Piece Elastomer H Cushion Cast Iron H Type Flex Jaw Flexible Coupling With Rubber Elastomer - Buy Rubber Elastomer jaw Flexible Coupling flexible Mechanical Couplings Product on Raydafon
