Product Description

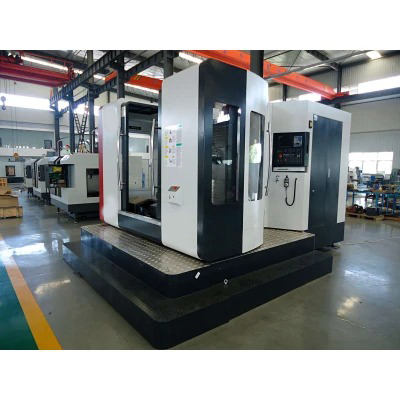

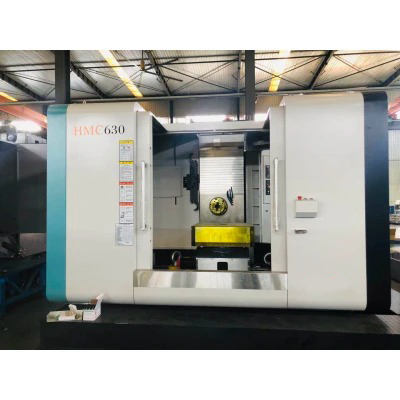

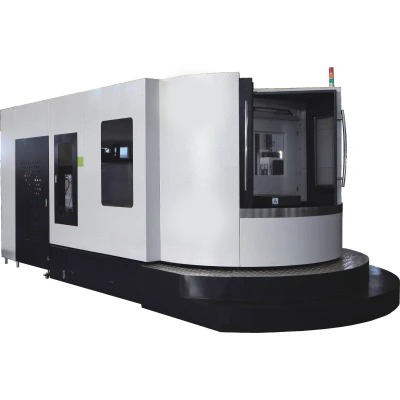

HMC630 horizontal machining center

The HMC630 horizontal machining center is an advanced machine tool known for its exceptional performance and versatility in various industries. Advantages: High Precision: The HMC630 delivers outstanding precision and accuracy, ensuring tight tolerances and superior surface finishes for machined parts. Rigidity and Stability: With its robust structure and rigid bed, the HMC630 provides excellent stability during heavy cutting operations, minimizing vibrations and ensuring consistent results. Versatility: This machining center offers multi-axis capabilities, allowing for complex machining tasks and accommodating a wide range of workpiece sizes and geometries. High Productivity: Equipped with a powerful spindle and a fast tool change system, the HMC630 enables efficient and rapid production, reducing cycle times and maximizing productivity. Advanced Control System: The machine incorporates a user-friendly control interface, facilitating easy programming, operation, and monitoring of machining processes. Applications: The HMC630 horizontal machining center finds applications in various industries, including: Automotive: It is used for machining engine blocks, transmission components, brake system parts, and other automotive components. Aerospace: The HMC630 is employed to manufacture complex aerospace parts, such as aircraft structural components, landing gear parts, and turbine components. Mold and Die Making: It is widely utilized for producing molds and dies used in plastic injection molding, die casting, and other molding processes. General Machining: The HMC630 caters to a wide range of general machining applications, including milling, drilling, and tapping operations on various materials

HMC63

HMC500

HMC500P

HMC630

HMC630P

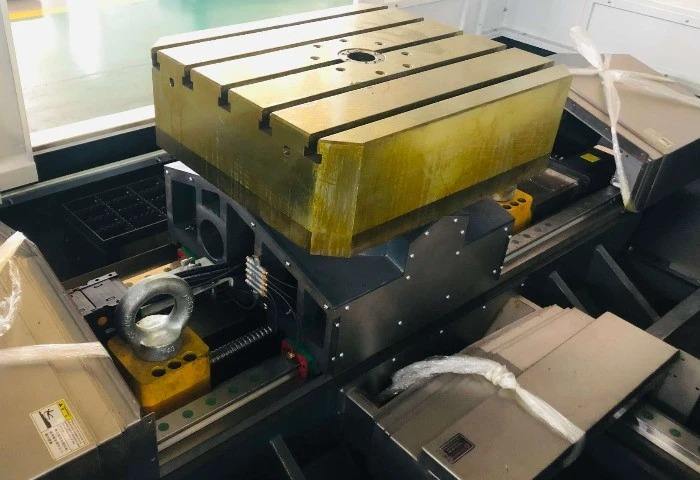

Workbench

Single pallet

Dounle pallets

Single pallet

Dounle pallets

Workbench size

630x630

500×600

630x700

The maximum load-bearing capacity of the workbench

1200

600

950

Number of workbenches

Table form

24xM16 threaded hole

Distance from the centerline of the spindle to the workbench

100 ~ 1000

120 ~ 870

0 ~ 750

120 ~ 870

0 ~ 750

Distance from workbench center to spindle end face

50 ~ 1080

130 ~ 1030

Workpiece rotation diameter

Φ1050

Φ1380

Φ950

Φ1380

Φ950

Workbench indexing

1° x360

1° x360 / 0.001°

Type of platform replacement structure

turn type

Workbench exchange time

3-Axis

stroke

1050/900/1030

1050/750/900

Fast Moving Distance (XNY2)

m/min

60/60/60

30/30/30

B-axis fast movement speed

m/min

Main spindle

Main spindle power (basic configuration)

18.5-26

15/18.5

Maximum speed (basic configuration)

rpm

8000

6000

Spindle hole thrust

BT50

Main spindle inner diameter

100

Positioning accuracy (national standard

positioning accuracy

0.01 (entire process)

Repetitive positioning accuracy

0.006

B-axis indexing accuracy

6″

10″

B-axis repeated indexing accuracy

1″

5″

Tool magazine

Tool magazine capacity

Tool selection method

Two-way arbitrary

Tool change time

2.5

4.5

External dimensions

Length * width * height

6485x3865x3300

4800×3700×2850

6600×4300×2850

4800×3700×2800

6600×4300×2850

Machine weight

18200

11000

13000

12000

14000

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

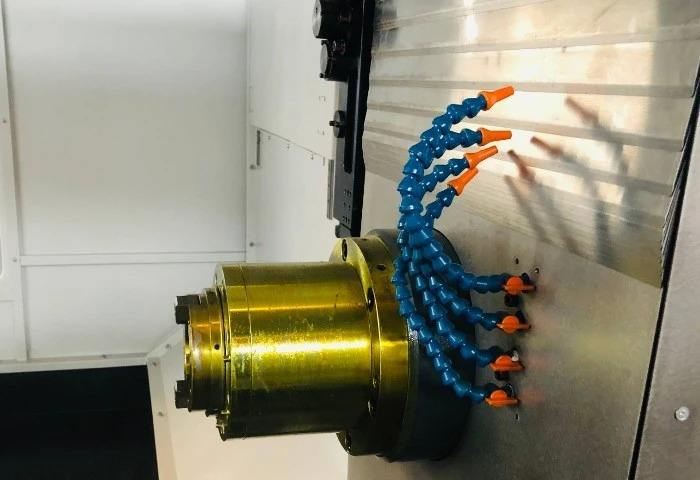

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy
