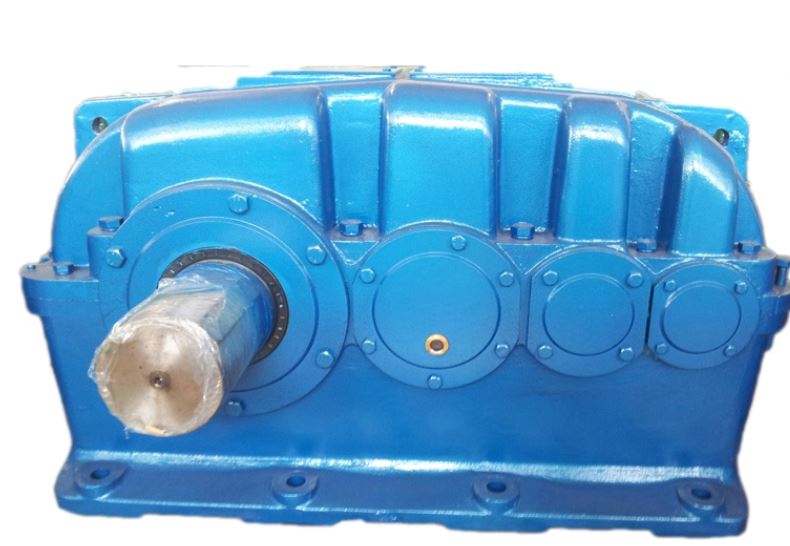

Parallel Shaft Helical Gearbox

A rugged and dependable Shaft mounted helical gear motor ideal for all material handling applications involving conveyors or augers and are also suitable for a wide variety of industrial fields.

EP-series parallel shaft helical gearbox, available in cast iron casing only, Available in 6 sizes from 04 to 10, offer a large range of reduction ratios and are fully efficient in any working conditions.

Available versions

• Foot-mounted or flange-mounted gearbox / gearmotor

• B5 or B14 Flange-mounted gearbox / gear motor

• Solid or hollow shaft gearbox / gearmotor

Ratio :

1) Double Reduction : 5.0 To 100.

2) Triple Reduction : 63 To 355.

3) Quadruple Reduction : 360 To 5600.

4) Quintuple Reduction : 4500 To 20000.

Capacity : 0.12 kW To 45 kW.

Output RPM : 0.31 To 290.

Nominal Ratio : 5 To 20000.

• Mounting: foot or flange-mounting versions (B5, B14, mixers, extruders), torque bracket

• Shaft: Solid shaft, Hollow shaft

Typical Applications of Parallel Shaft Helical Gear Motors are as follows:

• Agitator drives • Carriage drives • Shelf access equipment • Vertical conveyor
