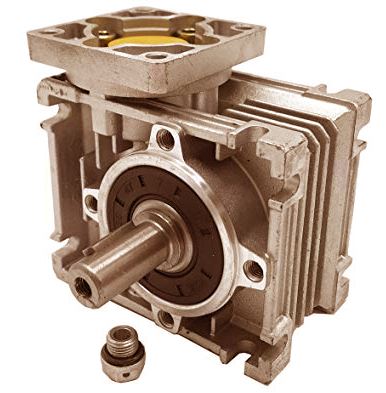

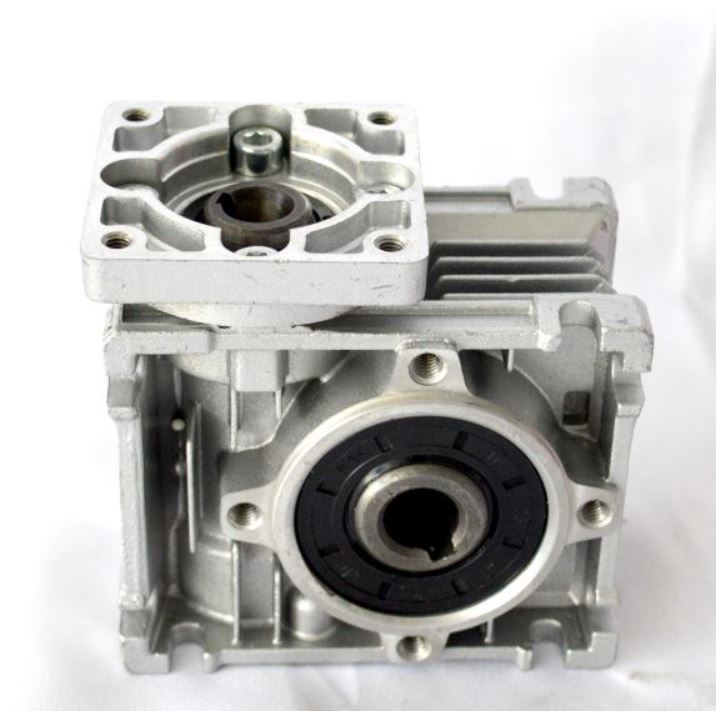

Nema 23 Worm Gearbox

Wormwheel gearboxes go by several names, including 90-degree gearboxes, right angle gearboxes, speed reducers, worm gear reducers and worm drive gearboxes. Gear reduction boxes feature a gear arrangement in which a gear in the form of a screw, also known as a worm, meshes with a worm gear. These gears are typically made from bronze and the worms are steel or stainless steel.

Additional benefits of worm drive gearboxes include:

High reduction ratios

High torque multiplication

Quiet operation

Absorbs shock loads

Product description

Size:10:1

Nema23 Worm Gear Stepper Motor Gearbox Ratio 7.5:1 10:1 20:1 30:1 50:1 L76mm 3A 1.8Nm Motor for CNC

Package Included :

1 x Nema23 L76mm Stepper Motor

1 x Gearbox

Item Specifications :

4 wires : Blue , Black , Green , Red

Step Angle : 1.8degree

Holding Torque : 1.8Nm

Current : 3A

Gear Ratio : 7.5:1, 10:1, 20:1, 30:1, 50:1

Motor Length : L76mm
