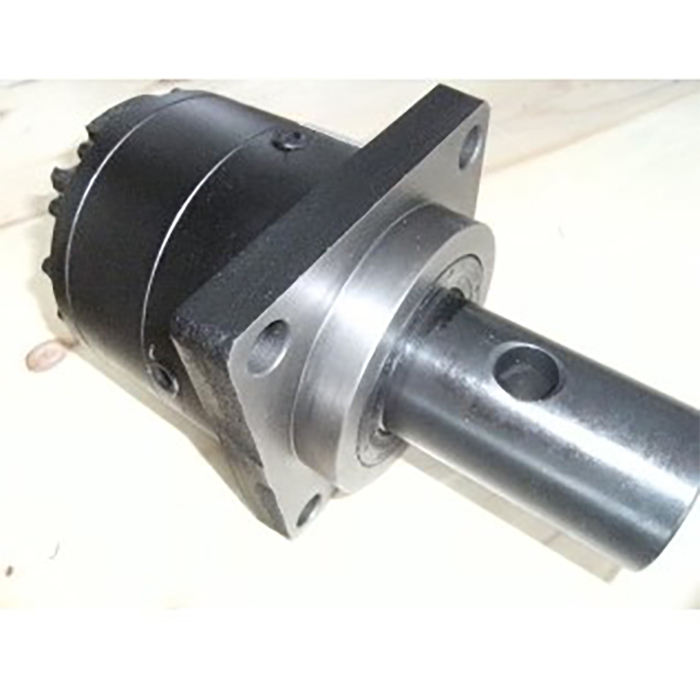

Model 4 Series Planetary Gearbox Replacement of AUBURN (Shaft & Spindle Output Drives)

Send Inquiry

Product Description

The Model 4 series planetary gearbox is commonly used in various industrial applications, including robotics, automation, material handling, packaging machinery, and medical equipment. Its high-performance, compact design, and precision make it an ideal choice for these industries. In addition, the gearbox is easy to install and operate, with a simple and sturdy structure, ensuring reliable performance. It is also highly versatile, with various installation options and input/output configurations. The Model 4 series planetary gearbox is a high-performance solution suitable for various industrial applications. Its compact design, excellent torque capacity, and high accuracy make it an ideal choice for applications with limited space but crucial performance.

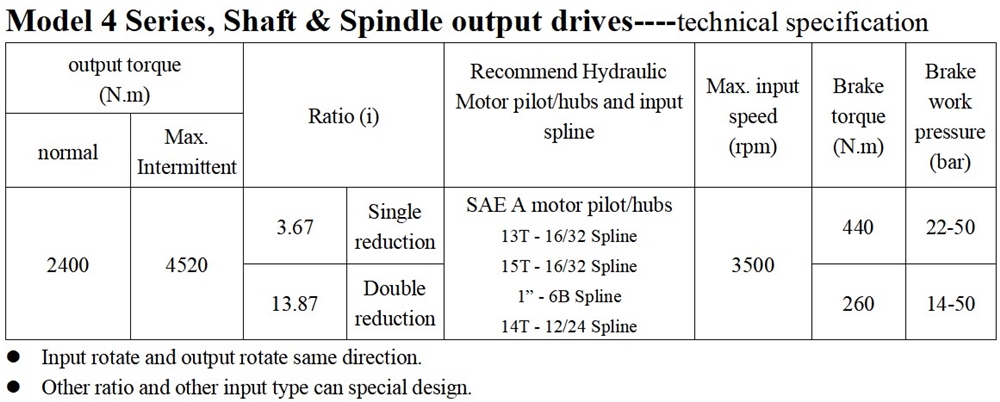

FEATURE CHART: MODEL 4 SERIES,SHAFT AND SPINDLE OUTPUT DRIVES REDUCTION - STYLE T

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 4

MOTOR PILOT/HUBS

SAE A2

SAE A4

MOTOR INPUT SPLINE OR SHAFT INPUT OPTIONS

13T - 16/32

15T - 16/32

1” - 6B

14T - 12/24

Shaft Input 1.5” Round

1.5R

RATIO OPTIONS

3.67

13.87

OUTPUT OPTIONS

2.56 Round

2.00” Hex

BRAKE

260Nm

B4F

440Nm

B4L

Without Brake

Example of complete order code:

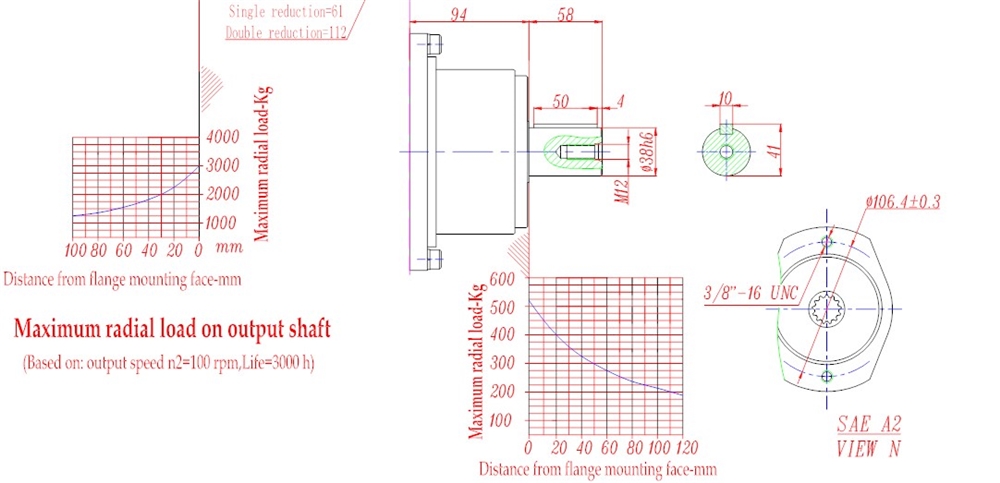

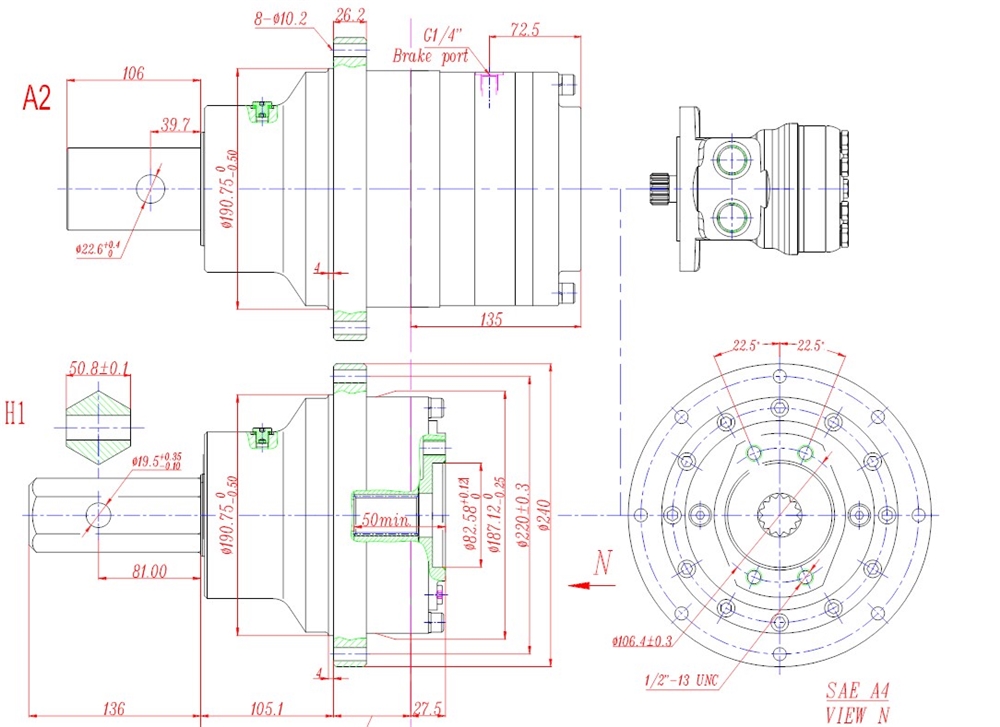

Model 4 Series, Shaft & Spindle output drives---dimensions

The following are some typical applications of the Model 4 series planetary gearbox: Robotics and Automation: The Model 4 series gearbox is often used in robot and automation applications that require precise positioning and high torque. It is typically used for robotic arms, picking and placement systems, and other types of automated machinery. Material handling: The Model 4 series gearbox is also used for material handling applications where precise movement of heavy objects is necessary. It is typically used in conveyor systems, elevators, and other types of material handling equipment. Packaging Machinery: The compact and high torque design of the Model 4 series gearbox makes it an ideal choice for packaging machinery, such as filling machines, capping machines, and labeling machines, where high-speed and accurate positioning are crucial. Medical equipment: The Model 4 series gearbox is also used in medical equipment such as imaging machines, where precise positioning and smooth and quiet operation are crucial. Printing and Paper Conversion: The Model 4 series gearbox is typically used for printing and paper conversion applications that require high speed and precision. It is often used in printing machines, laminators, and other types of paper conversion machinery. Aerospace and Defense: The Model 4 series transmission is also used in aerospace and defense applications, where high performance and reliability are crucial. It is usually used for Missile guidance systems, satellite positioning systems and other aerospace and national defense equipment types.

How to choose the model 4 series planetary gearbox? Choosing the appropriate Model 4 series planetary gearbox for your application can be complex and requires considering many factors. When choosing a Model 4 series transmission, it is important to remember the following key factors: 1. Torque requirements: The torque requirements of your application will determine the size and transmission ratio of the gearbox you need. It is necessary to ensure that the gearbox you choose has sufficient torque capacity to handle your application load. 2. Speed requirements: The speed requirements of your application will affect the transmission ratio you need. Choosing a gearbox with a gear ratio that allows you to achieve the desired output speed is crucial. 3. Installation options: The Model 4 series gearbox has various installation options, including flange, base, and shaft installation. It is important to choose installation options that are compatible with your application. 4. Input and output options: The Model 4 series gearbox has a range of input and output options, including solid shaft, hollow shaft, and electric options. It is important to choose input and output options that are compatible with the application. 5. Environmental factors: The environmental factors you apply, such as temperature, humidity, and exposure to chemicals, can affect the type of gearbox you need. It is important to choose a gearbox designed to operate under application environmental conditions. 6. Maintenance requirements: The maintenance requirements of the gearbox will affect the total cost of ownership of your application. It is very important to choose a gearbox with low maintenance requirements and long service life. 7. Specific application requirements: Depending on your application, other specific requirements may need to be considered when selecting a gearbox, such as noise level, accuracy, and impact load capacity. Overall, selecting the appropriate Model 4 series planetary gearbox for your application requires careful consideration of various factors. By considering torque requirements, speed requirements, installation options, input and output options, environmental factors, maintenance requirements, and specific application requirements, you can choose a gearbox that is very suitable for your needs.

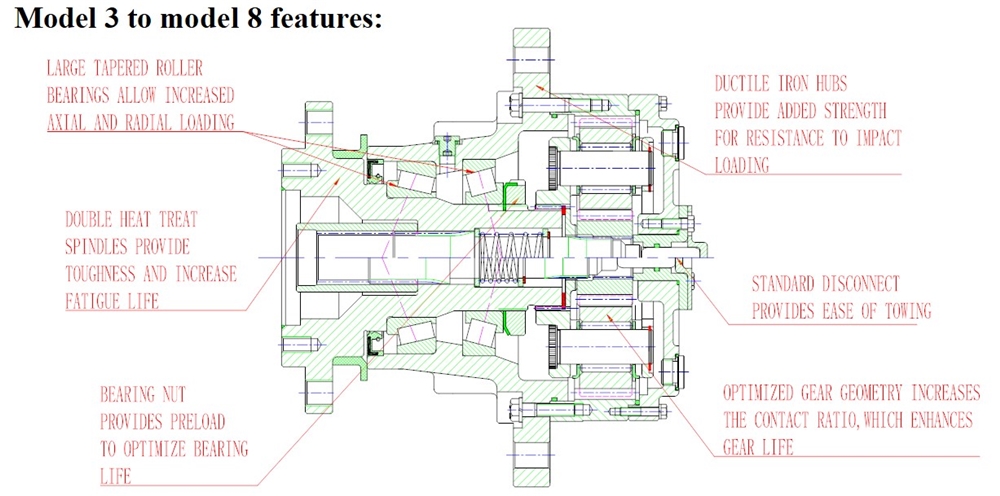

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

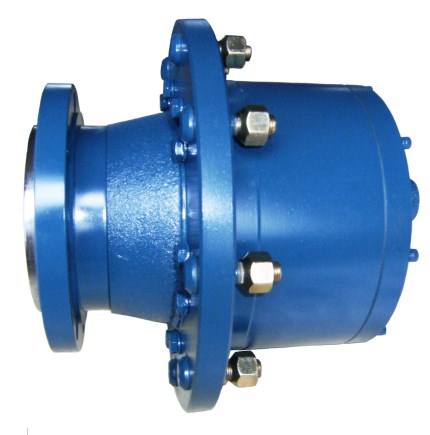

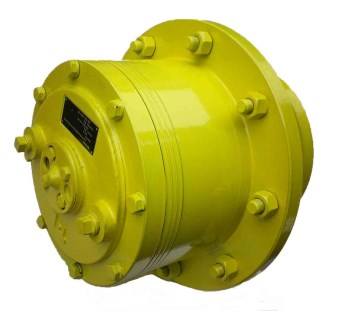

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
