MITER GEARBOX FEATURES
Jacks may be used in multiple arrangements by connecting shafting, couplings and gear boxes to simultaneously transmit power to the input shafts of the jacks. Raydafon provides gearboxes for use with jacks.
Make certain that the total torque and horsepower required by the arrangement does not exceed the ratings of the box. Miter gear boxes can be operated up to 900 rpm. Higher speeds are permissible at lower torque ratings. Noise levels may increase at higher speeds. The operating efficiency of a miter gear box is 90%
Gears are forged alloy steel. Shafts are stress proof steel ground and polished.

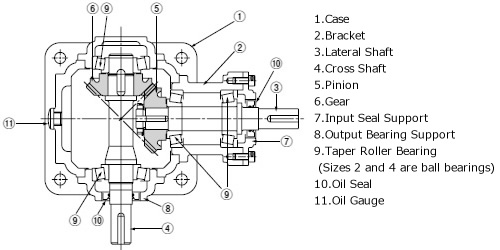

Right-angle shaft type gear box of spiral bevel gears for general applications with high performance and high efficiency
Wide variation ranging from small to large capacity
Smooth rotation and silent drive possible
Easy installation

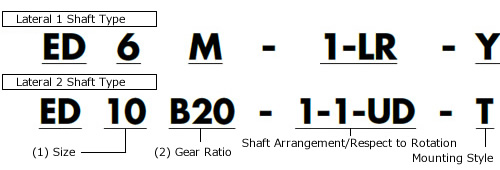

| Model | ED2M, ED4M (B) to 25M (B) (10 sizes) |
| Mounting | Y, T, K1, K2, K3, K4 |
| Gear Ratio | 1/1 (M), 1/1.5 to 1/3 (B) |
| Input | 0.014 to 335kW |
Right Angle Miter Gearbox Standard Features
Dimensions: right angle miter gear drive is 3-21/32" x 3-15/16" x 1-1/4" deep
40% glass filled polypropylene
Weight: 10 ounces
Shafts: Ground high-tensile steel. Any shaft may be used as a drive.
Gears: Hardened straight miter gears
Bearings: Hardened steel ball bearings, permanent lubrication
Mounting: Three shaft mounting positions provide versatility in application
Versatile: Three shaft connections are provided for versatility in application
RAB-1 may be operated CW, CCW or BACK driven
RAB-1 is rated at 1/3 HP at 1800 RPM. Maximum speed is 3000 RPM
Benefits and Cost Savings
Longer service life
Less wear
Greater tooth-to-tooth contact
Quieter operation
The most efficient power transfer design under rated load conditions
Custom Options
Stainless steel shaft (Please specify series stainless needed)
Longer shafts lengths on input and output
2:1 Ratio
