Maquinaria Labranza Agr cola Rastra De Discos Offset
Factory name :
Factory address :Shiliwang Industrial Park , Yucheng City , Shandong province ,China
We are a factory , we have our own workshop , now we have 4 pcs professional farm machine production line. All the disc harrow parts are made by ourselves, so we can guarantee the quality of the disc harrow , please be assures. Of course ! The price will be the lowest !
1BQX-1.5 light duty disc harrow description:
1BQX-1.5 light duty disc harrow specification :
Items | Unit | 1BQX-1.5 |
Working width | Mm | 1500 |
Working depth | Mm | 100~140 |
Diameter Of harrow disc | Mm | 460 |
No. of disc blade | Pcs | 16 |
Matched power | Hp | 15-20 |
Linkage |
| three-point mounted |
Productivity | Ha/h | 0.8 |
1BQX-1.3 Light duty disc harrow with 14pcs harrow disc blade .
1BQX-1.5 Light duty disc harrow with 16pcs harrow disc blade .
1BQX-1.5 light duty disc harrow package :
Iron case , 10 units full set packed in one iron case,the size is 2200*900*950mm .
The 20'' containter can pack 100sets .
The package picture is as follows:
1. Disc blade :made of 65Mn Spring Steel , with quenching and tempering , has 38-46hrc hardness , good toughness and wear resisting .
2. Square shaft :45# steel , with tempering , has hardness.
3. Bearing :with sealed bearing , can add the oil , so it will have long time to work .

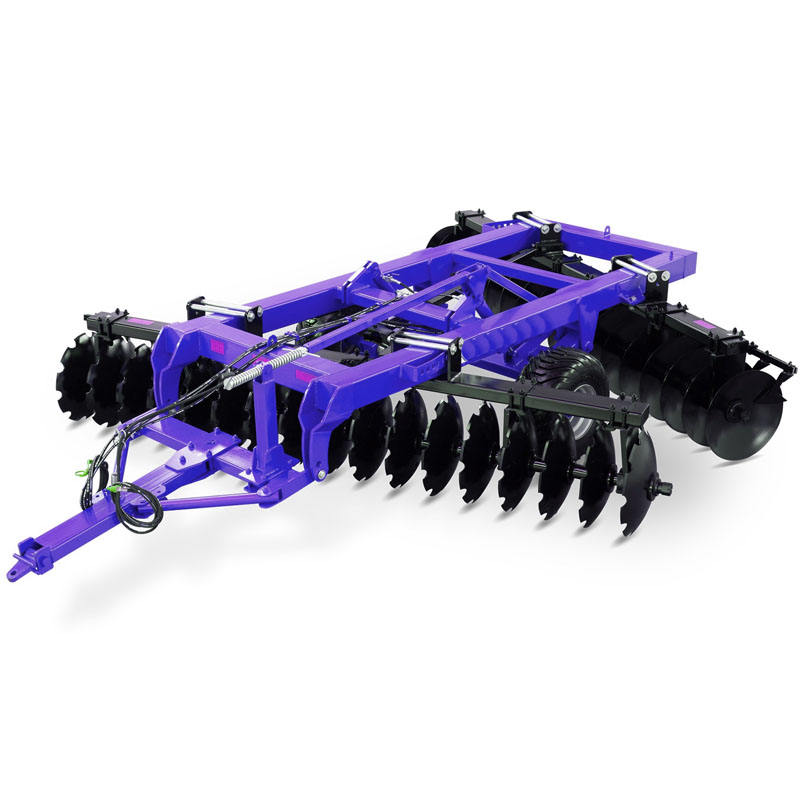

If your tarctor is big horsepower , you also can choose the hydraulic heavy duty disc harrow , looking the following picture .
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
