Hydraulic Cylinder Parts High Pressure Banjo Tee-TH-M Hydraulic Fitting

Send Inquiry

Product Description

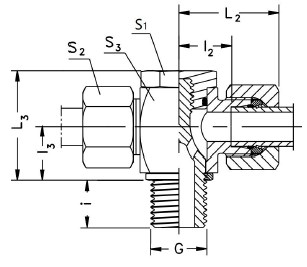

Banjo tee fittings combine the features of a banjo fitting and a tee fitting. They are used in hydraulic
systems to split or divert hydraulic flow in multiple directions while maintaining a secure and leak-free connection. Banjo tee fittings typically consist of a banjo bolt or tube with a hole through the side for fluid flow and multiple connection points in a tee shape.

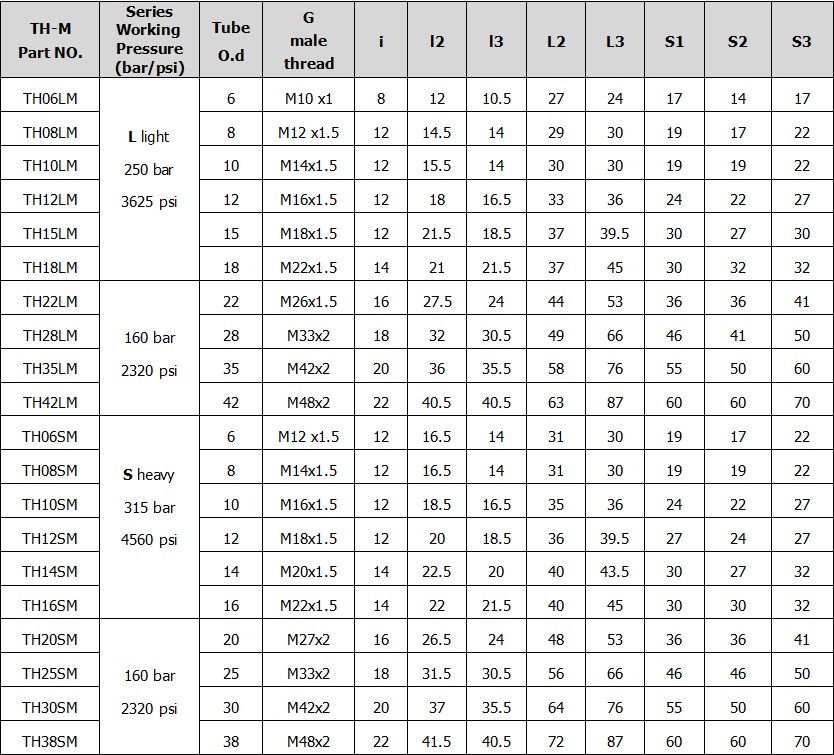

The "TH-M" designation you mentioned does not align with any standard hydraulic fitting thread or connection type that I am aware of. Hydraulic fittings often utilize thread types such as NPT (National Pipe Thread), BSP (British Standard Pipe), ORFS (O-Ring Face Seal), JIC (Joint Industry Council), or metric threads.

Some potential applications where banjo tee fittings may be used include: 1.Hydraulic Power Units: Banjo tee fittings can be used in hydraulic power units to split the hydraulic flow between different components, such as pumps, valves, cylinders, or motors. 2.Hydraulic Manifolds: Banjo tee fittings may be utilized in hydraulic manifolds to distribute hydraulic fluid to various branches or circuits within a system. 3.Hydraulic Control Systems: Banjo tee fittings can be employed in hydraulic control systems to direct fluid flow to different control valves or actuators. 4.Fluid Transfer Systems: Banjo tee fittings may be used in fluid transfer systems where fluid needs to be diverted to multiple destinations or connected to various components. It's important to note that the specific applications of hydraulic fittings, including banjo tee fittings, can vary depending on the system requirements, equipment design, and hydraulic system specifications. It is always recommended to consult the manufacturer's guidelines or seek assistance from a hydraulic expert to ensure the proper selection and application of hydraulic fittings for a specific system.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
