Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts

5D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts5D series five groove QD bushing pulley is made for D series classic v belt and D belt; They range in diameter from 12.64 inches to 58.64 inches. Depending on the pulley size, they use F, J or M QD (quick disassembly) bushings, whi......
Send Inquiry
Product Description
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts

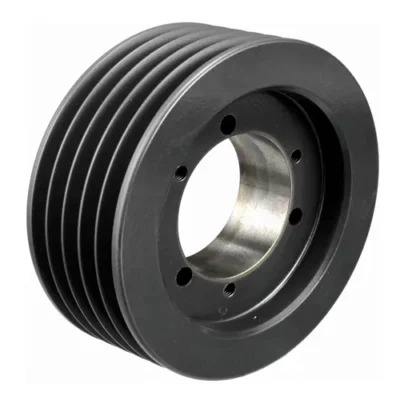

5D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts

5D series five groove QD bushing pulley is made for D series classic v belt and D belt; They range in diameter from 12.64 inches to 58.64 inches. Depending on the pulley size, they use F, J or M QD (quick disassembly) bushings, which we also have in stock. Most of our 5D QD pulleys are made of high strength grade 35 cast iron, coated with phosphate and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.
5D QD Sheave Size Chart
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
5D120F
F
A
12.0"
12.64"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
93
5D130F
F
A
13.0"
13.64"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
96
5D135F
F
A
13.5"
14.14"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
102
5D140F
F
A
14.0"
14.64"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
106
5D145F
F
A
14.5"
15.14"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
112
5D150F
F
A
15.0"
15.64"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
120
5D155F
F
A
15.5"
16.14"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
125
5D160F
F
A
16.0"
16.64"
1-23/32"
7-1/2"
3-3/4"
2-1/32"
130
5D180J
J
A
18.0"
18.64"
1-7/8"
7-1/2"
4-5/8"
1"
150
5D200J
J
A
20.0"
20.64"
1/8"
7-1/2"
4-5/8"
2-3/4"
160
5D220J
J
A
22.0"
22.64"
1/8"
7-1/2"
4-5/8"
2-3/4"
190
5D270M
M
A
27.0"
27.64"
11/32"
7-1/2"
6-3/4"
13/32"
260
5D330M
M
A
33.0"
33.64"
11/32"
7-1/2"
6-3/4"
13/32"
320
5D400M
M
A
40.0"
40.64"
11/32"
7-1/2"
6-3/4"
13/32"
390
5D480M
M
A
48.0"
48.64"
11/32"
7-1/2"
6-3/4"
13/32"
450
5D580M
M
A
58.0"
58.64"
11/32"
7-1/2"
6-3/4"
13/32"
500
Relevant supporting D-series and D-series V-belt (1) D series V-belt Classic D-series V-belts have a top width of 1.25 inches, a thickness of 0.75 inches, and an angle of 40 °. In addition, the D V belt is one of the oldest V-belt types in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality D-series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability.
(2) D series ribbon V-belt D series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of D-series v-belt is 1-1/4 ".

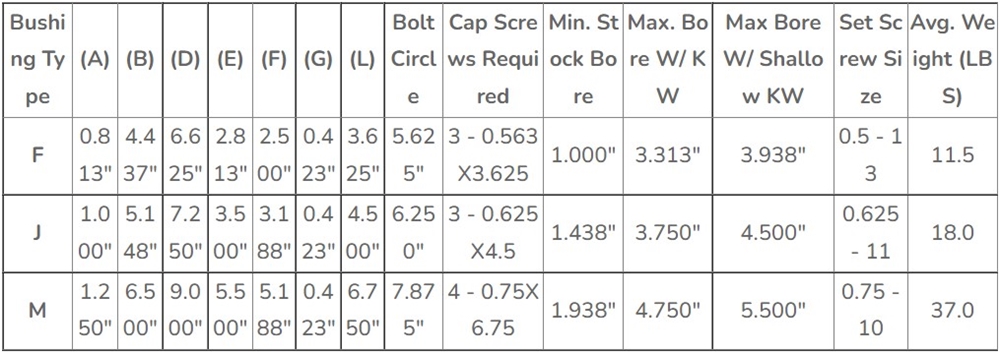

Relevant QD sleeve | quick disconnect sleeve QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings upon request.
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts
How do I measure the V-pulley? In the power transmission and automotive industry, one of the most widely used and growing product types is V-belt pulley, also known as "pulley". V-belt pulley is an accessory that transfers energy between axles by means of V-belt. However, in order to maintain the normal operation of this crucial equipment, when the old pulley is worn, it must be ensured that a suitable v-shaped pulley is replaced. To do this, you need to know the size, size and type of the V-pulley so that the replacement pulley can work properly. It is a simple task to learn to measure the size of V-belt pulley and calculate its size; However, correctly identifying the V-pulley type can be complex. V-pulleys are available in a variety of styles and options, including A, B, C, D, 3V, 5V, 8V, variable pitch, double groove, and metric pulleys. We only stock more than 8000 different V-pulleys.
Inspection knowledge of pulley belt and belt First, check the tension of the pulley belt. At this time, you can press the belt between the two pulleys with your thumb. The pressure is about 10kg. If the necessary amount of the belt is about 10mm, the belt tension is considered appropriate. If the decrease is too large, the belt pressure is considered insufficient. If the belt is hardly reduced, the belt tension is considered too high. When the stress is low, the spa pulley and belt are easy to slip. When the tension is too large, it is easy to damage the bearings of various auxiliary machines. To do this, loosen the relevant adjusting nut or bolt to adjust the belt tension to the best condition. The old belt is seriously worn, so the contact area between the belt and the pulley is sharply reduced. At this time, as long as the belt is pressed hard, the pulley will be deeply immersed in the groove of the pulley. The rubber of the belt is also aging. If the belt rubber is seriously aged, a new belt must be replaced in time.
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts
Hot Selling 5D Series Cast Iron American Standard QD Bushing Sheaves Pulley Special Customizable OEM V-Belt for D Belts
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
