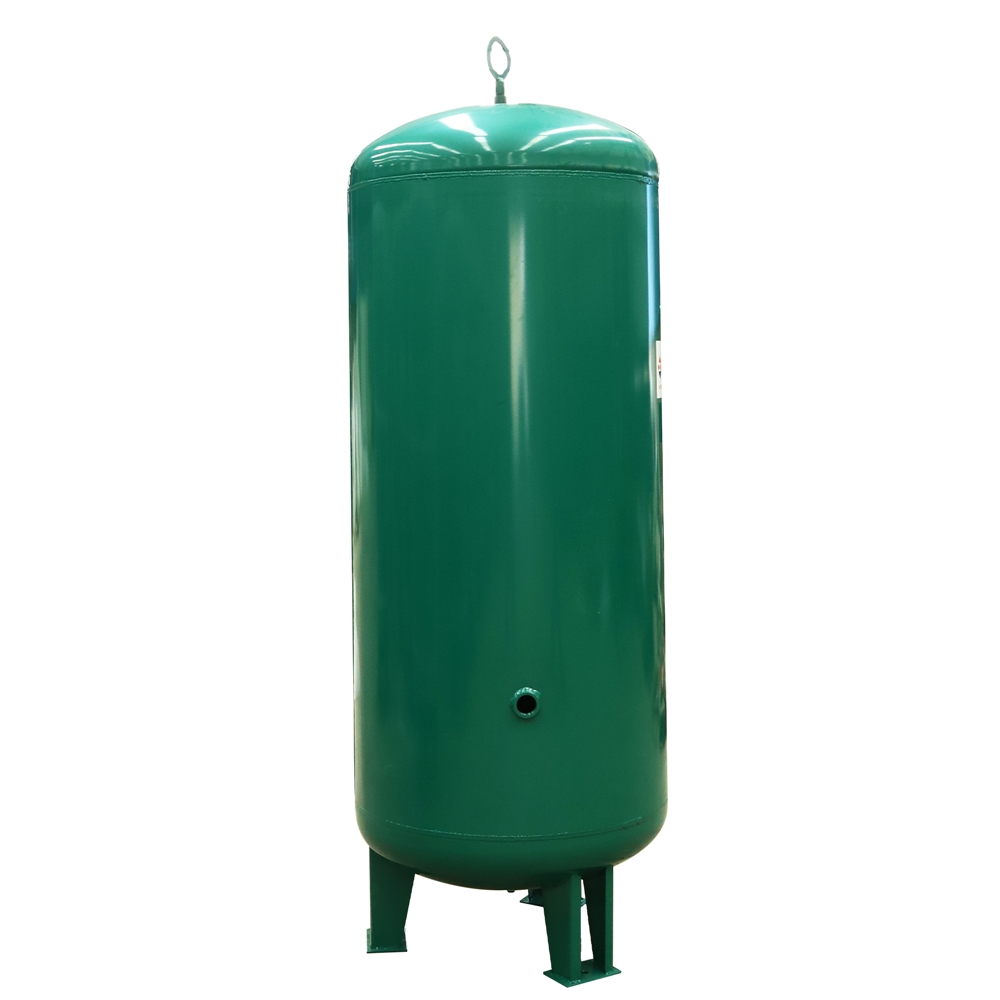

High Quality Carbon Steel or Stainless Steel Vertical Compressed Air Receiver Tank for Rotary Screw Type Air Compressor
Air Receiver TankThe function of the air receiver tank: * Energy Storage * Steady Pressure * Mitigating the impact of pulse on gas-using equipment * Sedimentation of water, oil, and dust in the air * Improving the continuity and Stability * Reduce the frequent start-up of the compressorThe Function ......
The function of the air receiver tank: * Energy Storage * Steady Pressure * Mitigating the impact of pulse on gas-using equipment * Sedimentation of water, oil, and dust in the air * Improving the continuity and Stability * Reduce the frequent start-up of the compressor
The Function of Air Tank
There are many parts of an air compressor – and air tank is one of the most significant ones. An air receiver is similar to a pressure vessel. Its function is to hold the compressed air under pressure and store it for future use. You can use this compressed air later for any use without the need of running your air compressor.
The function of an air receiver can easily be understood by its name. Its purpose is to collect and carry the compressed air until it is used for a task. This way, you can use the compressed air whenever you want without running your air compressor. You can find a range of air receiver tanks in different sizes and in vertical as well as horizontal configurations.
The purpose of an air tank is to collect and store the compressed air for future high-demand events. It will help your system operate more constructively. The three main functions purposed by air tanks are: * It stocks compressed air used for short and high-demand events. * Provides a subtle air signal to the compressor controls. * It plays the role of a heat exchanger is used as a wet tank
To further explain these purposes: 1. Air Storage The principle of an air receiver tank is to store compressed air in it. This will help your system have compressed air at every time even if the compressor is running. This compressed air will help power events that go up to 30 seconds or so. This stored compressed air decreases the sudden demand for your air compressor. The use of an air receiver tank will allow you to use a small horsepower compressor for comparatively greater jobs.
2. Compressor Control A steady signal is sent from the air receiver tank to the compressor controls. It provides a subtle stream of air that is used to compress and eliminate over-pressurization and short-cycling. An uneven demand is created due to the consumption of uneven compressed air. At this point, the air compressor starts to rapidly turn on and off in order to fulfill its moment-by-moment demand. The role of an air tank is to eliminate short cycles and provide a more consistent pressure system.
3. Heat Exchanger This can be easily understood by the Pressure-Temperature Law. The air discharged from the compressor is usually hot, depending upon the type of compressor you are using, it may be as hot as 250 – 350 degrees Fahrenheit. This is too hot for the air inside the compressor and may cause vapors inside. This condensed air should be cooled before it is used further.
A heat exchanger will remove the heat caused by compression. An air receiver tank works as a heat exchanger as it cools down the compressed air.
An operating mechanism creates and stores the energy to operate a circuit breaker. Compressed air becomes the energy source for the Pneumatic operated mechanism for closing and tripping the hi-voltage circuit breakers. These pneumatic circuit breakers are called “Air Blast Circuit Breakers.”
The air compressor stores the compressed air in the storage tank (air receiver). When needed, it is blasted into the arc extinction chamber. This pushes away the moving contact. As a result, the connections are pulled apart, and the air blast moves the ionized gas away along with it and supports the arc extinction.
Series
Air Pressure
Air Capacity
High Pressure Series
13~40 bar
4.5~20.0 m3/min
Regular Series
7~10 bar
1.0~40.0 m3/min
Low Pressure Series
2~5 bar
3.0~60.0 m3/min
Two-stage Energy-saving Series
8~10 bar
20.0~60.0 m3/min
7~10 bar Series
2~5 bar Series
Two-stage Energy-saving Series
Diesel&Electric Portable Series
12~16 bar 4-in-1 Series
1 Phase Small Screw Series
16~40 bar Oil-free Screw Type
7~10 bar Oil-free Screw Type
2~5 bar Oil-free Screw Type
2-stage Oil-free Screw Type
8~12 bar Oil-free Scroll Type
8~12 bar Oil-free Scroll Air-end
View More
What we can supply:

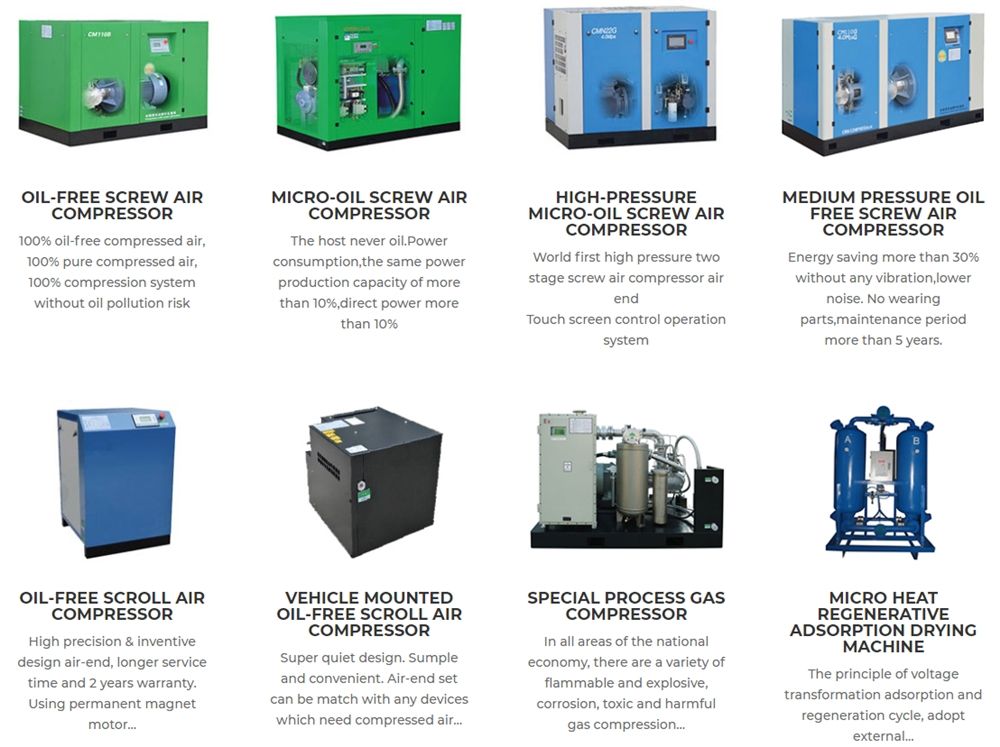

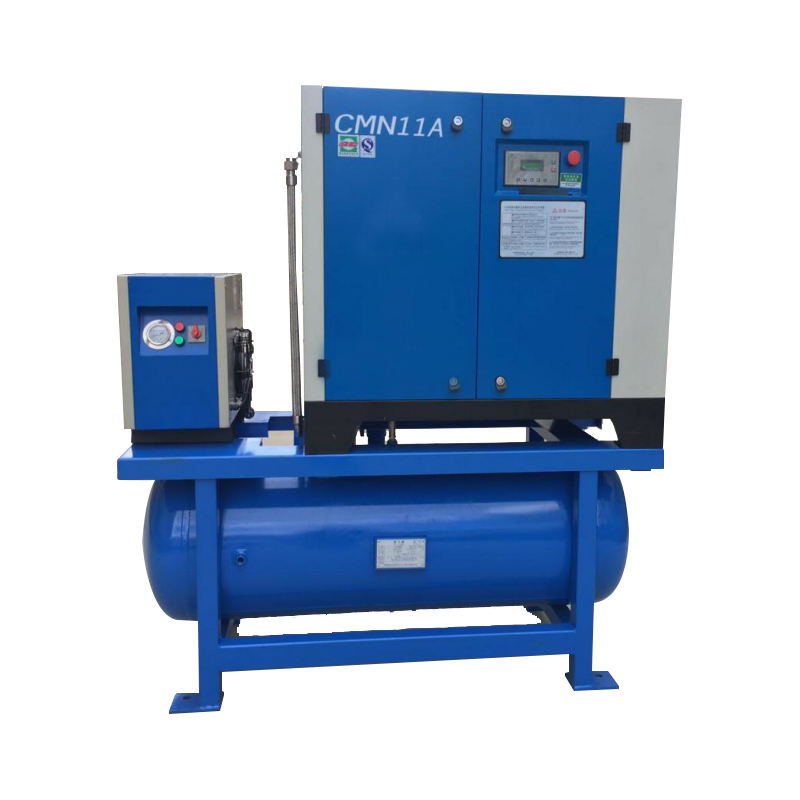

* Oil-injected Screw Air Compressor (2~16 bar) * All-in-one Screw Air Compressor with Tank, Dryer, and Filters (7~16 bar) * Single-phase Small Screw Air Compressor for Home use (8~10 bar) * Water-injected Oil-free Screw Air Compressor (2~40 bar) * Oil-free Scroll Air Compressor (8~12 bar) * Diesel&Electric Engine Portable Screw Air Compressor (8~30 bar) * Air Dryer, Air tank, Filters, and other Spare parts
