High-precision transmission
Wide-band response
Low drift
Low power consumption
Strong anti-interference ability

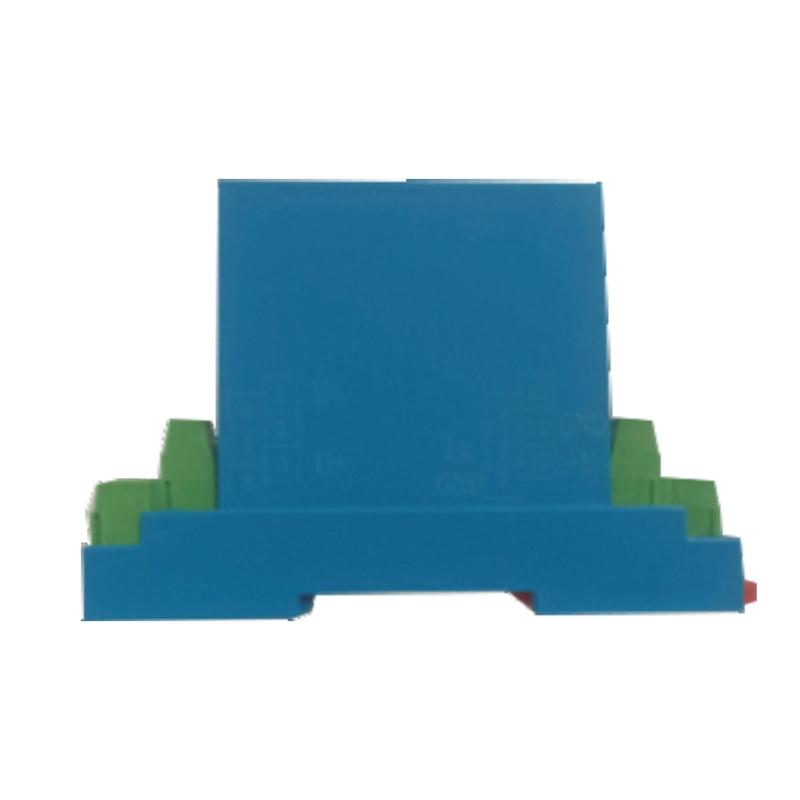

Model | SVGD50P | -SVGD100P | SVGD200P | SVGD300P | |||
Primary rated input current | 0~±50V | 0~±100V | 0~±200V | 0~±300V | |||
Allows over-input | 2 times nominal voltage input, lasting 1s, interval 10ns, repeated 10 times | ||||||
Output | 0~20mA,4~20mA,0~5V,0~10V | ||||||
Working power supply | +12V,+15V,+24V | ||||||
Accuracy | ≤0.5% | ||||||
Quiescent current | ≤15mA | ||||||
Output ripple | ≤10mV | ||||||
Temperature drift | 200×10 /℃ | ||||||
Response time | ≤200ms | ||||||
Load resistance | Voltage output ≥ 2kΩ, current output ≤ 250Ω | ||||||
Working temperature | -40℃~85℃ | ||||||
Storage temperature |
-40℃~90℃
| ||||||
Isolation withstand voltage | 3kV/50Hz/1min×1mA | ||||||

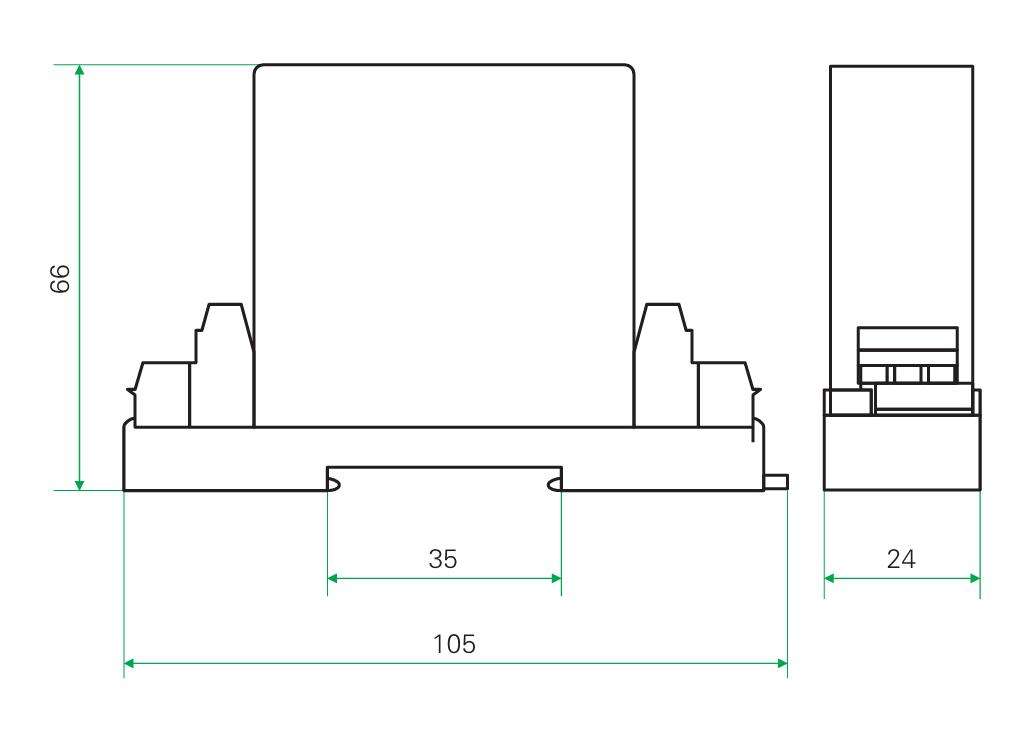

Install | Card-mounted track installation, terminal wiring | ||||||
