H Class H60-K1 H78-K1 Mill Chain with K1 Attachment for Transmission Chains

Send Inquiry

Product Description

Ever-power "H" Class Mill Chain is an ex- tremely strong, serviceable chain originally de- signed for heavy drives and transfer conveyor purposes in saw mills and the paper and pulp industry. "H" Class Chain has proven itself for innumerable other industrial applications as well, especially for moderate duty in abrasive atmospheres where heavy, rugged chain is re- quired. The sidebars of the "H" Class links are rein- forced with wearing shoes which strengthen and stiffen the links when it is operated in troughs or over floors and runways.

Pin holes are precision cored to assure accu- rate pitch sizes, which range from 2.308 to 4.000 inches. "H" Class Chain is available in both riveted and cottered construction. T-head pins engage two lugs cast on the links' side- bars. This configuration prohibits pin rotation during chain operation, eliminating abrasive wear and pitch elongation.

Ever-power "H" Class Chain conforms to manufacturer's standards and is completely in- terchangeable with chains of other manufactur- ers. "H" Class Chain is available in Allied-Locke Promal with tensile ranges of 9,450 to 40,500 pounds.

"H" Class Chain may operate in two direc- tions. As a drive chain, it travels in the direction of the closed barrel; for elevator or conveyor applications, it should travel toward the open ends of the links.

Brutaloy or cast steel sprockets are available to accommodate every "H" Class pitch size. A wide assortment of attachments is also avail- able for varied chain applications.

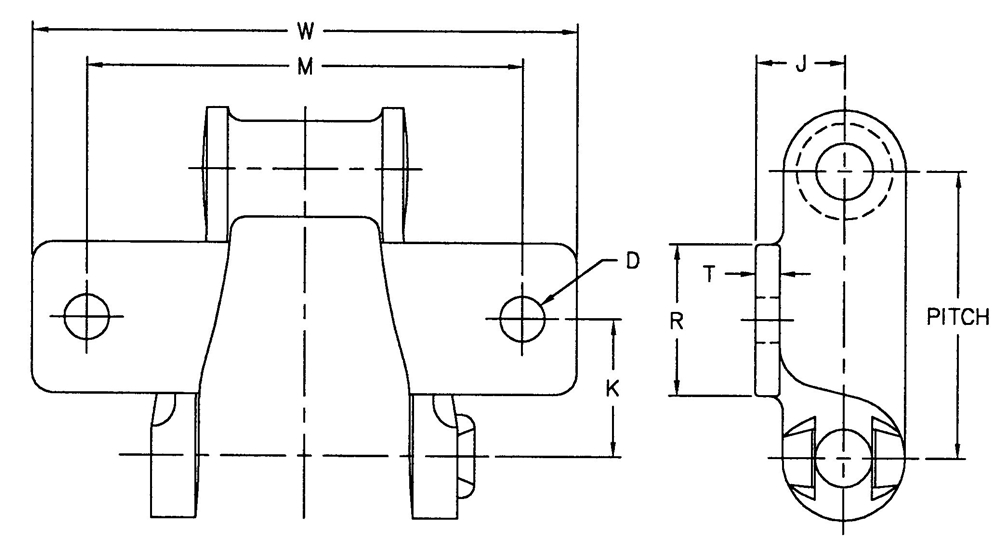

MOLINE ATTACHMENT NO.	DIMENSIONS IN DECIMAL INCHES
		PITCH	D			J	K	M	R	T	W
		PITCH		BOLT DIAMETER	HOLE DIAMETER
H 60-K1	2.308	0.31	0.34	0.75	1.06	3.00	1.12	0.19	4.00
H 78-K1	2.609	0.38	0.41	0.81	1.25	4.00	1.38	0.22	5.00

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
